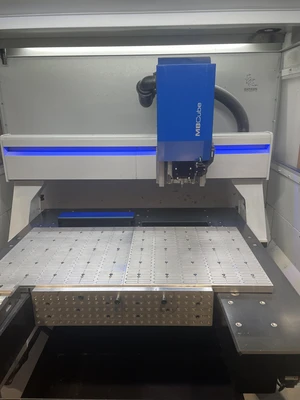

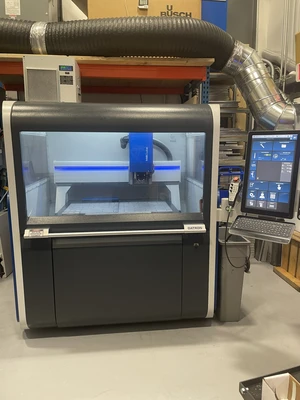

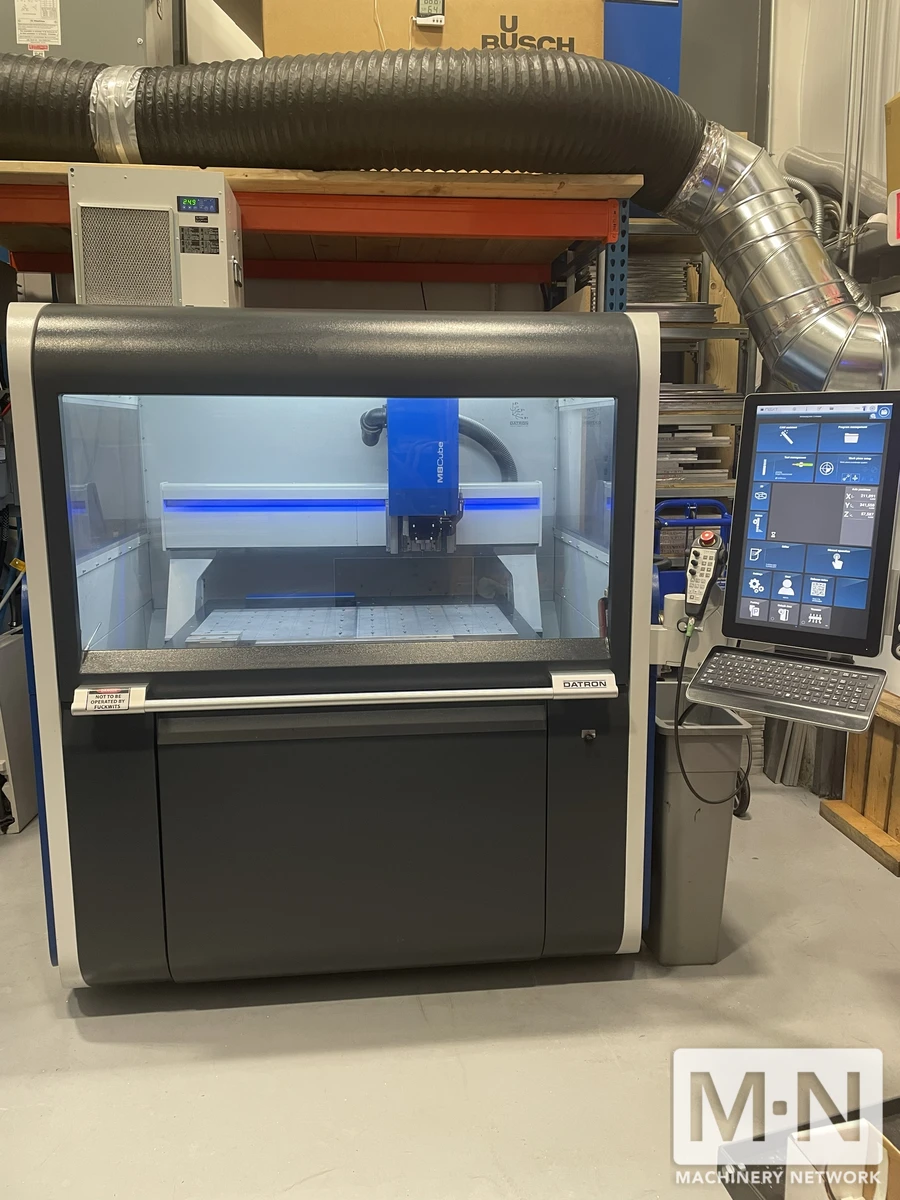

Datron M8 Cube CNC Vertical Machining Center, 2021
ConditionUsed
1 available
DATRON next CNC Control
High Precision 3D Touch Probe (.01mm/.0004" accuracy)
Next control operating software
Polymeric concrete table w/ cut-out for vertical clamping
Standard 6mm collet with optional sizes up to 8mm max.
15-tool automatic tool changer unit w/ tool length sensor
Conical centers for quick, repeatable mounting of jobs
Integrated air & vacuum ports to mount fixtures quickly
Ergonomic side terminal for easy machine operation
Handheld remote control with machine override functions
Machine status indicated by LED lights within the gantry

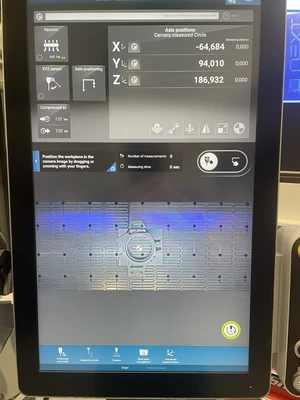

Integrated camera setup system

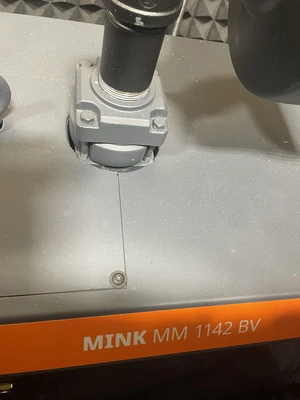

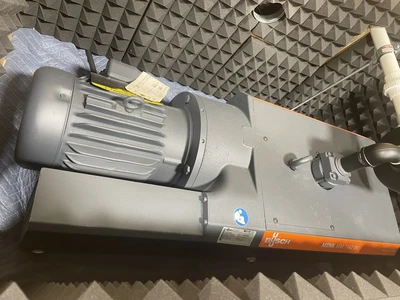

2024 Busch MINK MM 1142 BV vacuum pump
Spray Mist (Alcohol or Oil) Cooling System

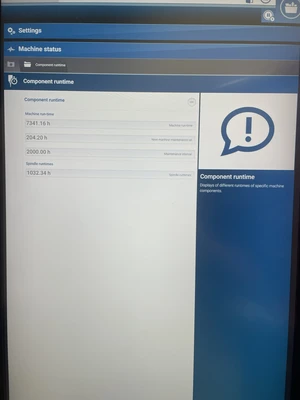

Only 1,032 spindle runtime hours
7,300 total machine runtime hours
Integrated camera system
Includes 2024 Busch MINK MM 1142 BV vacuum pump
All maintenance performed by authorized DATRON service technicians
Precision machining of plastics, aluminum, composites, and other materials
Imperial
| X Axis Travel | 40" |
| Y Axis Travel | 33" |
| Z Axis Travel | 10" |
| Cutting Feed Rate | 866 in/min |
| Spindle Motor | 2.7 hp |
| Spindle Speed | 60,000 RPM |
| ATC Capacity | 15 |
| Dimensions | 69” x 69” x 77” |
| Weight | 2,866 Lbs |
DATRON next CNC Control
High Precision 3D Touch Probe (.01mm/.0004" accuracy)
Next control operating software
Polymeric concrete table w/ cut-out for vertical clamping
Standard 6mm collet with optional sizes up to 8mm max.
15-tool automatic tool changer unit w/ tool length sensor
Conical centers for quick, repeatable mounting of jobs
Integrated air & vacuum ports to mount fixtures quickly
Ergonomic side terminal for easy machine operation
Handheld remote control with machine override functions
Machine status indicated by LED lights within the gantry
Integrated camera setup system
2024 Busch MINK MM 1142 BV vacuum pump
Spray Mist (Alcohol or Oil) Cooling System
Only 1,032 spindle runtime hours
7,300 total machine runtime hours
Integrated camera system
Includes 2024 Busch MINK MM 1142 BV vacuum pump
All maintenance performed by authorized DATRON service technicians
Precision machining of plastics, aluminum, composites, and other materials
