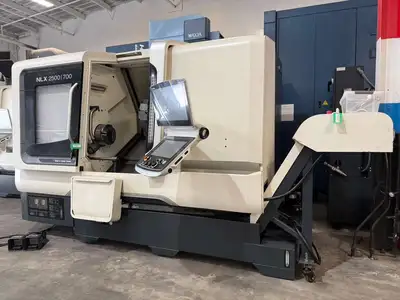

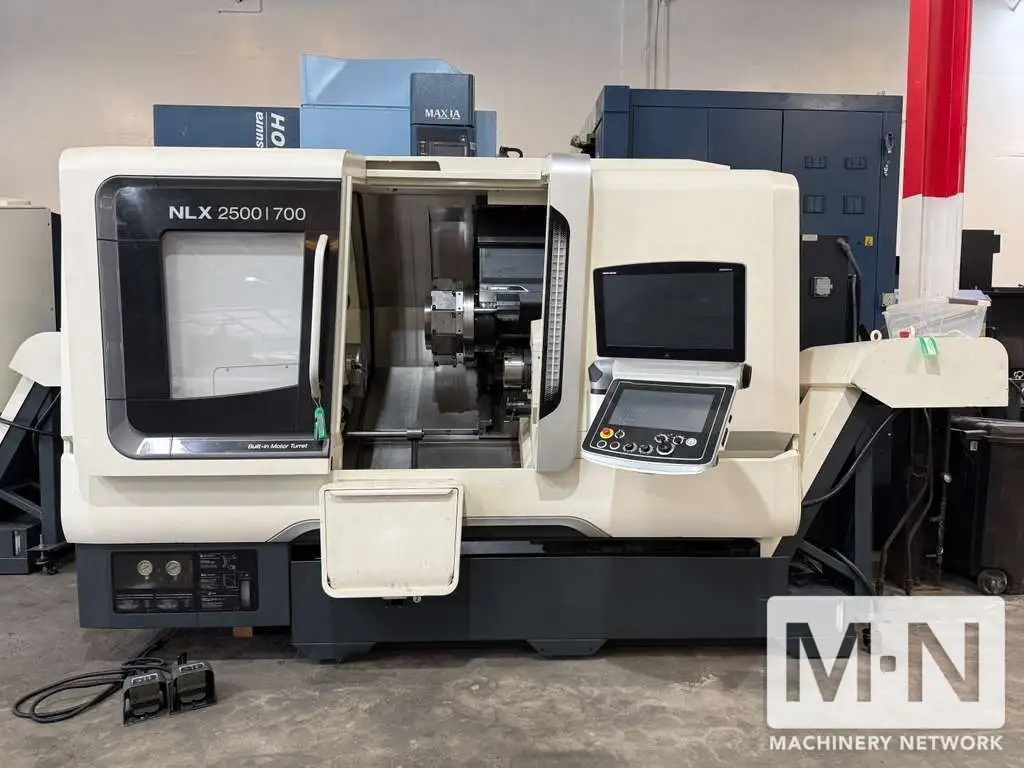

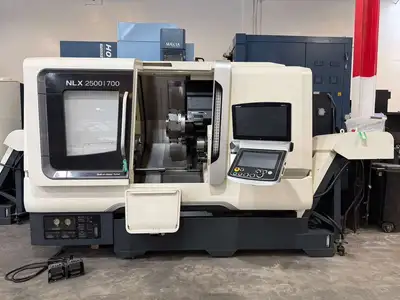

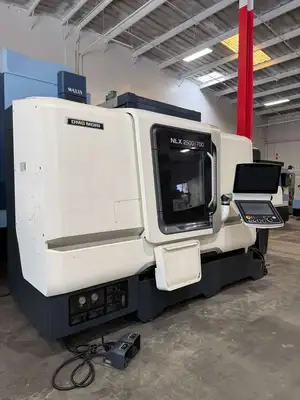

DMG Mori NLX-2500SY/700 CNC Lathe, 2019 w/ Sub Spindle & Y-Axis
ConditionUsed
1 available

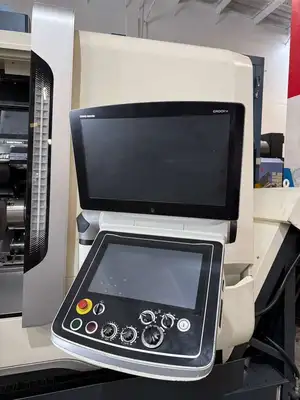

M730UM with CELOS – ERGOline Touch CNC Control

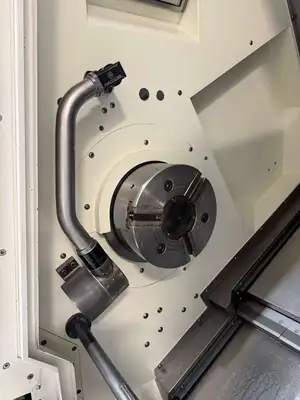

10 inch 3-Jaw Kitagawa BB210 Chuck on Main Spindle

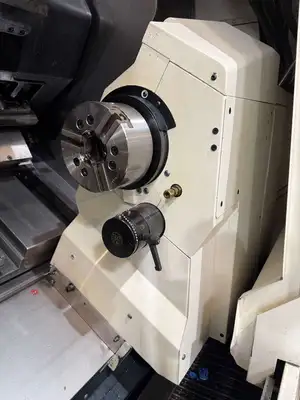

8 inch 3-Jaw Kitagawa B208 Chuck on Sub Spindle
Sub Spindle
Sub Spindle Ejector
Servo Controlled C-Axis on Both Spindles

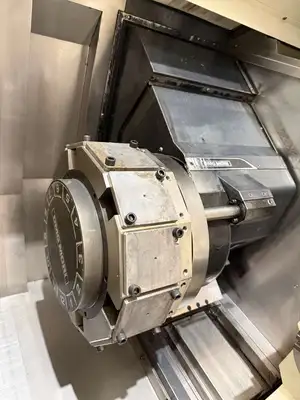

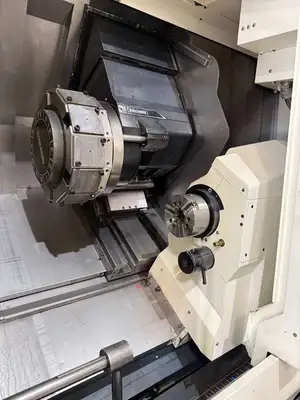

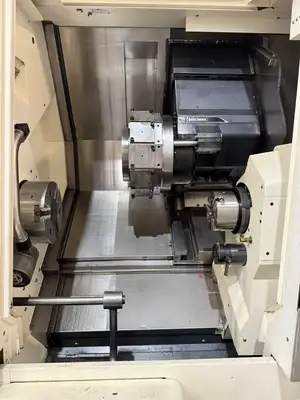

12-Station Live Tool Turret – BMT
Y-Axis on Turret
Tool Presetter
Parts Catcher
High-Pressure Coolant
LNS Chip Blaster

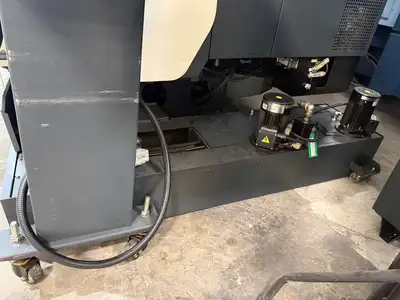

Coolant Tank
Chip Conveyor
Books & Manuals

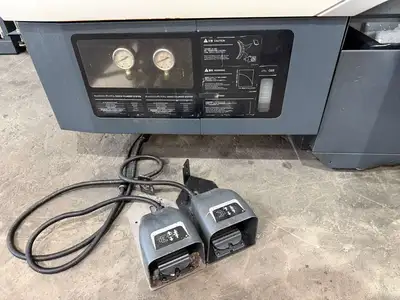

Foot Switch
Imperial
| Swing | 36.2" |
| Max. Turning Length | 27.7" |
| Max. Turning Diameter | 14.4" |
| X-Axis | 10.2" |
| Y-Axis | 3.9" (±1.95") |
| Z-Axis | 31.2" |
| B-Axis | 28.8" |
| C-Axis | 360° |
| Rapid Traverse X-Axis | 1181 ipm |
| Rapid Traverse Y-Axis | 393 ipm |
| Rapid Traverse Z-Axis | 1181 ipm |
| Rapid Traverse B-Axis | 1181 ipm |
| Chuck Size | 10" |
| Bar Capacity | 3.1" |
| Spindle Bore | 3.58 in |
| Spindle Nose | A2-8 |
| Power | 25 hp |
| Max RPM | 4,000 RPM |
| Turret Stations | 12 |
| Live Tooling | Yes |
| Live Milling Power | 7.5 hp |
| Live Milling Max RPM | 10000 rpm |
| Sub Spindle | Yes |
| Sub Spindle Power | 15 hp |
| Sub Spindle Max RPM | 6000 rpm |
| Sub Spindle Chuck | 8 in |
| Sub Spindle Bore | 2.8 in |
| Sub Spindle Nose | A2-5 |
| Dimensions | 156.7" × 82.9" × 86.6" |
| Weight | 13,992 Lbs |
M730UM with CELOS – ERGOline Touch CNC Control
10 inch 3-Jaw Kitagawa BB210 Chuck on Main Spindle
8 inch 3-Jaw Kitagawa B208 Chuck on Sub Spindle
Sub Spindle
Sub Spindle Ejector
Servo Controlled C-Axis on Both Spindles
12-Station Live Tool Turret – BMT
Y-Axis on Turret
Tool Presetter
Parts Catcher
High-Pressure Coolant
LNS Chip Blaster
Coolant Tank
Chip Conveyor
Books & Manuals
Foot Switch
