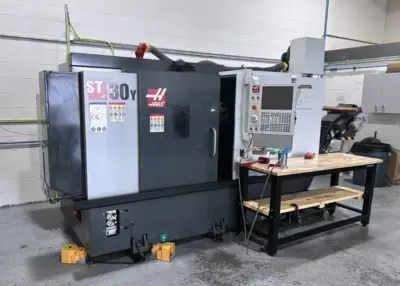

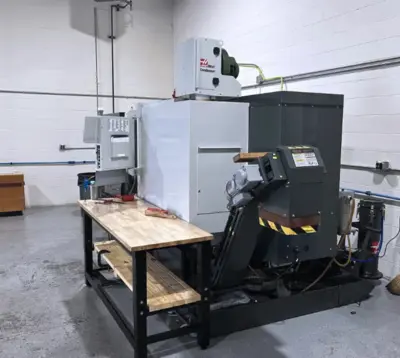

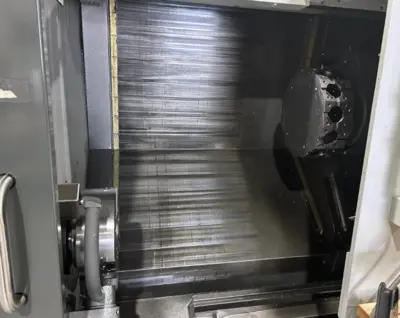

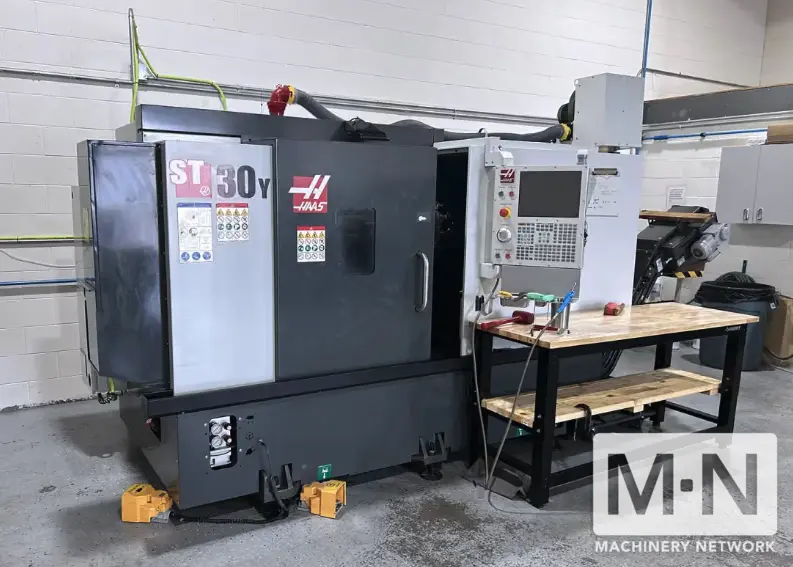

HAAS ST-30Y CNC Lathe, 2022
ConditionUsed
1 available

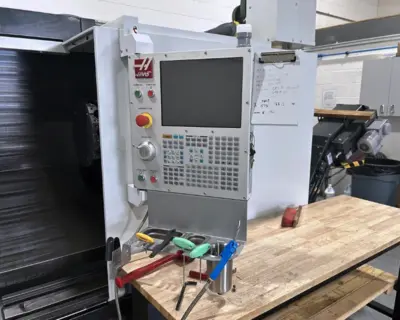

HAAS CNC Control
Y-Axis
Full C-Axis
Live Tooling
High Pressure Coolant System (55 Gallon Cap.)
Rigid Tapping
Chip Conveyor
220V / 3 Phase / 50-60 Hz
Imperial
| Swing | 21" |
| Machining Length | 32.5" |
| Max. Turning Diameter | 13.75" |
| X-Axis | 9.4" |
| Y-Axis | ± 2.00" |
| Z-Axis | 32.5" |
| C-Axis | ± 0.01° |
| Rapid Traverse X-Axis | 472 ipm |
| Rapid Traverse Y-Axis | 472 ipm |
| Rapid Traverse Z-Axis | 945 ipm |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Spindle Bore | 3.5 in |
| Spindle Nose | A2-6 |
| Power | 30 hp |
| Max RPM | 3,400 RPM |
| Turret Stations | 12-Station BMT65 |
| Tailstock | No |
| Live Tooling | Yes |
| Live Milling Max RPM | 4000 rpm |
| Weight | 11,340 Lbs |
HAAS CNC Control
Y-Axis
Full C-Axis
Live Tooling
High Pressure Coolant System (55 Gallon Cap.)
Rigid Tapping
Chip Conveyor
220V / 3 Phase / 50-60 Hz
