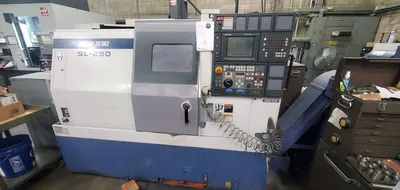

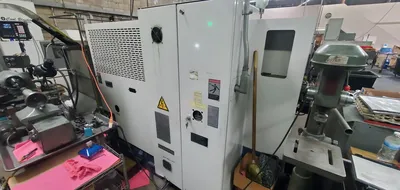

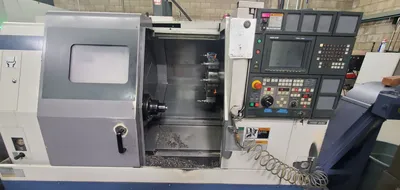

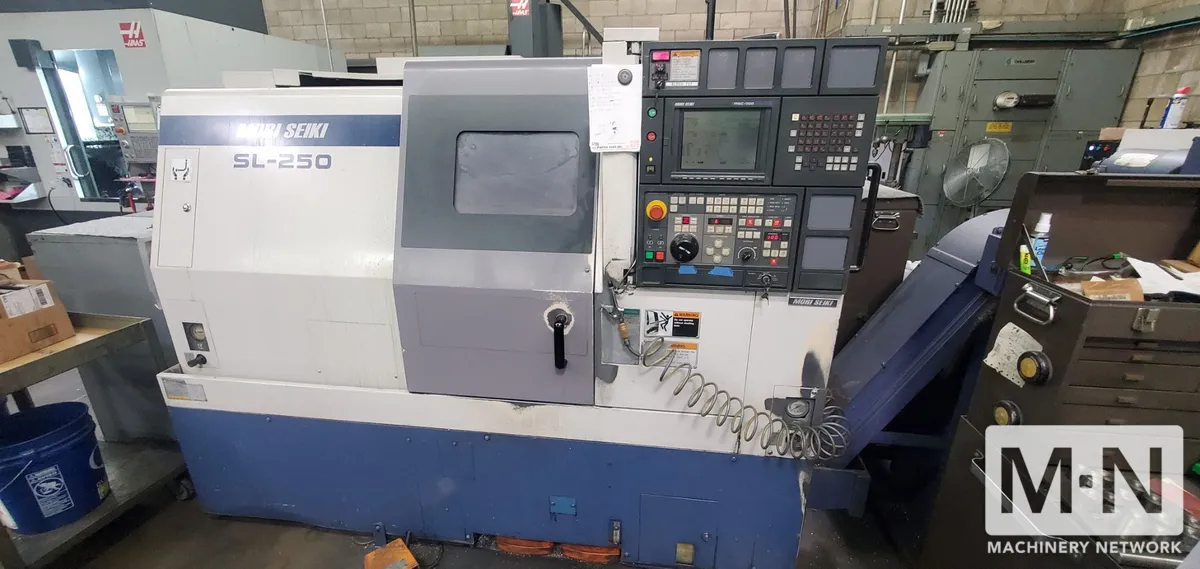

Mori Seiki SL-250B CNC Lathe, 1998
ConditionUsed
1 available
Mori Seiki MSC-500 CNC Control
Chip Conveyor
Tailstock

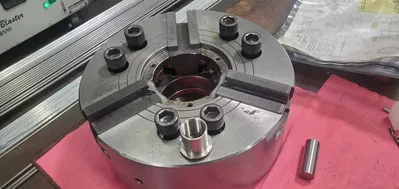

*Included is the ACS 16C collet adapter and a 10" Kitagawa Chuck
Imperial
| Swing | 26.77" |
| Machining Length | 19.09" |
| Max. Turning Length | 19.09" |
| Max. Turning Diameter | 11.792" |
| Center Distance | 22.64" |
| Distance Between Centers | 22.64" |
| X-Axis | 9.25" |
| Z-Axis | 20.47" |
| Rapid Traverse X-Axis | 708.66 ipm |
| Rapid Traverse Z-Axis | 944.88 ipm |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 2.87" |
| Spindle Bore | 3.39 in |
| Spindle Nose | JIS A2-8 |
| Power | 24 hp |
| Max RPM | 35 RPM |
| Spindle Speed Left Head | 3,500 RPM |
| Turret Stations | 10 |
| Tool Size | 0.98 |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |

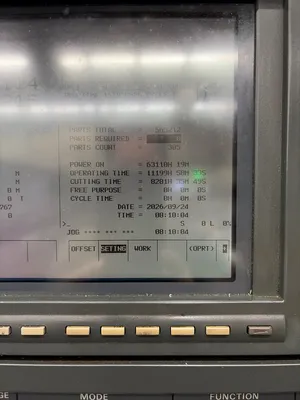

| Cut Hours | 8,281 hr. |
| Dimensions | 16.4 x 8.2 x 8.2 |
| Weight | 9921 |
Mori Seiki MSC-500 CNC Control
Chip Conveyor
Tailstock
*Included is the ACS 16C collet adapter and a 10" Kitagawa Chuck
