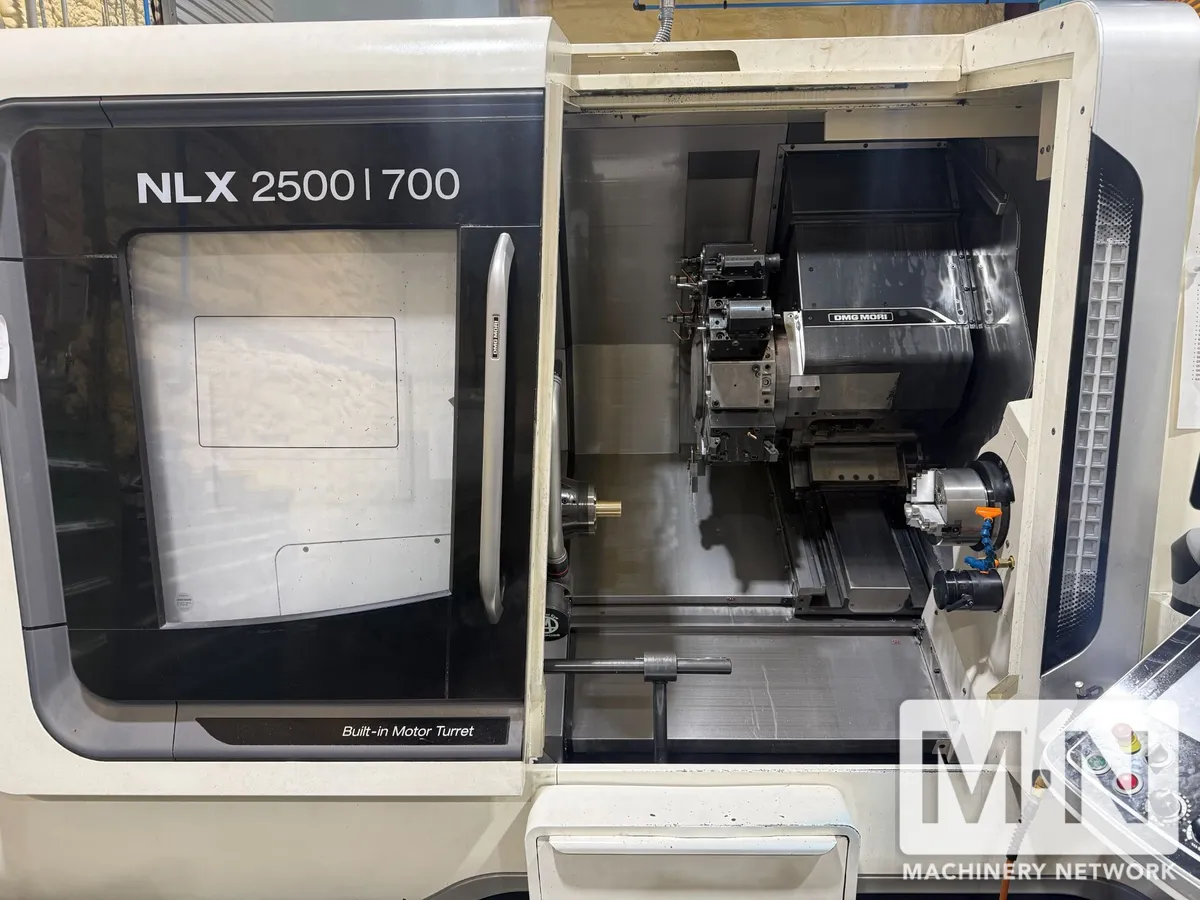

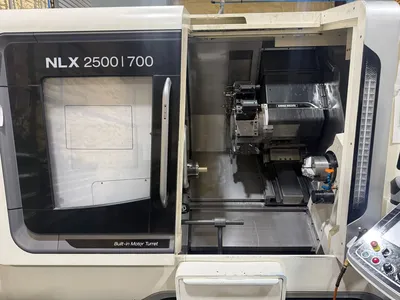

Used 2017 DMG MORI NLX2500SY/700 | CNC Lathes
ConditionUsed
1 available
Imperial
| Swing | 36.2" |
| Machining Length | 27.7" |
| Max. Turning Length | 27.7" |
| Max. Turning Diameter | 14" |
| Center Distance | 37.8" |
| Distance Between Centers | 37.8" |
| X-Axis | 10.2" |
| Y-Axis | ±2.0 |
| Z-Axis | 31.3" |
| B-Axis | 28.9 |
| C-Axis | 0.001 |
| Rapid Traverse X-Axis | 1181.1 ipm |
| Rapid Traverse Y-Axis | 393.7 ipm |
| Rapid Traverse Z-Axis | 1181.1 ipm |
| Rapid Traverse B-Axis | 1181.0 |
| # Axis | 6 |
| Chuck Size | 10" |
| Chuck Size Right | 6 |
| Bar Capacity Left Head | 3.15 |
| Bar Capacity Right Head | 1.69 |
| Bar Capacity | 3" |
| Spindle Bore | 3.58 in |
| Spindle Nose | A2-8 |
| Power | 20 hp |
| Max RPM | 6,000 RPM |
| Spindle Speed Left Head | 4,000 RPM |
| Spindle Speed Right Head | 6,000 RPM |

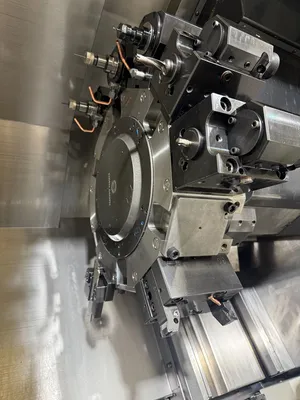

| Turret Stations | 12 |
| Tool Size | 1 x 1 |
| Tailstock | No |
| Live Tooling | Yes |
| Live Milling Power | 7.5 hp |
| Live Milling Max RPM | 10000 rpm |
| Sub Spindle | Yes |
| Sub Spindle Power | 15 hp |
| Sub Spindle Max RPM | 6000 rpm |

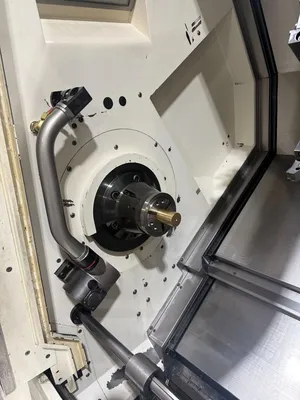

| Sub Spindle Chuck | 6 in |
| Sub Spindle Bar Capacity | 1.6 |
| Sub Spindle Bore | 1.6 |
| Sub Spindle Nose | A2-5 |

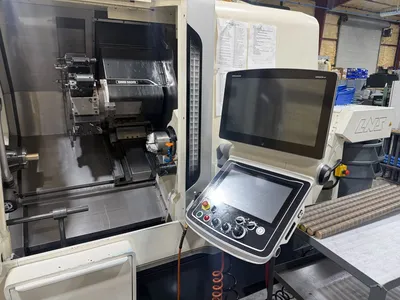

| Control | CNC |
| Dimensions | 157 x 83 x 87 |
| Weight | 14000 |
