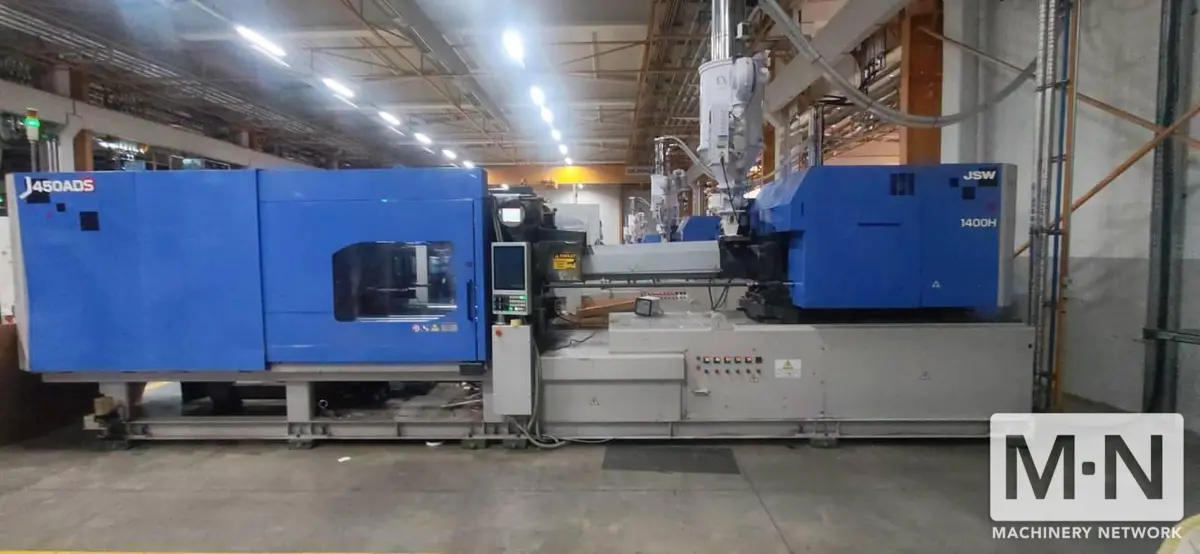

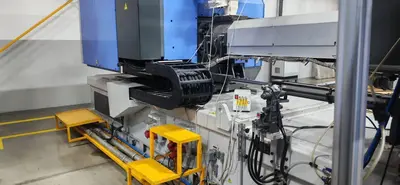

500 TON 43.6 OZ JSW MODEL J450-ADS-1400/HS10 HIGH SPEED INJECTION MOLDING MACHINE MFG 2017/2016
ConditionUsed
1 available
500 TON 43.6 OZ JSW MODEL J450-ADS-1400/HS10 HIGH SPEED INJECTION MOLDING MACHINE MFG 2017/2016
** THERE ARE SEVERAL OF THESE MACHINES AND THE SHOT SIZES VARY FROM 53.3 OZ , 43,.3 OZ OR 32.9 OZ .
THEY ARE AVAILABLE IN EUROPE- CALL FOR DETAILS
500 TON 43.6 OZ JSW MODEL J450-ADS-1400/HS10 HIGH SPEED INJECTION MOLDING MACHINE MFG 2017/2016
Imperial
| TONNAGE | 500 T |
| SHOT SIZE | 43.6 oz |
| SCREW DIAMETER | 76 |
| PLATEN DIMENSIONS | 47.6" X 47.6" |
| TIE BAR SPACING | 31.8" X 31.8" |
| CLAMP STROKE | 31.5" |
| DAYLIGHT MIN/MAX | 62.9" |
| MIN/MAX MOLD HEIGHT | 13.7"-31.4" |
** THERE ARE SEVERAL OF THESE MACHINES AND THE SHOT SIZES VARY FROM 53.3 OZ , 43,.3 OZ OR 32.9 OZ .
THEY ARE AVAILABLE IN EUROPE- CALL FOR DETAILS
