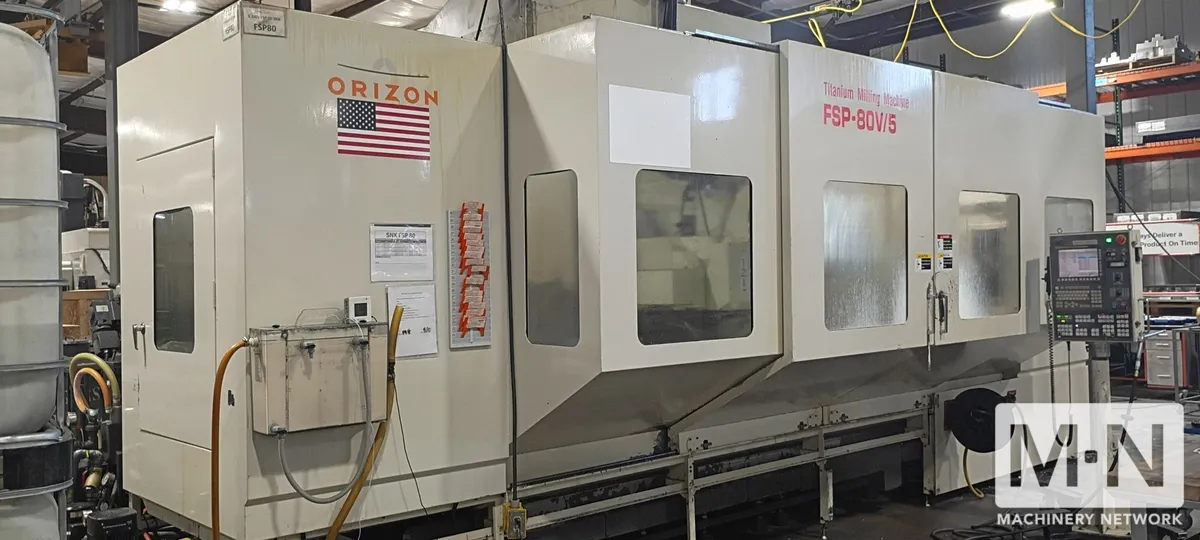

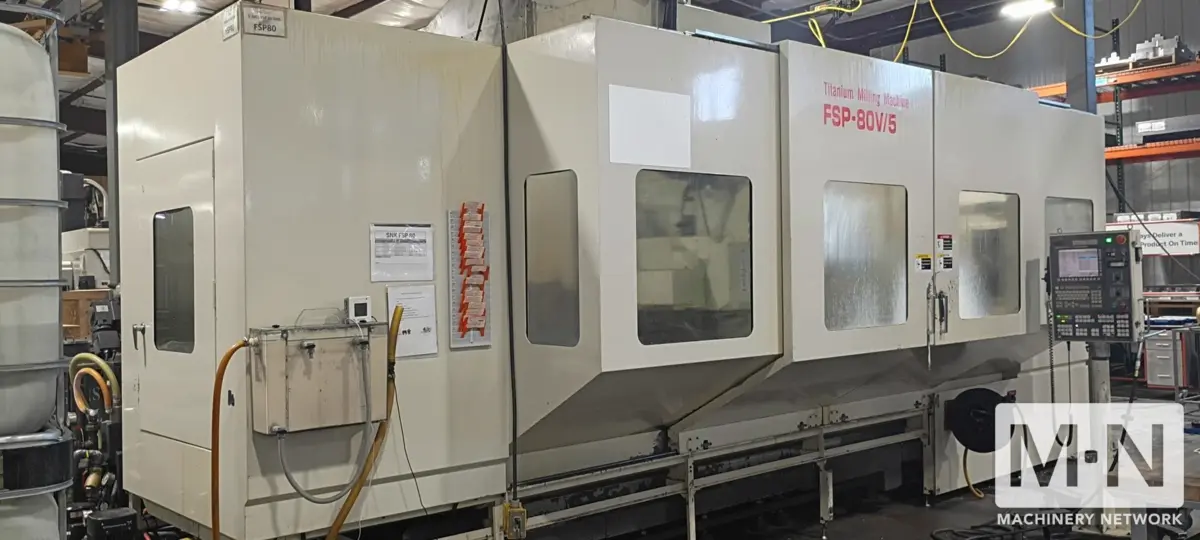

SNK FSP-80V CNC 5-Axis Vertical Machining Center, 2011
ConditionUsed
1 available
Rapid Traverse
X & Y-Axis 20 m/min
787.4 ipm
Z-Axis 10 m/min
393.7 ipm
A & B-Axis 1,000 dpm
Feedrate
X & Y-Axis 0 to 10,000 mm/min
(0 to 393.7 ipm)
Z-Axis 0 to 5,000 mm/min
(0 to 196.8 ipm)
A & B-Axis 0 to 500 dpm
Fanuc 31i-A5 CNC Control
Through Spindle Coolant (72.5 psi)
Shower Coolant
Coolant Tank (600L Effective Capacity)
Chip Conveyor
Manual Handle Operation Panel w/ Coordinate Display
Spindle Overload Prevention Function
Air Blow Device
Splash Guard
Imperial
| X-Axis | 90.55" |
| Y-Axis | 49.21" |
| Z-Axis | 27.56" |
| A-axis | ±30° |
| B-axis | ±30° |
| Spindle Speed | 4,000 RPM |
| ATC Capacity | 40 |
Rapid Traverse
X & Y-Axis 20 m/min
787.4 ipm
Z-Axis 10 m/min
393.7 ipm
A & B-Axis 1,000 dpm
Feedrate
X & Y-Axis 0 to 10,000 mm/min
(0 to 393.7 ipm)
Z-Axis 0 to 5,000 mm/min
(0 to 196.8 ipm)
A & B-Axis 0 to 500 dpm
Fanuc 31i-A5 CNC Control
Through Spindle Coolant (72.5 psi)
Shower Coolant
Coolant Tank (600L Effective Capacity)
Chip Conveyor
Manual Handle Operation Panel w/ Coordinate Display
Spindle Overload Prevention Function
Air Blow Device
Splash Guard
