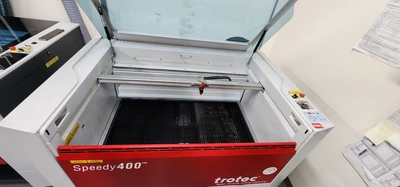

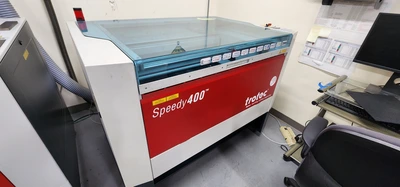

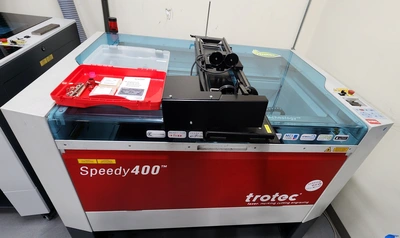

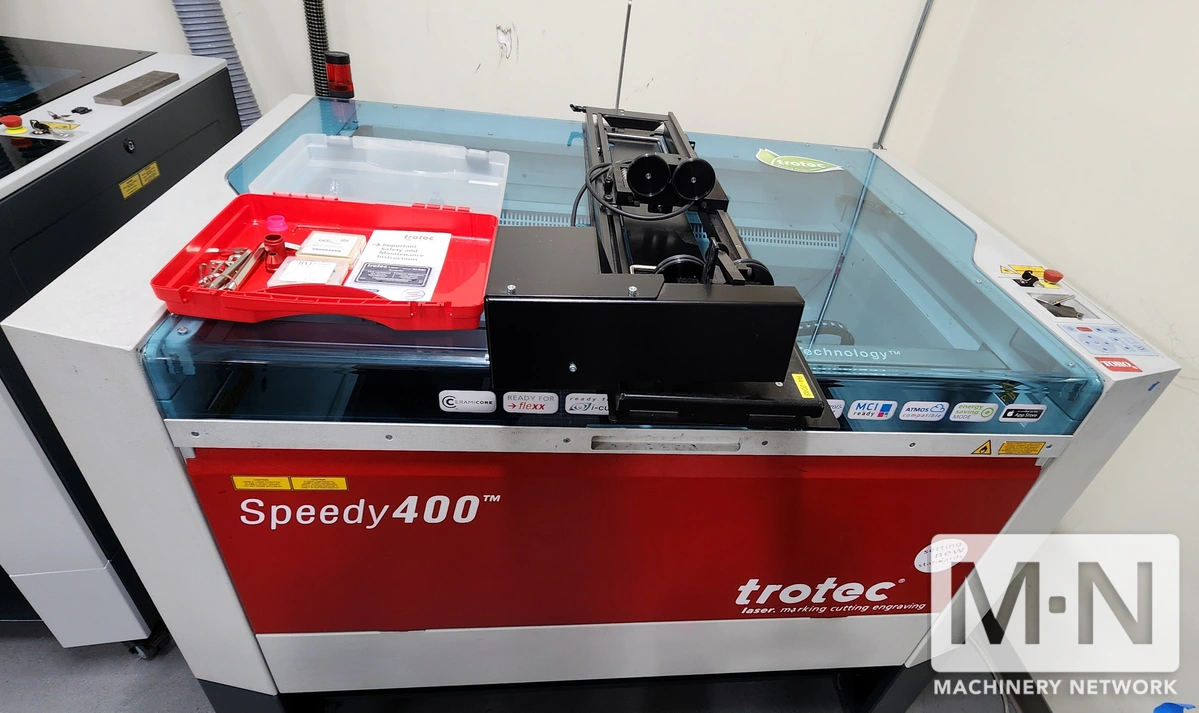

100 Watt CO2 Trotec Speedy 400 Laser Engraver and Cutter

Working Area & Loading
Working area: 40" × 24"
Loading area (standard): 43" × 27.4"

Max. height of workpiece:
12" with 1.5" or 2.0" lens
11.5" with 2.0" clearance lens
10" with 4.0" lens
9.5" with 4.0" clearance lens
9" with 5.0" fiber lens

Performance
Max. processing speed: 170 ips

Acceleration: 1969 ips²
Motors: Brushless DC servo motors
Encoder: Incremental measuring system
Accuracy: ±0.0006" over working area; addressable accuracy 0.0002"

Optical & Lens Options
Lenses: 1.5", 2.0", 2.0" clearance, 2.5", 4.0" clearance, 4.0" (CO₂), plus 3.2" and 5.0" fiber lenses; 2.85" Flexx lens for combined CO₂/fiber processing
Mechanical & Table
Table: Multifunctional aluminum cutting grid table with rulers in mm or inches

Z-axis: Electronic, programmable with servo motor

Power & Cooling
Laser sources: CO₂ (60W, 80W, 120W) or fiber/flexx MOPA for metals and plastics

Water cooling: Required for CO₂ lasers; external cooler needed
Interface & Software
Interface: Ethernet, optional Wi-Fi

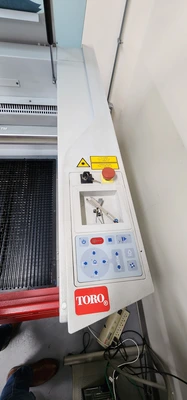

Software: Ruby® with touch panel, keypad, safety switch, and system turnkey
Standard Features
InPack Technology™: Protects working head and moving parts from dust

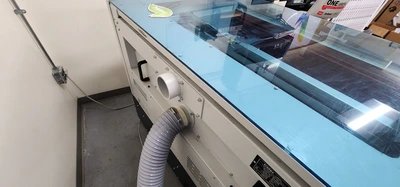

Exhaust: Surface exhaust via rear cabinet, table exhaust with vacuum
Autofocus: Sonar Technology™ for automatic focus
Air assist: Coaxial with integrated pump, Ø3 mm and Ø7 mm nozzles

Ergonomic access: Sliding front lid, OptiMotion™ motion planning, LED work area light
