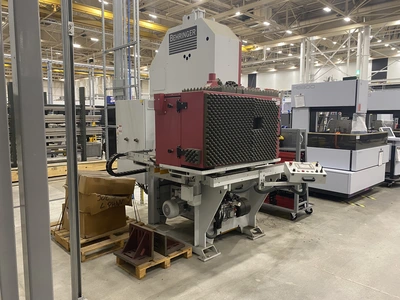

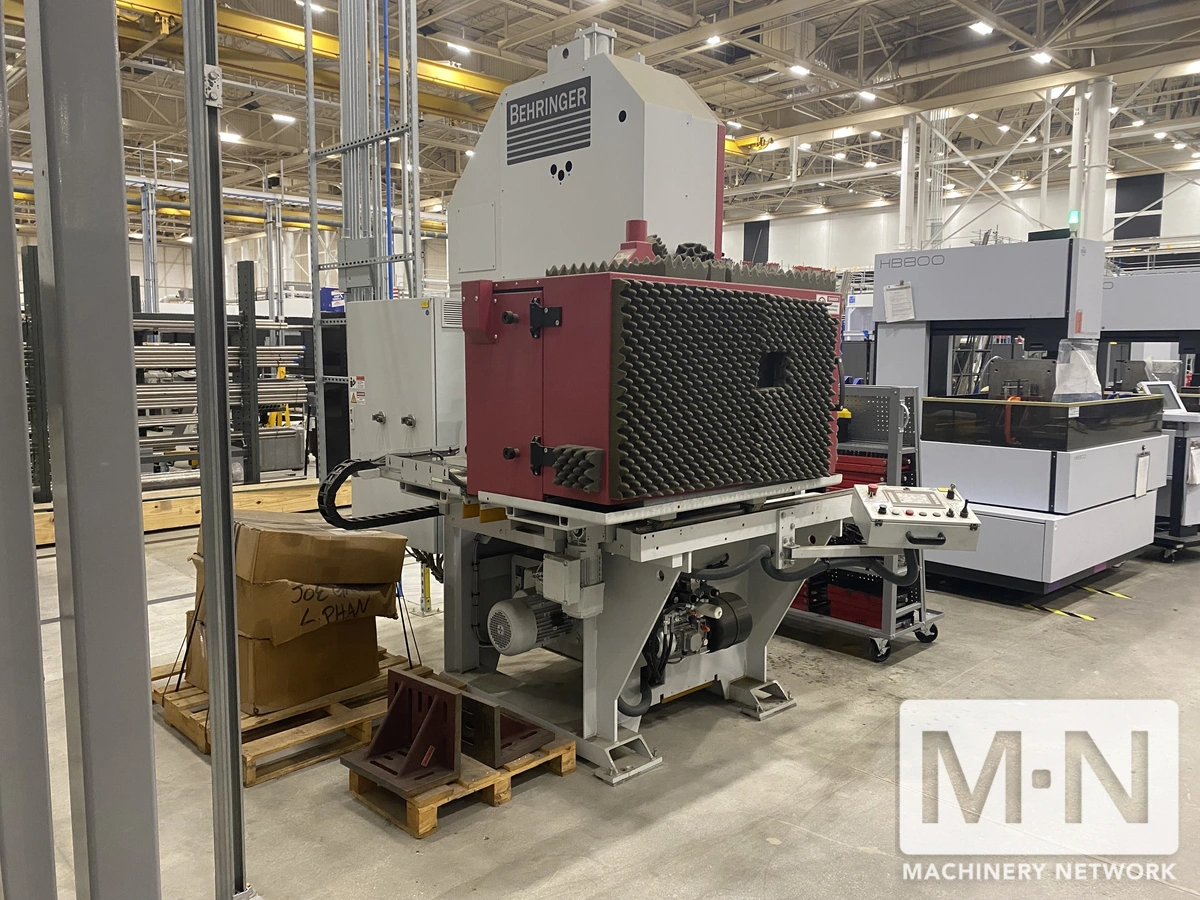

2021 BEHRINGER LPS-T-3D VERTICAL BAND SAW

Max printing plate size:
~ 850 × 650 mm (33.4" × 25.6")
Optional larger version (LPS-T-3D 1200):
up to 1,200 × 1,200 mm (47" × 47")
Max cutting / print height:
~ 650 mm (25.6")
Standard LPS-T Platform Specs (Base Machine)

(The 3D version is built on this platform, so these apply closely)

Cutting Range
Cutting length: 1,270 mm (50")
Cutting width: 620 mm (24.4")
Cutting height: 600 mm (23.6")
Saw & Drive
Blade speed: 17 – 120 m/min (variable)
Blade size: 5,730 × 41 × 1.3 mm
Main drive power: 4 kW (~5.4 HP)
Total connected load: ~6 kW
Machine Size & Weight
Footprint (L × W × H):
~2,900 × 2,750 × 3,120 mm
Weight: ~3,200 kg (≈7,000 lbs)
Key Features (3D Version)
NC-controlled workholding / positioning for printed plates
Movable support table for easy loading/unloading
Servo-controlled feed system for consistent cutting pressure
Integrated chip conveyor + coolant system (standard)
Designed to prevent blade overload and premature wear
Custom clamping systems for irregular 3D parts
Typical Applications
Separating parts from additive manufacturing build plates
Cutting tool steel, mold bases, and blocks
Prototype and short-run production
Aerospace / medical / high-value metal components
