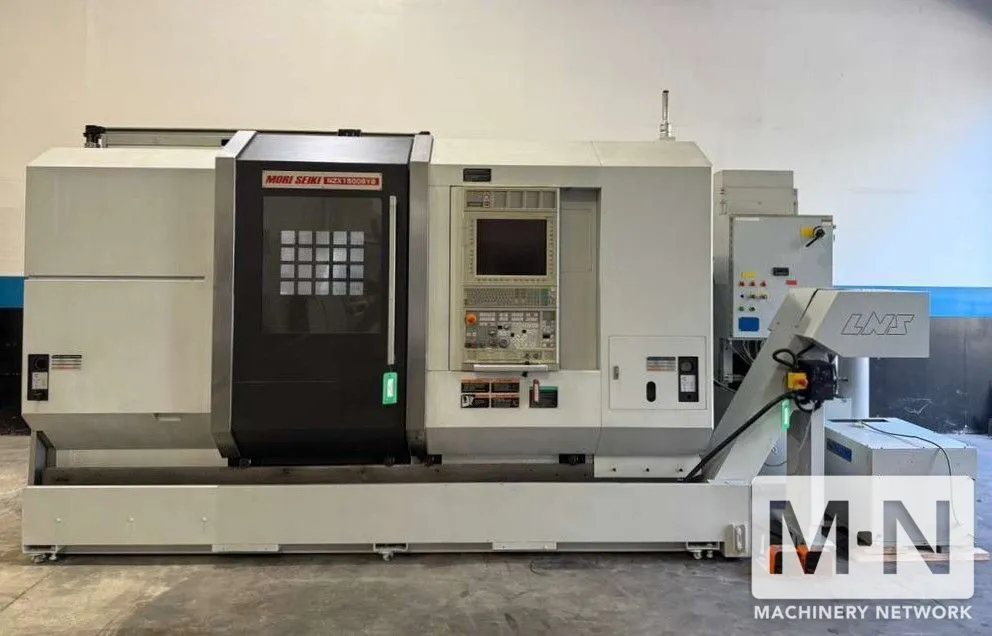

DMG Mori NZX 1500/800SY2 CNC Multi Axis Lathe, 2012 - Twin Spindle Twin Turret & Y Axis
ConditionUsed
1 available
DMG Mori NZX 1500/800SY2 CNC lathe, 2012. Features twin spindles, twin turrets, Y axis, and Fanuc 31i-A control. Max RPM: 6000, 30 hp power. Equipped with live tool turrets, coolant system, and chip/mist blasters. Ideal for precision machining needs.
Fanuc 31i-A Series CNC Control
Collet Chuck on Main Spindle
Collet Chuck on Sub Spindle
Servo Controlled C Axis on Both Spindles

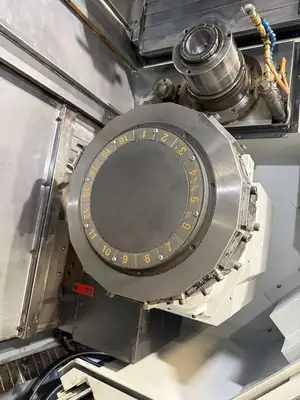

16 Station Live Tool Upper Turret
16 Station Live Tool Lower Turret
Y Axis on Both Turrets
PCMCIA Card Slot & USB Port
Chip Blaster
Mist Blaster
Spindle Chiller Unit
High Pressure Coolant System
Chip Conveyor
Foot Switches
DMG Mori NZX 1500/800SY2 CNC lathe, 2012. Features twin spindles, twin turrets, Y axis, and Fanuc 31i-A control. Max RPM: 6000, 30 hp power. Equipped with live tool turrets, coolant system, and chip/mist blasters. Ideal for precision machining needs.
Imperial
| Swing | 31.5" |
| Max. Turning Length | 31.5" |
| Max. Turning Diameter | 11.8" |
| X-Axis | 8.3" |
| Y-Axis | +2.6″ / -1.8″ |
| Z-Axis | 31.9" |
| B-Axis | 35.4" |
| C-Axis | 360° |
| Rapid Traverse X-Axis | 1181 ipm |
| Rapid Traverse Y-Axis | 787 ipm |
| Rapid Traverse Z-Axis | 1968 ipm |
| Bar Capacity | 2" |
| Spindle Bore | 2.4 in |
| Spindle Nose | A2-5 |
| Power | 30 hp |
| Max RPM | 6,000 RPM |
| Sub Spindle Power | 30 hp |
| Sub Spindle Max RPM | 6000 rpm |
| Sub Spindle Bore | 2.4 in |
| Sub Spindle Nose | A2-5 |
| Dimensions | 173″ x 111″ x 91″ High |
| Weight | 18,300 Lbs |
Fanuc 31i-A Series CNC Control
Collet Chuck on Main Spindle
Collet Chuck on Sub Spindle
Servo Controlled C Axis on Both Spindles
16 Station Live Tool Upper Turret
16 Station Live Tool Lower Turret
Y Axis on Both Turrets
PCMCIA Card Slot & USB Port
Chip Blaster
Mist Blaster
Spindle Chiller Unit
High Pressure Coolant System
Chip Conveyor
Foot Switches
