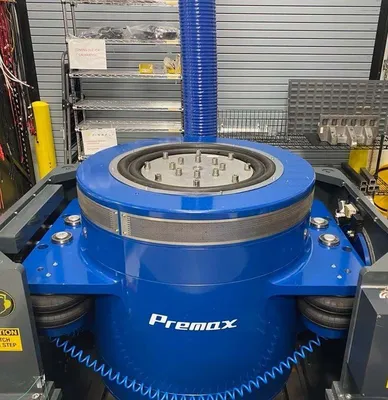

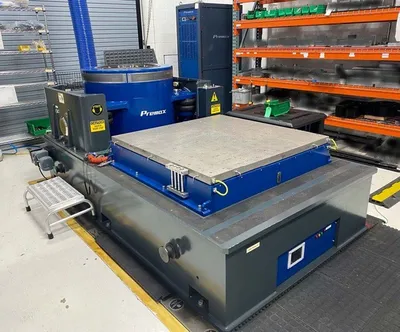

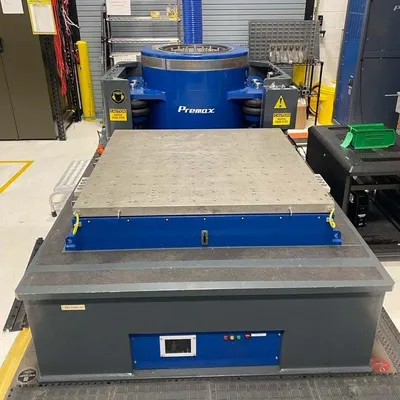

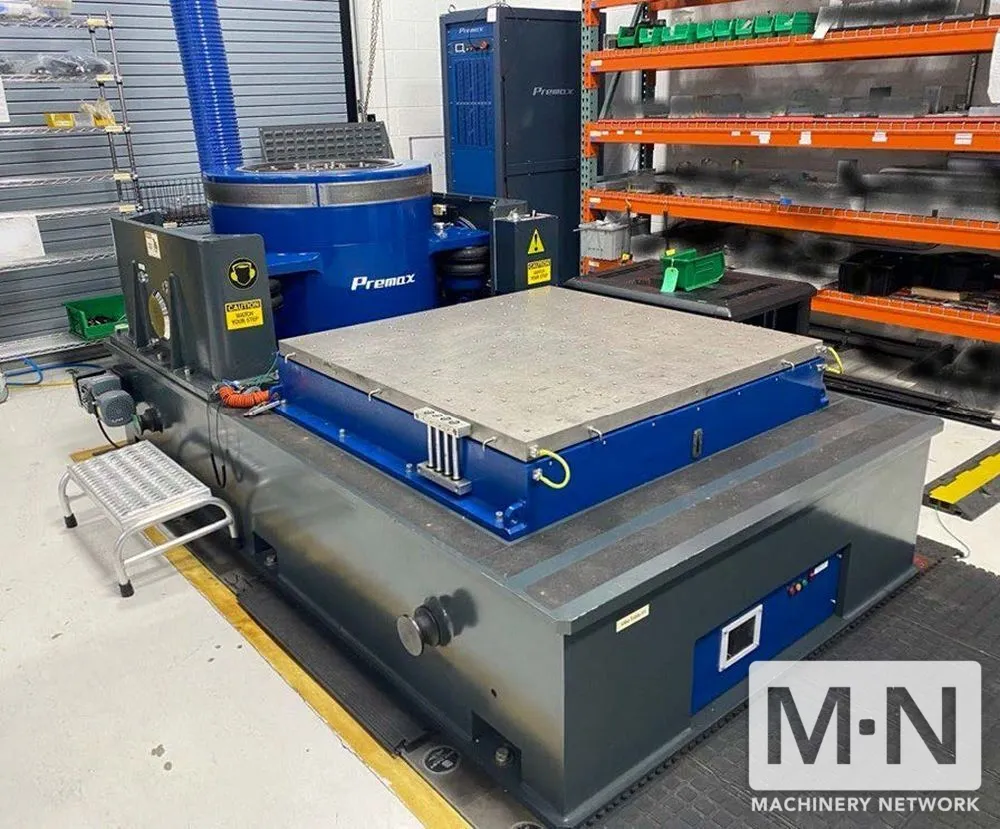

Premax ITS-5400-ST Electro-Dynamic Shake Tester

Table dimensions 48” x 48”
Sine Force Rating 53.4 kN (12,000 lbf RMS)
Shock Force Rating 106kN (24,000 lbf RMS)
Random Force Rating 3.4 kN (12,000 lbf RMS)
Sine Peak Acceleration Rating (Bare Table) 981 m/s^2 (100 g)
Velocity Rating 1.8 m/s
Frequency Range Rating 5 ~ 2500 Hz
Peak to Peak Displacement Rating 51 mm [2.0 in - p to p]
Load Rating 998 kg ( 2,200lbs)
Armature Diameter 445 mm (17.5 in)
Armature Mass 55 kg (121.2 lbs.)
Armature Insert Pattern (9mm) 8 × Φ200mm (8 × Φ400mm)
Table Bolt Size (Standard) Metrix (M - 12)

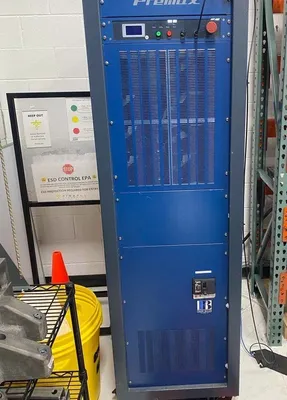

Power Supply 3 phase 480V AC, 60H
