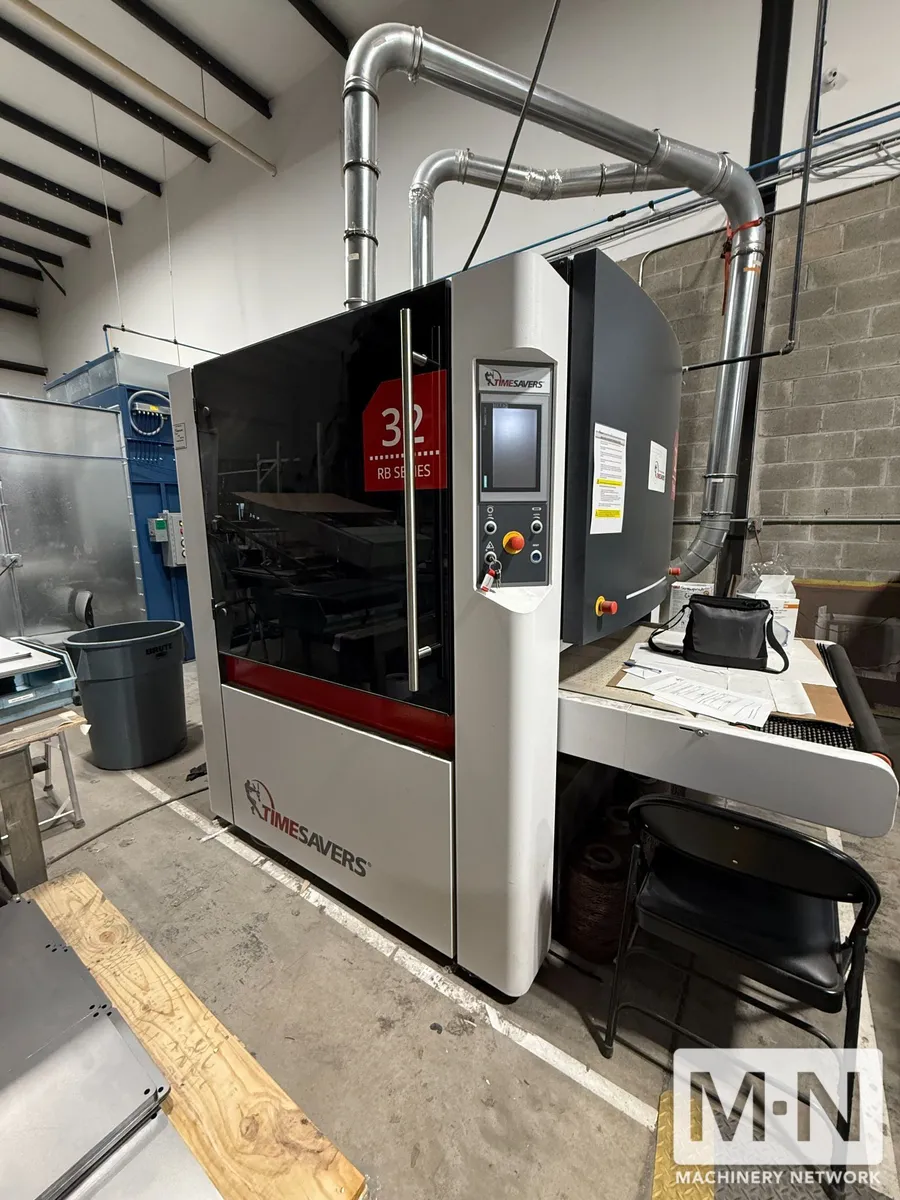

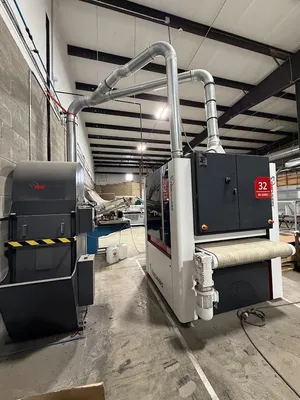

43" TIMESAVER SN32-1100 RB

Working width: 1100 mm (≈ 43")
Max part thickness: ~0–100 mm (0–4")
Minimum part size (vacuum table): ~50 x 50 mm
Feed speed: ~0.2 – 8 m/min (≈ 0.6 – 26 FPM)
Heads / Tooling
Number of heads: 1–3
Head types:
Rotary brush (RB)
Wide belt (W)
Optional hammerhead (H)
Brush system:
4 multi-directional brushes (carousel style)
Quick-change design
Brush diameter: ~350 mm (≈ 12")
Performance / Drive
Main drive: ~7.5–10 HP (varies by config)
Total installed power:
~12.5 kW up to ~31 kW depending on configuration
Variable speed conveyor & heads (AC frequency drives)
Machine Features
Vacuum conveyor bed (self-cleaning)
Siemens HMI touchscreen control
Adjustable table opening
Product over-thickness protection
Magnetic/vacuum hold-down options for small parts
Physical Size / Weight (approx.)
Width: ~1700 mm (67")
Length: ~3290 mm (129")
Height: ~2105 mm (83")
Weight: ~6,000–6,500 lbs (varies by build)

\\
