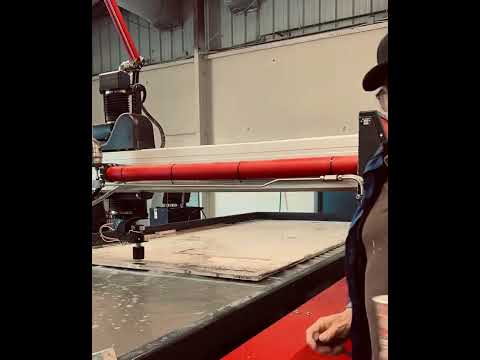

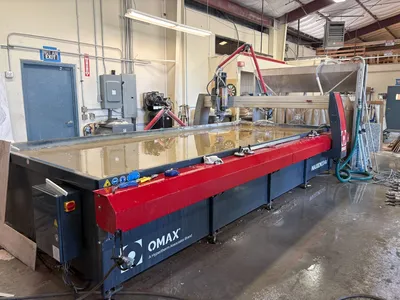

2024 MAXIEM 2040 W/AJET 5-AXIS WATERJET

Footprint (with pump & controller) 21' 9" x 12' 11"
Height (with scissor plumbing) 8' 10"
Operating Weight 28,283 lbs
Weight (tank empty) 8,500 lbs
X Cutting Travel 13' 10"
Y Cutting Travel 6' 7"
Z-Axis Travel 12"
Table Size 16' 1" x 7'
Material Supports Slats 4" x 14Ga Galvanized Steel
Maximum Supported Material Load 300 lbs/sq ft
Electrical Requirements 3-Phase, 380-480 VAC ±10%, 50-60 Hz
Noise Level Below 80 dBA
Speed 500 in/min
Linear Positional Accuracy ±0.003"
Repeatability ±0.001"
