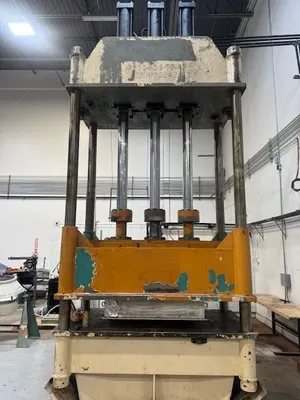

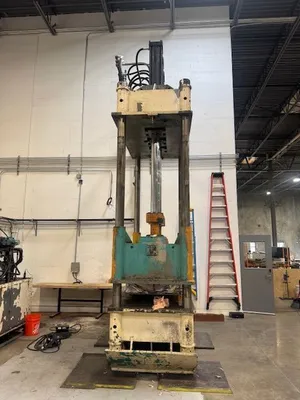

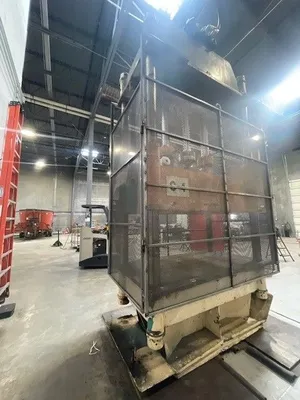

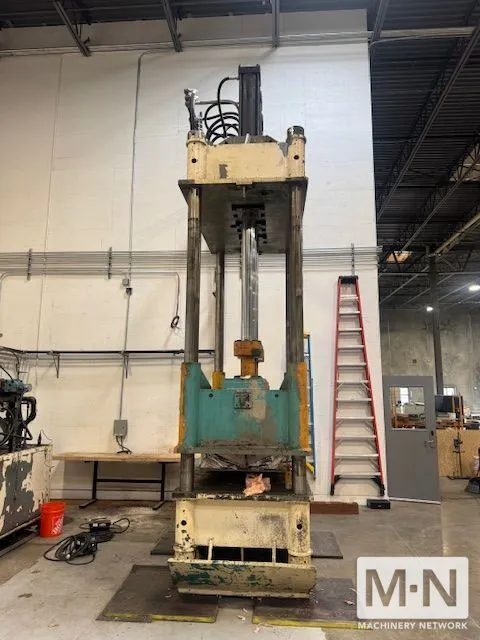

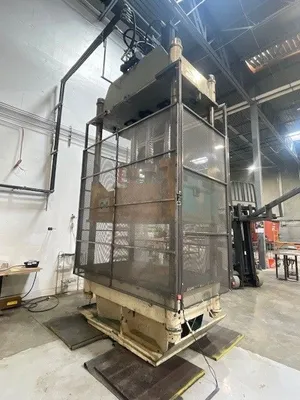

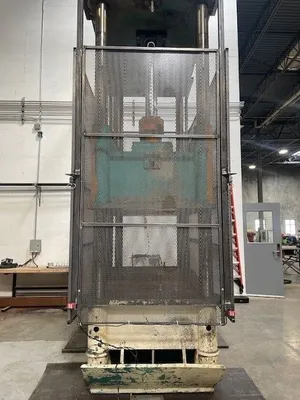

200 TON VERSON MODEL 200-HD2-72-4P HYDRAULIC PRESS

CAPACITY 200 TONS MAX.
STROKE 54"
DAYLIGHT TO BED 26" MIN - 80"
MAX BED AREA APPROX. 86" X 54" (RL X FB)
DISTANCE BETWEEN POST 74" X 32" (RL X FB)
USABLE BED & RAM AREA 74" X 54" (RL X FB)
CYLINDER SIZE TWO 7" DIA. CYLINDERS
Modification:CYLINDER SIZE THREE 8" DIA.
CYLINDERS ROD SIZES TWO 5.5" DIA. RODS -
Modification: ROD SIZES THREE 5.5" DIA. RODS POST SIZE 5.5" DIA. FLOOR TO BED 36" P

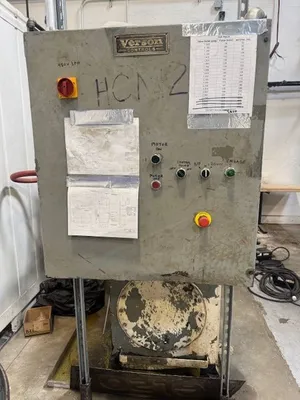

RESS CONTROLS VERSON CONTROLS - Modification -
PRESS CONTROLS MODIFIED ELECTROMECHANICAL HYDRAULICS ABEX DENISON HYDRAULIC PUMP
PARKER VALVE D63W1B44Y ELECTRICS 25 HP LINCGUARD LINCOLN MOTOR
Modification: • 480V - 3PH - 60HZ | 37.7 AMP -

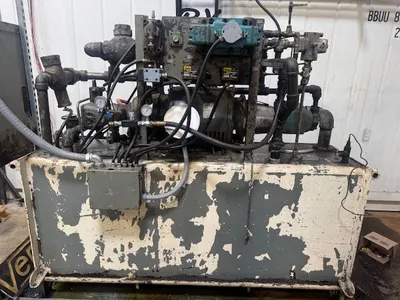

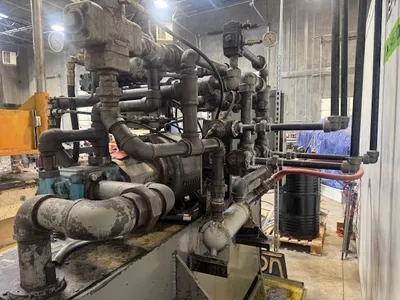

-hydraulic pump and reservoir have been removed from the crown and placed on the ground adjacent to the press. The hydraulic pump system and press systems are now effectively separate, connected systems.
