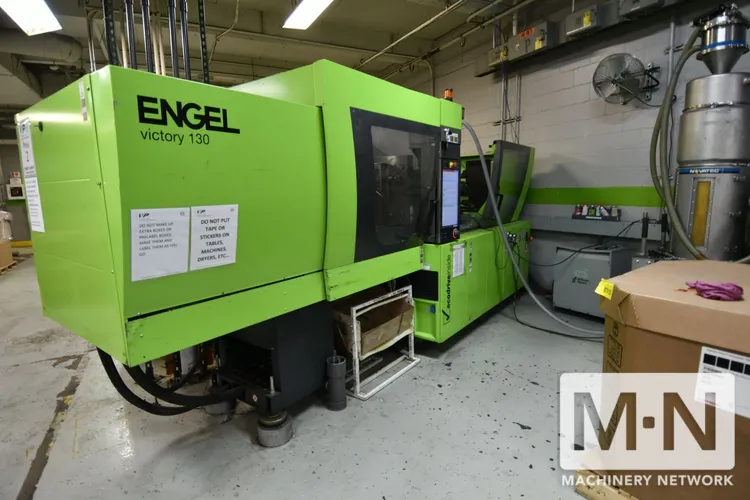

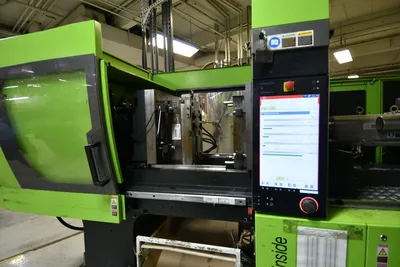

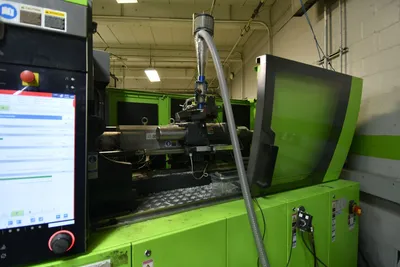

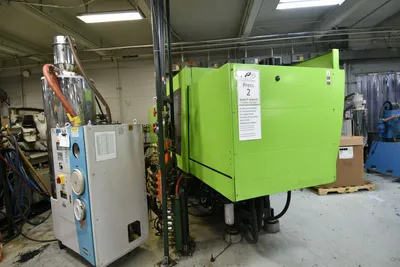

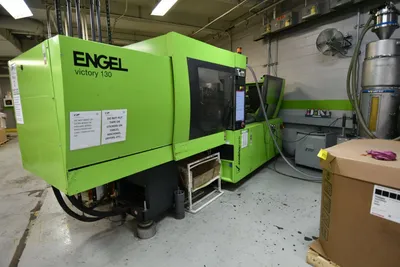

130 TON 6.5 OZ ENGEL MODEL VICTORY 500/130 HY-SPEX -US INJECTION MOLDING MACHINE MFG 2015

130 TON 6.5 OZ ENGEL MODEL VICTORY 500/130 HY-SPEX -US INJECTION MOLDING MACHINE MFG 2015

Sell Your ENGEL VICTORY 500/130 HY-SPEX US
+ 1 (818) 465-6700
info@machinerynetwork.com
ConditionUsed
1 available
Sell Your ENGEL VICTORY 500/130 HY-SPEX US

Overview

Type:
Injection Molding Horizontal/Vertical
Manufacturer:
ENGEL
Model:
VICTORY 500/130 HY-SPEX US
Year:
2015
Stock #:
52471
Status:
For Sale

Description

130 TON 6.5 OZ ENGEL MODEL VICTORY 500/130 HY-SPEX -US INJECTION MOLDING MACHINE MFG 2015

TONNAGE130 T117.934 t
SHOT SIZE6.5 oz184.3 g
SCREW DIAMETER35 mm
PLATEN DIMENSIONS29.5" X 29.5"29.5" X 29.5"
CLAMP STROKE19.7"500.38 mm
MIN/MAX MOLD HEIGHT11.8"/31.5"11.8"/31.5"

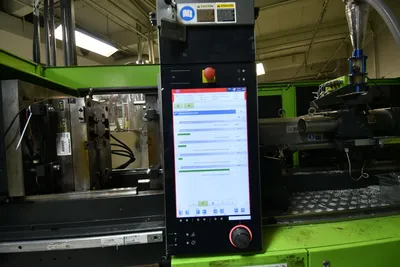

CC-300 CONTROL
SINGLE CORE PULL ON MOVING PLATEN
EJECTOR BACK CONFIRMATION
solenoid operated pneumatic valve 5/2-ways,
R1/4 inch ports, located on stationary platen, for air blow only
