| X-Axis | 25.39" | 644.91 mm |
| Y-Axis | 9.84" | 249.94 mm |
| Z-Axis | 62.99" | 1,599.9 mm |
| B-Axis | –30° to +210° | –30° to +210° |
| C-Axis | 0.0001° | 0.0001° |
| Swing | 25.59" | 649.99 mm |
| Machining Length | 23.62" | 599.95 mm |
| Turning Dia | 25.69" | 652.53 mm |
| Max Turning Length | 23.62" | 599.95 mm |
| Center Distance | 74.13" | 74.13" |
| Bar Capacity | 3.15" | 80.01 mm |
| Chuck Size | 12" | 304.8 mm |
| # Axis | 8 | 8 |
| Power | 30 hp | 22.4 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Max Tool Spindle Speed | 12000 rpm | 12,000 RPM |
| Spindle Nose | A2-6 | A2-6 |
| Taper | Capto C6 | Capto C6 |
| Twin Spindle | Yes | Yes |

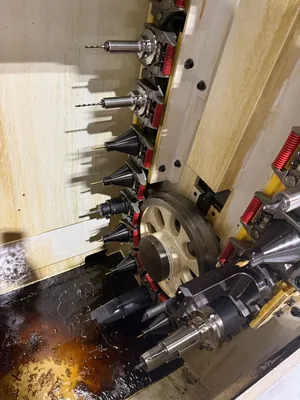

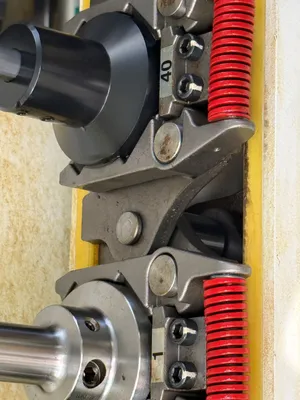

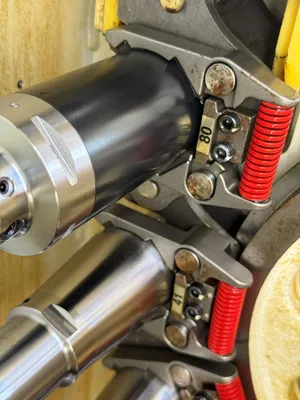

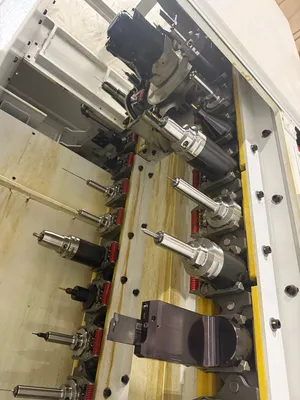

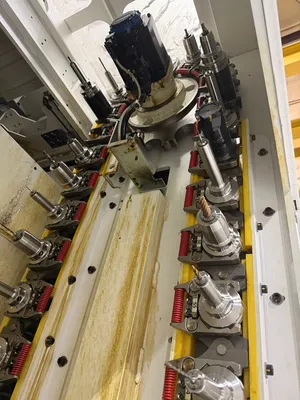

| Tool Changer | 80 | 80 |
| Tailstock (Yes/No) | No | No |
| Milling on Upper and Lower Turret | Lower Only | Lower Only |
| Sub Spindle Speed | 5000 rpm | 5,000 RPM |
| Live Tool Speed | 12000 rpm | 12,000 RPM |
| Spindle Speed L-Spindle | 4,200 RPM | 4,200 RPM |
| Spindle Nose L-Spindle | A2-6 | A2-6 |
| Hole Through Draw Tube L-Spindle | 2.56" | 65.024 mm |
| Dimensions | 192.1" x 98.4" x 99.6" | 192.1" x 98.4" x 99.6" |
| Weight | 22100 lbs | 22100 lbs |

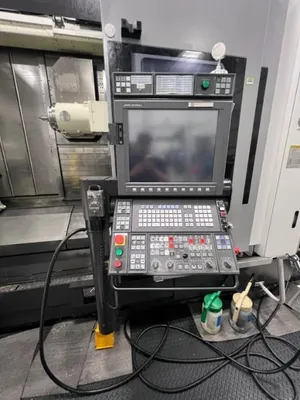

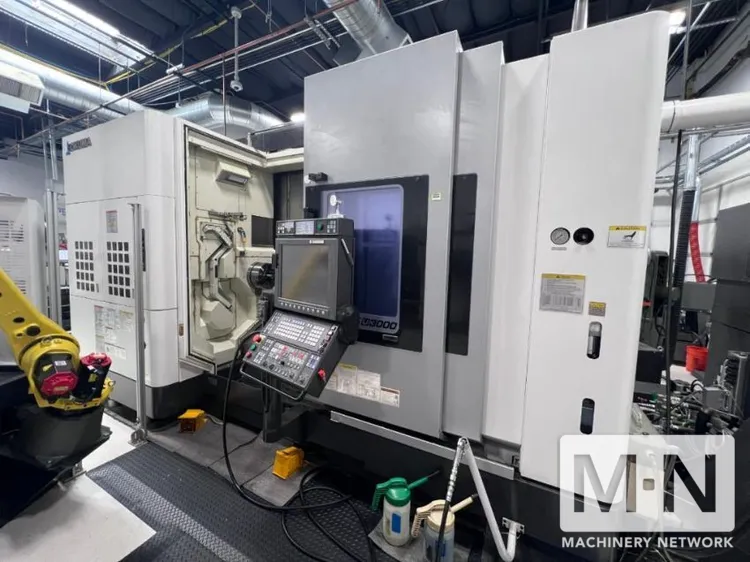

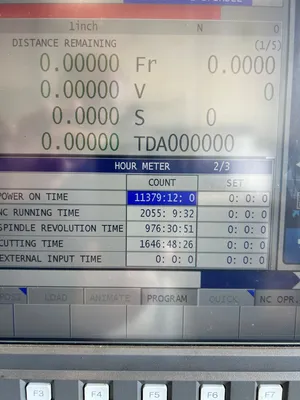

Okuma OSP-P300SA-H CNC Control

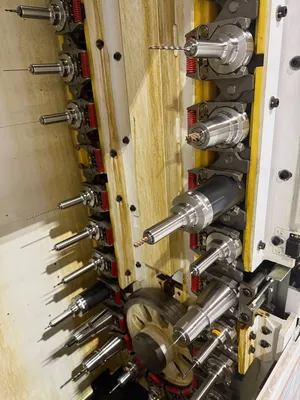

78 Tool Holders Included

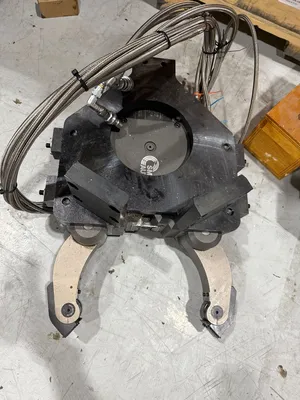

SMW Hydraulic Steady Rest

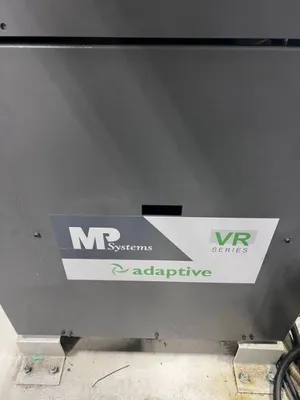

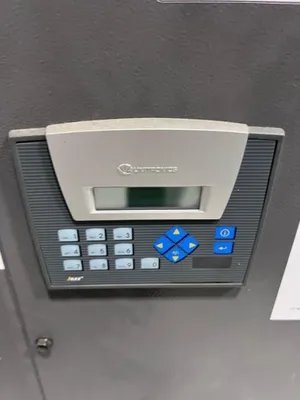

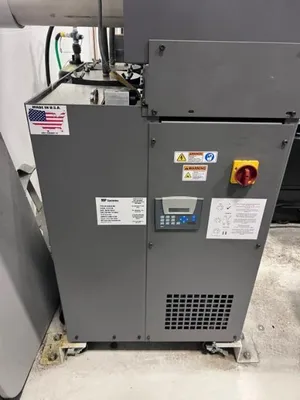

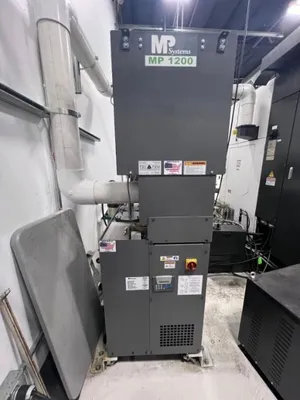

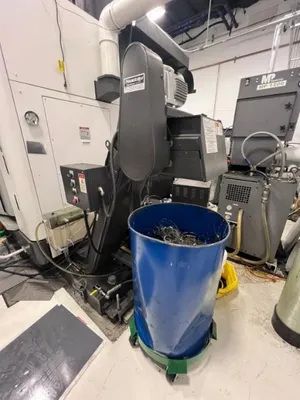

MP 1200 High Pressure Coolant System

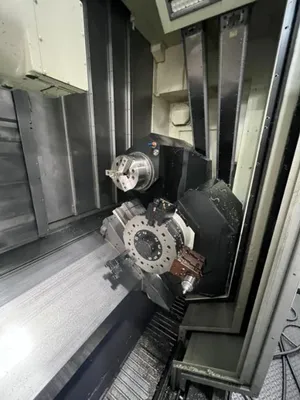

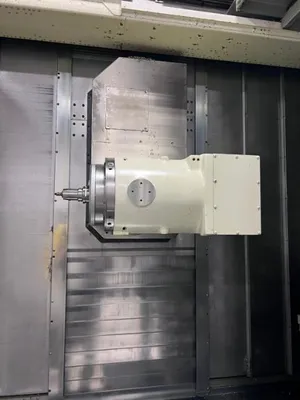

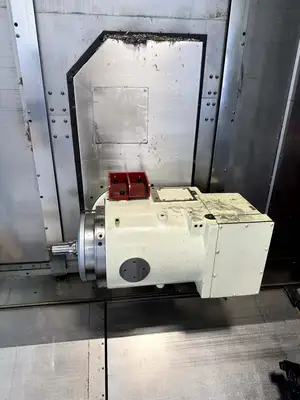

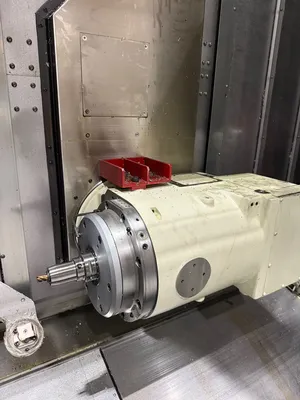

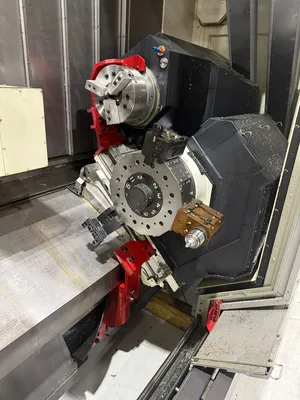

B-Axis Head
Coolant Tank

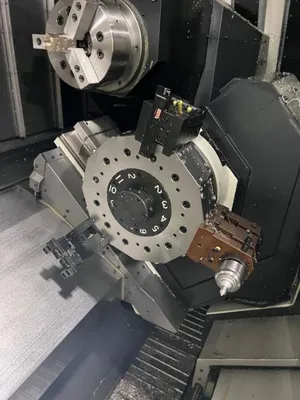

Lower Turret
Dual Spindle

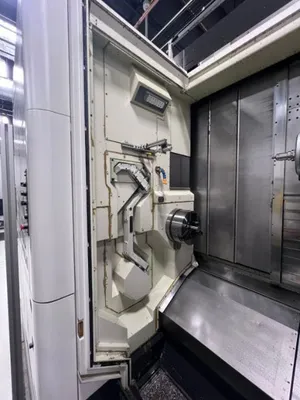

Sub Spindle

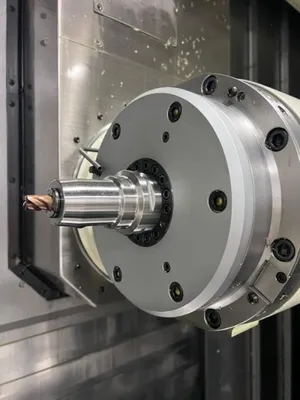

Milling Spindle
CAPTO C6 Milling Spindle
Tool Presetter

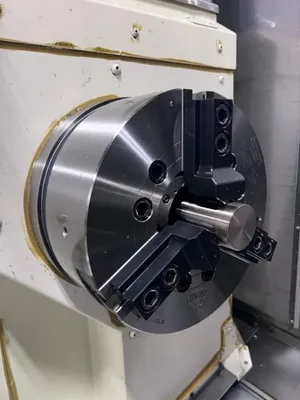

Kitagawa B-212 Hyd. Chuck Main Spindle

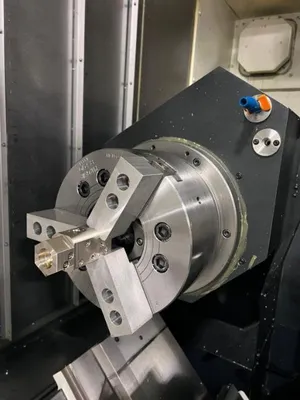

Kitagawa B-210 Hyd. Chuck on Sub Spindle
Renishaw Probing (Receiver)
