Yama Seiki FCV-620 CNC Universal Machining Center, 2016
ConditionUsed
1 available

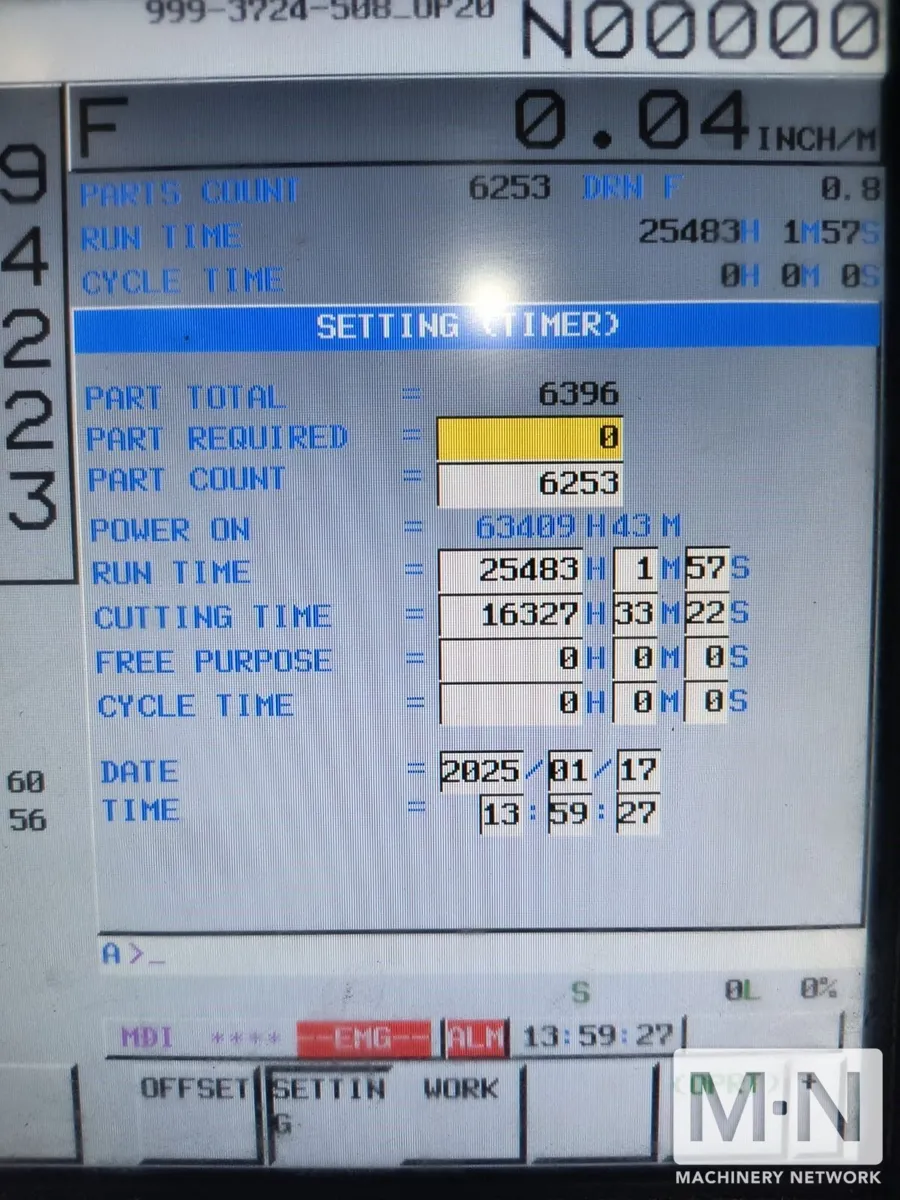

Fanuc 0i-MF CNC Control
5 axis Machining (3+2)
Prepped For 1,000 psi
Scales on B & C-axis
Robot Interface
200 Blocks Look Ahead w/Data Server
Automatic Right Side Doors
Hydraulic Porting Thru Table
Chip Conveyor
Coolant Tank
Imperial
| X Axis Travel | 25" |
| Y Axis Travel | 21.06" |
| Z Axis Travel | 18.11" |
| A Axis Travel | 360° |
| B Axis Travel | -50° to +110° |
| Power | 20 hp |
| RPM | 15,000 RPM |
| # ATC | 60 |
| Taper | CAT 40 Big Plus |
| Max Workpiece Weight | 661 lb |
| Max Workpiece Diameter | 25.59" |
| Dimensions | 123" x 99" x 116" |
| Weight | 19,000 Lbs |
Fanuc 0i-MF CNC Control
5 axis Machining (3+2)
Prepped For 1,000 psi
Scales on B & C-axis
Robot Interface
200 Blocks Look Ahead w/Data Server
Automatic Right Side Doors
Hydraulic Porting Thru Table
Chip Conveyor
Coolant Tank
