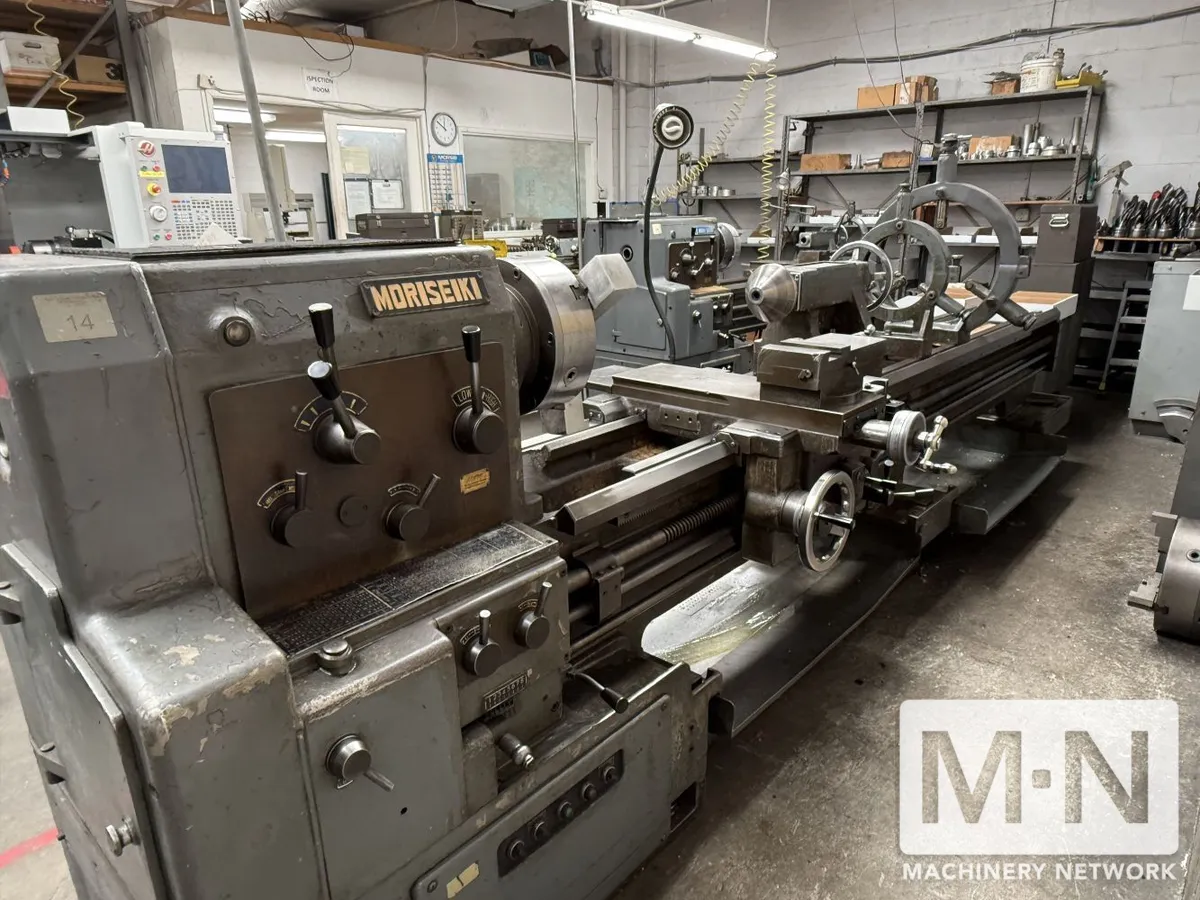

24" x 120" Mori Seiki MH-3000 Engine Lathe

ConditionUsed

Quantity

1 available

$22,500.00 USD

Overview

Type:

LATHES, ENGINE

Manufacturer:

Model:

MH-3000

Condition:

Good

Year:

1978

Stock #:

51717

Status:

For Sale

tool post, steady rests,

ImperialMetric

Swing	24"	609.6 mm
Centers	120"	3,048 mm
Swing Over Cross Slide	16"	406.4 mm
Spindle Bore	3"	76.2 mm
Number of Spindle Speeds	12	12
Power	15 hp	11.2 kW
Spindle Speed Range	27 - 1205 RPM	27 - 1205 RPM
Spindle Nose	D1-8	D1-8
Spindle Taper with Sleeve	MT #7	MT #7
Number of Longitudinal and Cross Feed Rates	40	40
Range of Longitudinal Feeds	.0015" - .0433"	.0015" - .0433"
Tailstock Spindle Travel	6"	152.4 mm
Tailstock Taper	MT #5	MT #5
Range of Cross Feeds	.0010" - .029"	.0010" - .029"
Range of Inch Threads	80 - 2 TPI	80 - 2 TPI
Range of Metric Threads	0.5 - 14mm	0.5 - 14mm
Width of Bed	18.1 in
Dimensions	179"L x 47"W x 54"H	179"L x 47"W x 54"H
Weight	7700 Lbs	7700 Lbs

10" 3-Jaw chuck
Steady rests
KDK quick change tool post
