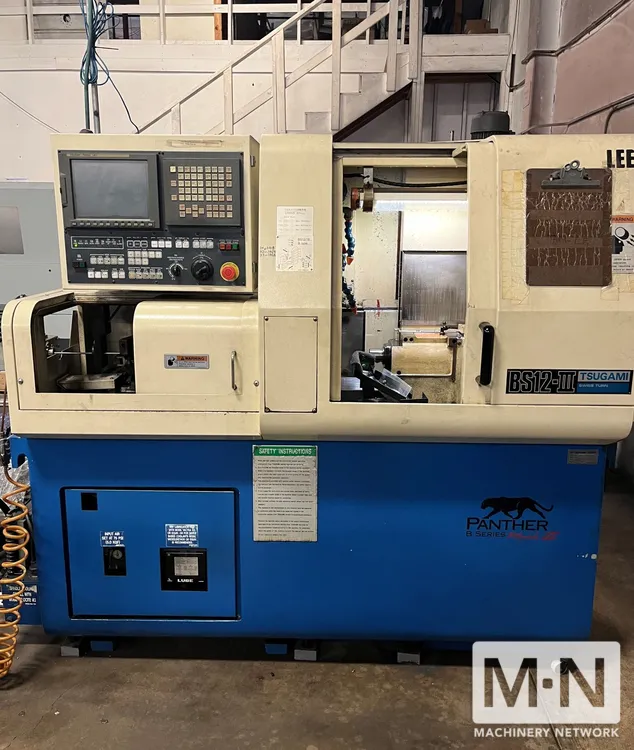

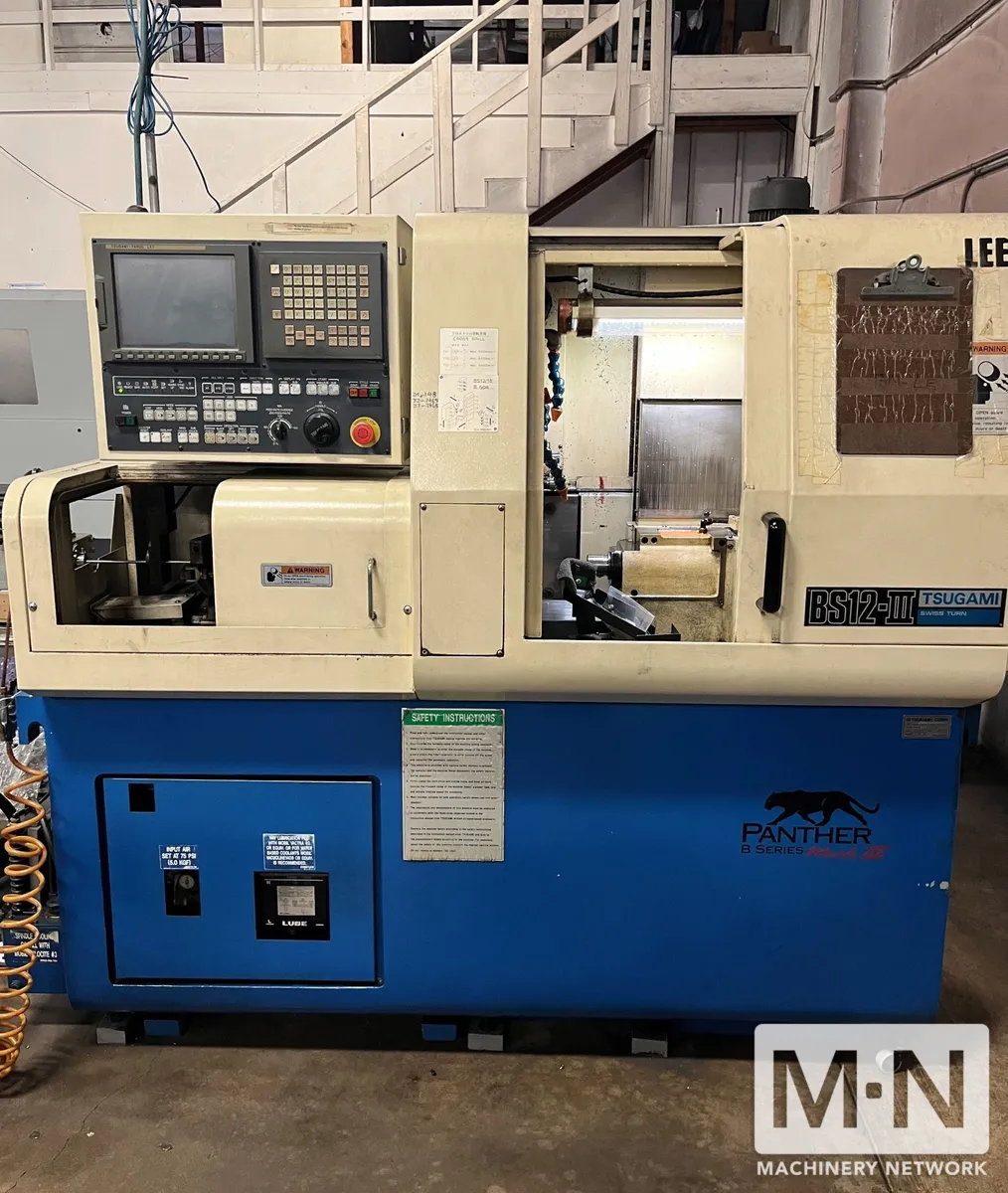

Tsugami BS12B-III CNC Swiss Lathe

Controllable Axes: 5 (X1, Z1, A, X2, Z2)
Maximum Bar Diameter: 0.500 inches
Linear Ball Ways: X and Z
T Axis Brake
Z Axis Travel-Fixed Guide Bushing: 6.69 inches
-Driven Guide Bushing: 3.15 inches

Programmable Servo Axis Designations
Z Main Headstock In and Out: 5.51 inches
T1 OD Tool Slide Up and Down: 3.94 inches
X OD Tool Slide Right and Left: 1.26 inches
Y OD Tool Slide Right and Left: 1.26 inches (7-Axis Models)

Main Spindle:
Spindle Speed: 200-10,000 RPM
Spindle Indexing: C-Axis
Spindle indexing degrees: .001 deg
Horsepower: 2.95 kW
Number of Tool Stations:
7 O.D. Tools
3 Cross driven tools (200-5000 RPM)
3 I.D. Tools
3 Back working tools
Sub-Spindle:
Spindle Speed: 200-5,000 rpm
Horsepower: 2.95 kW
Indexing: 15 Deg

Weight (apprx): 4,350 pounds
Dimensions (L x W x H - approx): 66" x 43" x 66", approx
