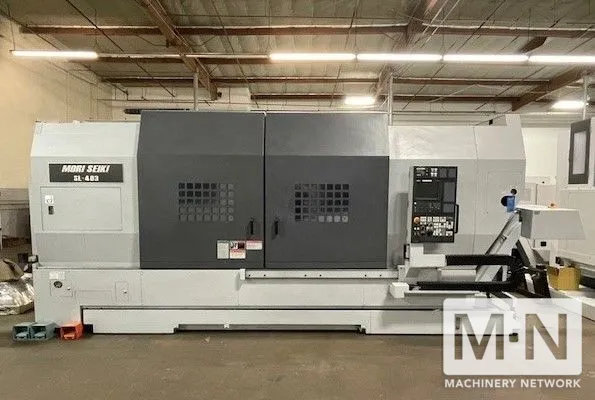

Mori Seiki SL-403B/2000 CNC Turning Center, 2008
ConditionUsed
1 available
MSX-500III w/ MAPPS Control (FANUC)
Chip Conveyor
Tailstock
Tool Presetter
Steady Rest
Imperial
| Swing | 36.8" |
| Max. Turning Length | 84.9" |
| Max. Turning Diameter | 24.4" |
| Center Distance | 91.5" |
| X-Axis | 13.5" |
| Z-Axis | 86.4" |
| Rapid Traverse X-Axis | 787.4 ipm |
| Rapid Traverse Z-Axis | 944.8 ipm |
| Chuck Size | 15" |
| Bar Capacity | 5" |
| Spindle Bore | 5.1 in |
| Spindle Nose | A2-11 |
| Power | 40 hp |
| Max RPM | 2,400 RPM |
| Turret Stations | 12 |
| Tailstock | Yes |
| Dimensions | 243.5.1” x 123.2” |
| Weight | 30,800 lbs |
MSX-500III w/ MAPPS Control (FANUC)
Chip Conveyor
Tailstock
Tool Presetter
Steady Rest
