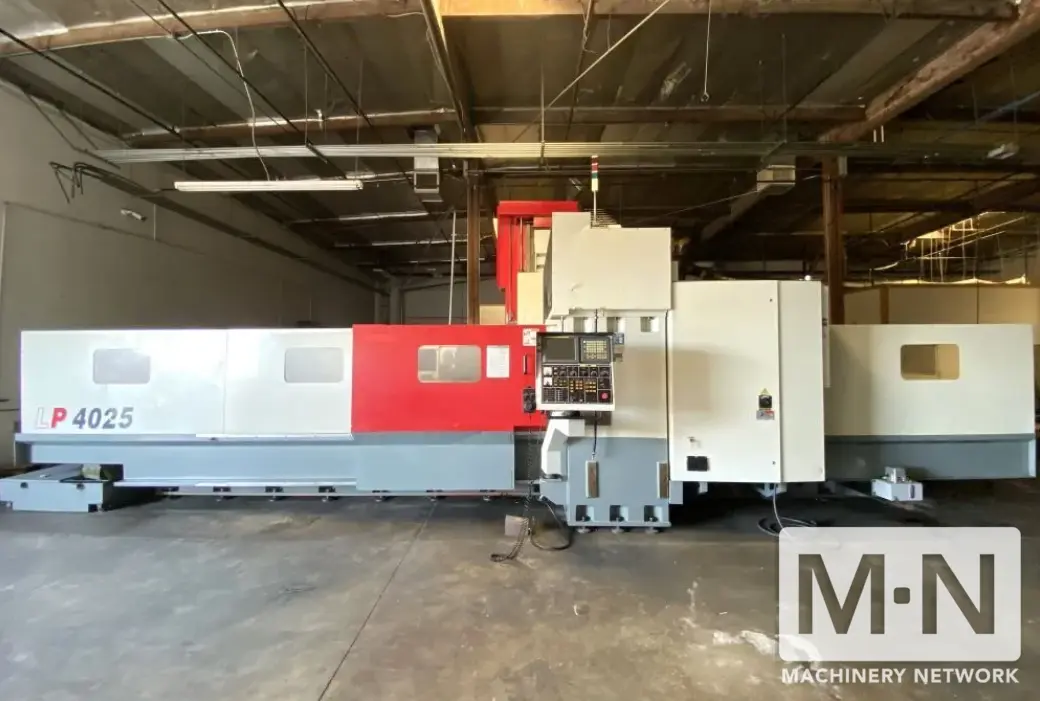

Awea LP-4025 CNC Bridge Mill, 2004
ConditionUsed
1 available
Travels:
X-Axis: 158.0″
Y-Axis: 98.6″
Z-Axis: 30.9″
Distance Between Columns: 106.2″
Spindle Nose to Table (Min.- Max.): 8.6″- 39.57″
Feed rates: Rapid X,Y & Z: 590 ipm
Cutting Feed rate: 0.04″ – 376″ ipm
Table:
Length: 164.6″
Width: 94.4″
T-Slot: 0.87″ Wide X 20" X 7.87″
Max Weight on Table: 33,000 lbs
Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 35 HP
Automatic Arm Type Tool Changer:
Capacity: 40
Max Tool Weight: 43 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 5.2 – 7.7″
Fanuc 18iMB CNC Control
Cutting Time 21,108 Hours
158″ X 98″ Table
40 Station Side Mount Tool Changer
50 Taper Geared Head
6000 RPM Spindle
Coolant Thru Spindle
Powerful 35 HP high torque spindle motor
PCMCIA Card Slot
RS-252 Port
Spindle Orientation
Box Way Construction
Portable manual pulse generator
Flood coolant with large separate coolant tank Base
Flush Chip Disposal with Dual Auger
Chip Conveyor
Chiller Unit
Levelling Pads
Replacement Cost over $500,000.00
Note: Machine is dismantled and Ready to be loaded on the Truck
