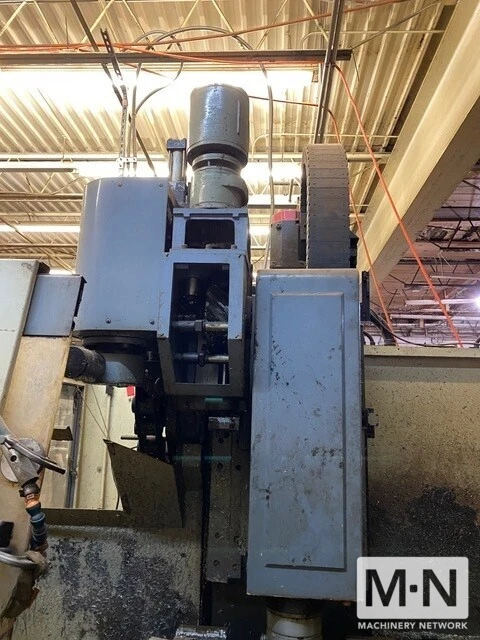

Leadwell MCV-760AR CNC Vertical Machining Center

Leadwell MCV-760AR CNC Vertical Machining Center

Sell Your LEADWELL MCV-760AR
+ 1 (818) 465-6700
info@machinerynetwork.com
ConditionUsed
1 available
Sell Your LEADWELL MCV-760AR

Overview

Type:
Vertical Machining Centers
Manufacturer:
LEADWELL
Model:
MCV-760AR
Stock #:
51112
Status:
For Sale
X Axis Travel29.9"759.46 mm
Y Axis Travel20"508 mm
Z Axis Travel24"609.6 mm
Cutting Feed Rate16,404 ft/min16,404 ft/min
Rapid Traverse49 ft/min49 ft/min
Max. Table Load1,543 Lbs1,543 Lbs
Spindle Motor15 hp11.2 kW
Spindle Speed6,000 RPM6,000 RPM
Spindle TaperMAS-CT 40MAS-CT 40
Dimensions97.6" x 153.3" x 116.1"97.6" x 153.3" x 116.1"
Weight14,550 Lbs14,550 Lbs

Fanuc OMF Control
24 Position Double Arm Automatic Tool Changer
Screw Type Chip Conveyor
19 3/4" x 39 1/2" Stevens Drilled & Tapped Sub-Plate
Coolant Pump Motor: ½ HP
Lubrication Pump: 3 Watt
Power Requirement: 20 KVA
Hydraulic Pressure: 35 kg/cm2
Air Source: 6 kg/cm2
Electrics: 240 Volts, 3 PH, 60 CYC

Max. Tool Diameter: 3.9"
Max. Tool Length: 9.8"
Max. Tool Weight: 15 Lbs
ATC Time Tool To Tool: 2.5 Sec
ATC Time Chip To Chip: 5 Sec
