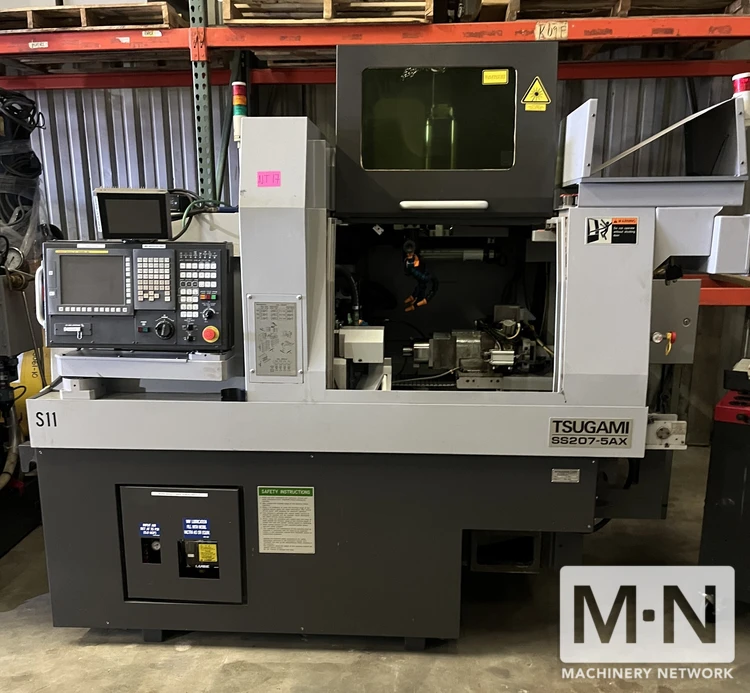

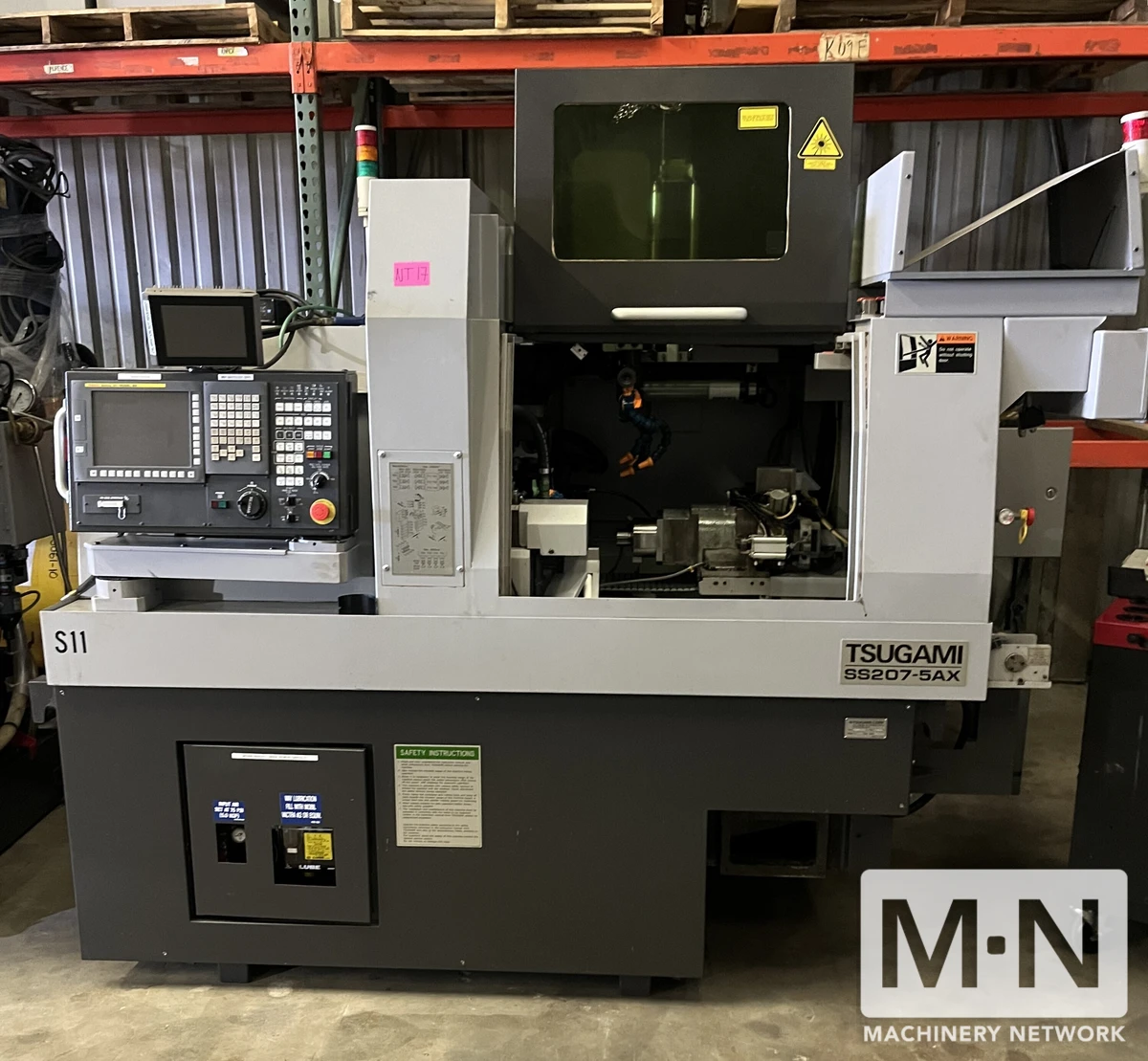

Tsugami SS207-5AX CNC Swiss Lathe, 2015

Maximum Machining Dia. 0.787"
Maximum Machining Length 8.26"/Chucking
Main Spindle Speed 200~10,000 RPM
Rotary Tool Spindle Speed 200~8,000 RPM
Back Spindle Max. Dia. 0.787"
Back Spindle Front Ejection Max. Length 3.2"
Back Spindle Speed 200~10,000 RPM
Rapid Traverse Rate 32 M/min
Input Power 6KVA
Center Height 39.37"
Weight 7,260 lbs

Motors
Main Spindle 3/5 hp
Back Spindle 2/3 hp
Rotary Tool 1 hp
Coolant 0.5 hp

B1 Axis Tool Spindle Position
Positioning Angle 0° - 110°
Positioning method Servo controlled
Number of tool positions 6 (3 main and 3 sub)
Rotary tool speed 5,000 rpm
Main spindle tool collet ER16
Sub spindle tool collet ER11
Positioning angle 0 - 110°

Laser 250W Fiber
Cooling System Water Cooled
Laser Enclosure Classification Class 1
Max Cutting Speed 19.685"/sec
Wavelength 1070 +/- 10nm
Frequency 2-20kHz
Pulse Width 0-CW
Power 25-250w
Nozzle Standoff Adjustment NC controlled
Variable Gas Pressure 5 to 350 psi
# of Gas Connections 2
Through Work Piece Coolant to 246 psi
Coolant as Fed From Front of Part to 1,000 psi

Tube Size Constraints
250W Fiber
Maximum Wall Thickness 0.039"
Minimum OD 0.080"
Maximum OD 0.787"
Minimum OD: ID Ratio 3:1

Optic Specifications
Focal Length (mm) f=100
Beam Reduction (Optional) 0.5/0.7
Beam Expansion (optional) 1.4/2.0/2.8
Exchangeable protection glass Y
Cutting Nozzle Diameter 1mm to 3mm
