39.4" x 155"CC, Fanuc 21iTB, 25" chuck, 6" bar cap
Swing
39.4"
1,000.8 mm
Max. Turning Length
155.51"
3,950 mm
Max. Turning Diameter
35"
889 mm
X-Axis
16.9"
429.26 mm
Z-Axis
153.5"
3,898.9 mm
Chuck Size
25"
635 mm
Bar Capacity
6"
152.4 mm
Spindle Bore
6.3 in
Spindle Nose
A2-15
A2-15
Power
50 hp
37.3 kW
Max RPM
800 RPM
800 RPM
Turret Stations
12
12
Tailstock
Yes
Yes
Fanuc 21i-TB CNC Control
25” Yamakawa 4-Jaw Hydraulic Chuck
Chip Conveyor

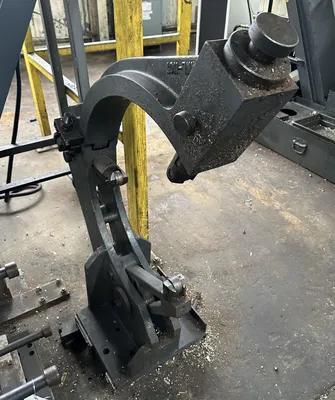

Steady Rest
45° Slant Bed
