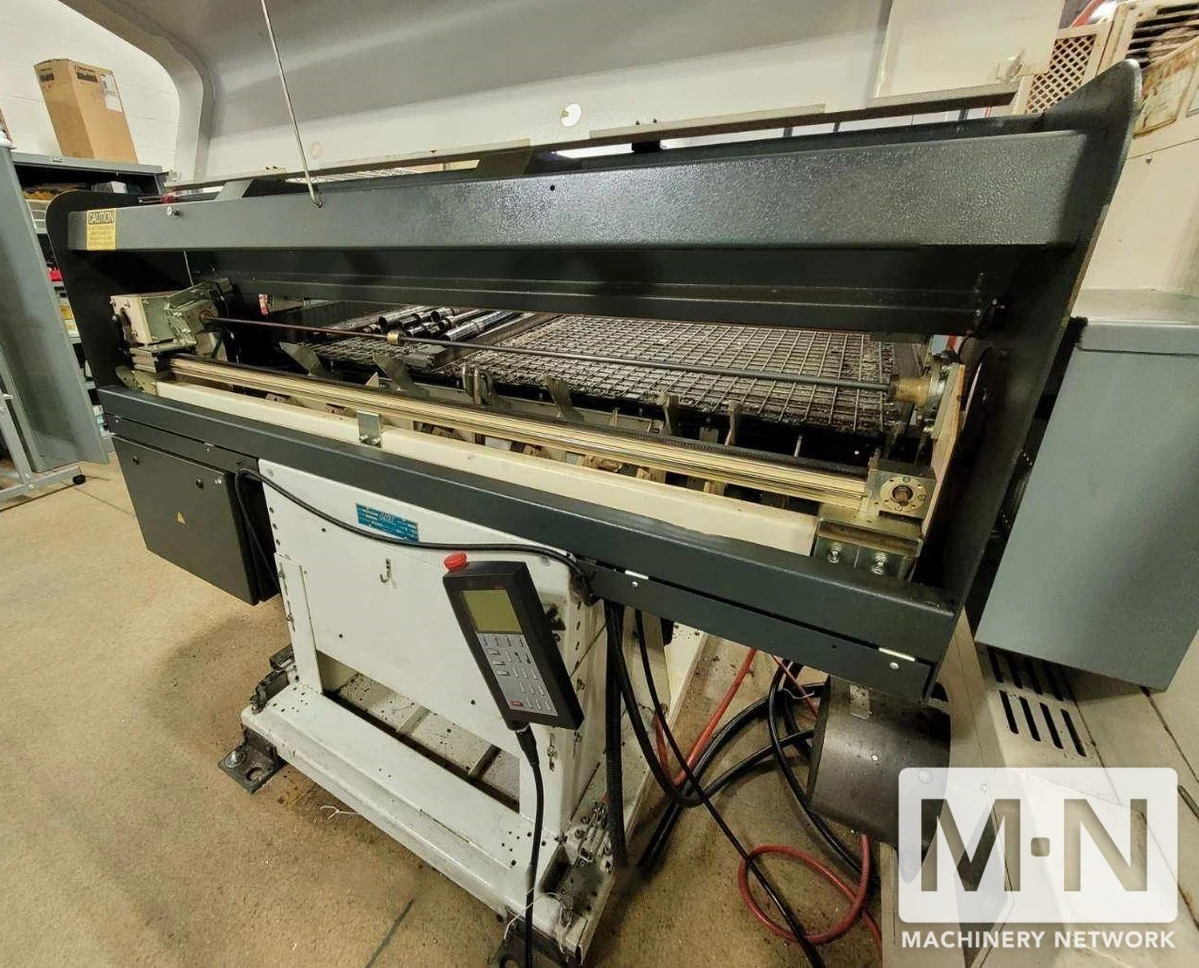

LNS Q.L. Servo S2 Bar Feeder
ConditionUsed
1 available
Retraction travel (X and Z axis) 23.6 in
Minimum diameter (round) 0.236 in
Maximum diameter (round) 3.15 in
Minimum bar stock length 14 in
Maximum bar stock length (Not to exceed spindle length) 63 in
Maximum weight bar stock 150 lbs
Maximum allowed weight on the loading table 1100 lbs
Main electrical power (Volt) 200 – 480 50 Hz – 60 Hz
Maximum current rate (Amps) 1 A
Pushing force/torque 125 ft-lb
Maximum feed rate >330 ft/min
Loading cycle for bar stock 8 – 12 sec.
Loading cycle for shaft loading 4
Weight 820 lbs
