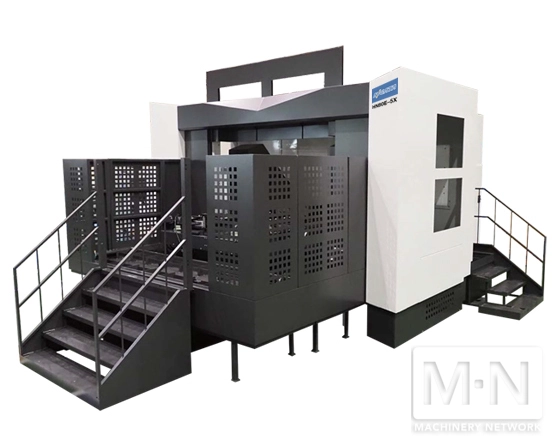

Niigata HN-80E-5X CNC 5-Axis Horizontal Machining Center - Brand New In Crates!

X-Axis 49.2"
Y-Axis 48.4"
Z-Axis 47.2"
Rapid Traverse 1181 IPM
Spindle nose to pallet center (Z axis) (Horizontal Pallet) 11" to 58.2"
Spindle nose to pallet surface (Z-axis) (Vertical Pallet) 11" to 58.2"
Spindle center line to pallet surface (Y axis) (Horizontal Pallet) -13.4" to 35"
Spindle center line to pallet center (Y-axis) (Vertical Pallet) -25.2" to 23.2"
Max Work Envelope Dia. 49.2"
Max Work Envelope Height 39.4"
80 ATC
6k RPM
50 HP
(2) Pallet Size 31.5" x 31.5"
Max Pallet Load 3,300 Lbs
Machine Weight 73,380 Lbs
Floor Space 32.5' x 21' x 13.7'
