Egemin LTV 0515 L Automation Unit Load Deck Guided Vehicle (2 Available) - Cost Over 300k New
ConditionUsed
1 available

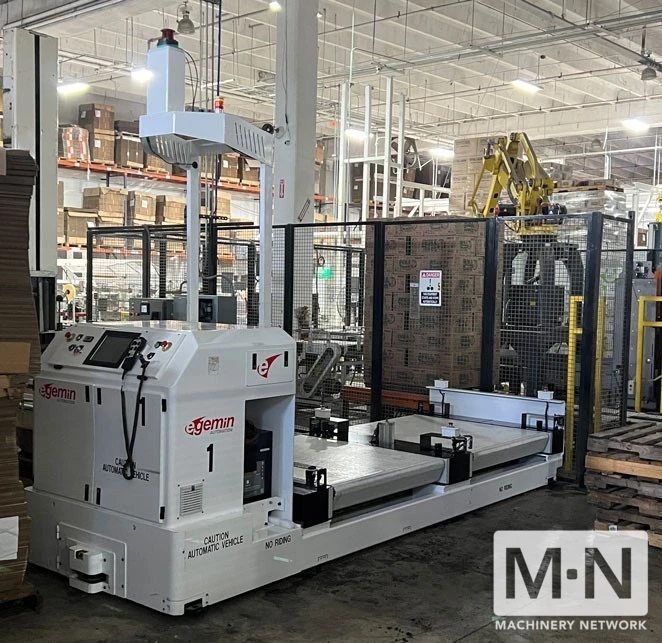

(2) Egemin Automation Unit Load Deck Automated Guided Vehicles (AGV), Model LTV 0515 L, 300 FPM Fwd./Rev., 1920 Lbs. Rated Load Rate Per Lane, 42" W x 48" L x 102" H Rated Load Envelope
"The SCA Manufacturing project targets the replacement of a (2) two, three position Conveyor Deck AGV vehicle system. The new laser guided CDV (Conveyor Deck Vehicle) E'gv®'s will transport non-skidded, stacks of finished corrugated boxes from the robot cells to two conveyor lines where the product will be stretch wrapped." - Egemin Automation
Rated Load Rate Per Lane
Temperature: 40 to 100 Deg. F w/ a 30-95% Non-Condensing Humidity Level
Speed: 300 FPM Fwd./Rev., 1920 Lbs.
Min. Turning Radius: 97" w a 90 Deg. Radius Turn, Carrying (2) Full Weight Load
Vehicle Weight (w/ Battery): 8,950 Lbs
Max. Vehicle Speed: 300 ft/min
Max. Speed Loaded: 125 ft/min
Nominal Conveyor Transfer Speed: 30 ft/min
Nominal Conveyor Height (AFF) Above Finished Floor: 20"
Battery Size: 12.77"W x 26.26"L x 23.4"H
E'gv Height (minus load): 125"
Max. Pallet Load
42" W x 48" L x 102" H Rated Load Envelope
Load Center 21"
Max. Weight 3,840Lbs/ 1920Lbs (Each Position)
2 Available - Other Egemin LTV 0515 L is sealed in a 40' Container
(2) Intralox Belt Conveyors
50" Belt w/ 55.38" OA Width
56" OA Length x 7.25" High Steel Sideframes
Intralox Series 900 Flat Top Acetal Belt
1,920 Lbs Max Cap.
(2) Egemin Automation Unit Load Deck Automated Guided Vehicles (AGV), Model LTV 0515 L, 300 FPM Fwd./Rev., 1920 Lbs. Rated Load Rate Per Lane, 42" W x 48" L x 102" H Rated Load Envelope
"The SCA Manufacturing project targets the replacement of a (2) two, three position Conveyor Deck AGV vehicle system. The new laser guided CDV (Conveyor Deck Vehicle) E'gv®'s will transport non-skidded, stacks of finished corrugated boxes from the robot cells to two conveyor lines where the product will be stretch wrapped." - Egemin Automation
Rated Load Rate Per Lane
Temperature: 40 to 100 Deg. F w/ a 30-95% Non-Condensing Humidity Level
Speed: 300 FPM Fwd./Rev., 1920 Lbs.
Min. Turning Radius: 97" w a 90 Deg. Radius Turn, Carrying (2) Full Weight Load
Vehicle Weight (w/ Battery): 8,950 Lbs
Max. Vehicle Speed: 300 ft/min
Max. Speed Loaded: 125 ft/min
Nominal Conveyor Transfer Speed: 30 ft/min
Nominal Conveyor Height (AFF) Above Finished Floor: 20"
Battery Size: 12.77"W x 26.26"L x 23.4"H
E'gv Height (minus load): 125"
Max. Pallet Load
42" W x 48" L x 102" H Rated Load Envelope
Load Center 21"
Max. Weight 3,840Lbs/ 1920Lbs (Each Position)
2 Available - Other Egemin LTV 0515 L is sealed in a 40' Container
(2) Intralox Belt Conveyors
50" Belt w/ 55.38" OA Width
56" OA Length x 7.25" High Steel Sideframes
Intralox Series 900 Flat Top Acetal Belt
1,920 Lbs Max Cap.
