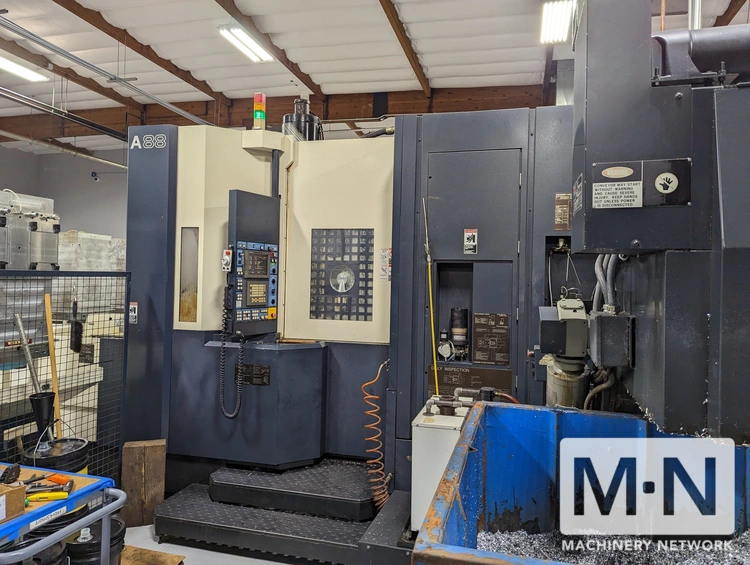

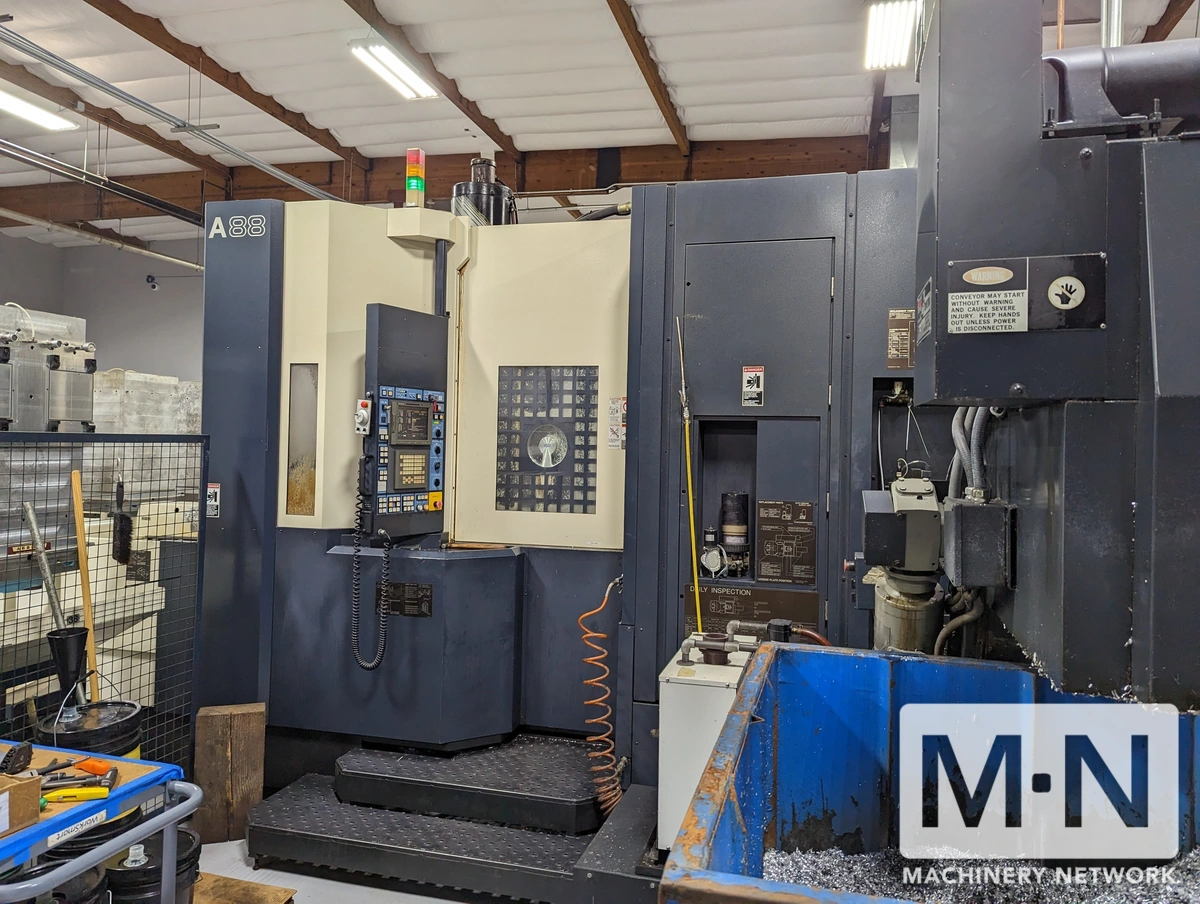

(4) Makino A88 4-Axis FMS CNC Horizontal Machining Center w/ Linear Pallet System, (3) 1999 (1) 2004

Sell Your MAKINO A88 FMS

+ 1 (818) 465-6700

info@machinerynetwork.com

ConditionUsed

Quantity

1 available

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (1)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (2)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (3)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (4)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (5)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (6)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (7)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (8)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (9)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (10)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (11)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (12)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (13)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (14)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (15)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (16)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (17)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (18)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (19)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (20)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (21)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (22)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network (23)

MAKINO A88 FMS FLEXIBLE MACHINING SYSTEM | Machinery Network

Sell Your MAKINO A88 FMS

Overview

Type:

FLEXIBLE MACHINING SYSTEM

Manufacturer:

MAKINO

Model:

A88 FMS

Stock #:

41864

Status:

For Sale

Description

Makino A88 4-Axis FMS CNC with Linear Pallet System, 3 units from 1999 & 1 from 2004. Features 40 hp, 18000 rpm spindle, 188 ATC, and Pro-3 control. Includes tool holders, tombstones, manuals, spare parts, presetter, and tool heater. Used condition.

ImperialMetric

X Axis Travel	35.43"	899.92 mm
Y Axis Travel	31.49"	799.85 mm
Z Axis Travel	38.1"	967.74 mm
Rapid Traverse	1000 ipm
Cutting Feedrate	1000 ipm
Pallet Indexing	0.001°	0.001°
Pallet Size	24.8"x24.8"	24.8"x24.8"
Max Working Weight	6,600 lb	2,993,713.2 g
Spindle Motor	40 hp
Spindle Speed	18000 rpm	18,000 RPM
ATC Capacity	188	188
Spindle Taper	CAT50	CAT50

Makino Pro-3
44 Pallet Stations
24-7 / Lights Out Machining
4 Load/Unload Stations
All available HSK Tool Holder
All available Tombstones
All available Manuals
All available Spare parts
Parlec Presetter
Induction Tool Heater
