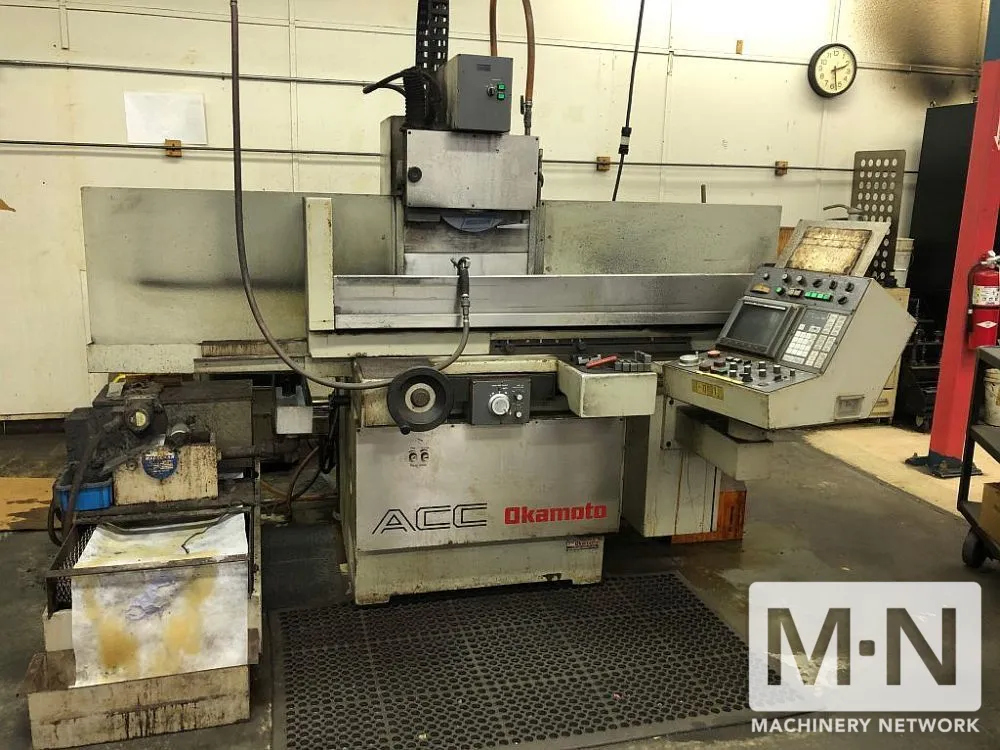

Okamoto ACC12-24EX Automatic Surface Grinder
ConditionUsed
1 available
Servo Cross & vertical feeds, auto dress & wheel wear comp. EM chuck
12"x24" Fine pole electro magnetic chuck
Okamoto Fanuc Programmable MDI control
Servo driven cross & vertical feeds
Programmable over the wheel dresser with auto dressing, auto wheel wear compensation and auto dress infeed, rough & fine dress feed, speeds & intervals
Rough & fine feeds
Rapid wheelhead advance
Wheel retract to start position
Shift plunge griding cycle
Chuck datum grinding cycle
Automatic sparkout
Coolant system with magnetic swarf separation
Servo Cross & vertical feeds, auto dress & wheel wear comp. EM chuck
Imperial
| Table size | 12" x 24" |
| Table travel - longitudinal | 29.5" |
| Distance - spindle center to table | 13.6 |
| Max table load | 925 lb |
| Longitudinal table speeds | 3 - 82 FPM |
| Cross feed - manual, per rev. | .0001/.0005/.002 |
| Cross feed - automatic | .02" .8" |
| Down feed - auto incremental | .00005 - .0015 |
| Power rapid elevation | 40 IPM |
| Power | 5 hp |
| Grinding wheel dimensions | 12" x 1.5" x 5" bore |
| Grinding wheel speed | 1800 RPM |
| Dimensions | 108" x 82" x 71"H |
| Weight | 6200 Lbs |
12"x24" Fine pole electro magnetic chuck
Okamoto Fanuc Programmable MDI control
Servo driven cross & vertical feeds
Programmable over the wheel dresser with auto dressing, auto wheel wear compensation and auto dress infeed, rough & fine dress feed, speeds & intervals
Rough & fine feeds
Rapid wheelhead advance
Wheel retract to start position
Shift plunge griding cycle
Chuck datum grinding cycle
Automatic sparkout
Coolant system with magnetic swarf separation
