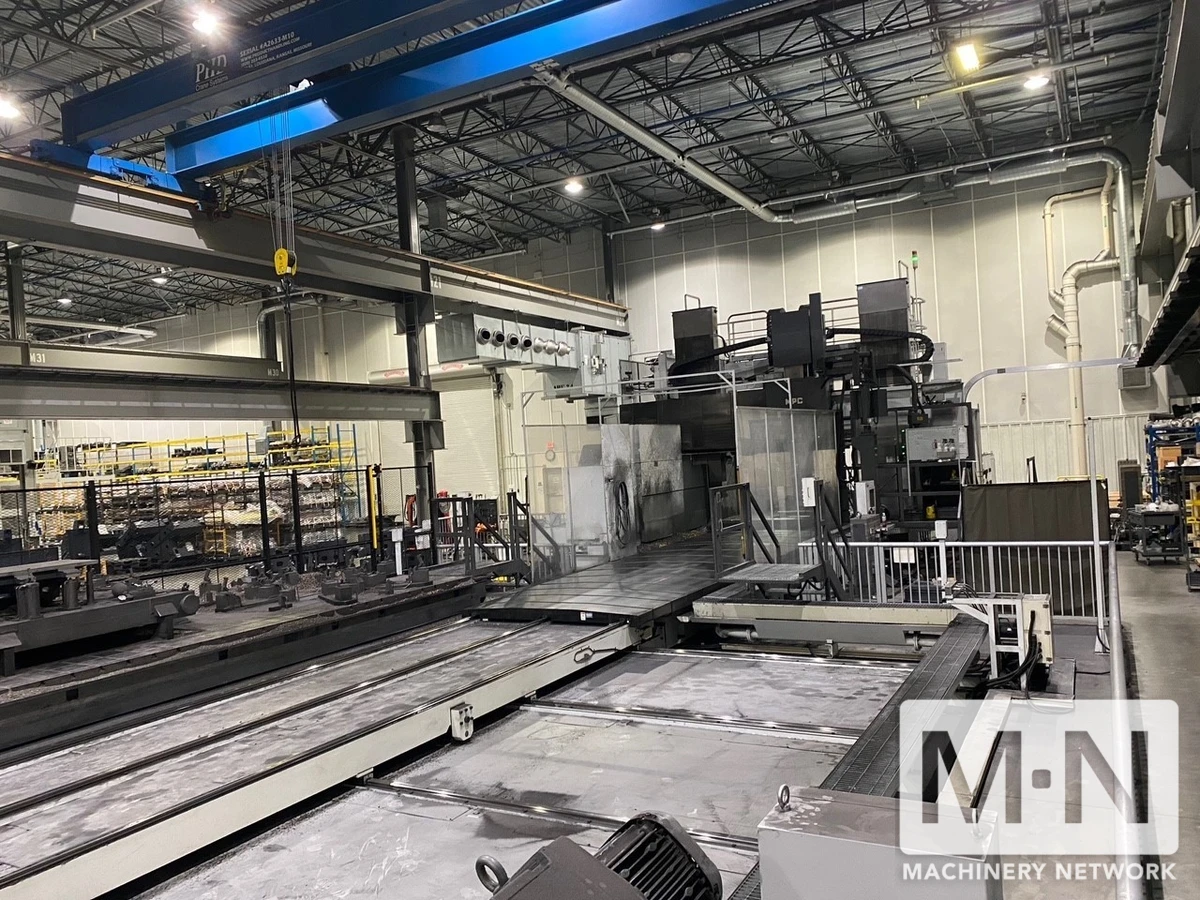

Toshiba MPC-3180B 5-Face Bridge Type Vertical Machining Center, New 2012
ConditionUsed
1 available
Fanuc 31i CNC Control, Dual Pallet Changer, 120 Position Automatic Tool Changer, Automatic Attachment Index (AAI), Attachments: Snout, Deep 90 Degree, 5-Face, 90 Degree
Working Surface of Table (2) 315" x 106"
Table Load Capacity 44,000 Lbs.
Travels – X-Axis 354.3"
- Y-Axis 153.5"
- Z-Axis 35.4"
- W-Axis 63"
Distance Table Top to Vertical Spindle Nose 96.1"
Maximum Distance Between Columns 122.0"
Spindle Motor 40 HP
Spindle Speeds 5 - 3000 RPM
Spindle Taper MAS BT50
Tool changer capacity 180 Tools
Maximum Tool Length 23.6"
Maximum Tool Diameter 11.4"/5.9"
Maximum Tool Weight 66 Lbs.
Overall Dimensions (Approx.) 96' x 33' x 25' H
Weight (Est.) 330,000 Lbs.
Fanuc 31i CNC Control,
Dual Pallet Changer
Automatic Attachment Index (AAI),
Right angle indexing head - 72 pos/5 deg
Small angle head
Snout 190 milling head
