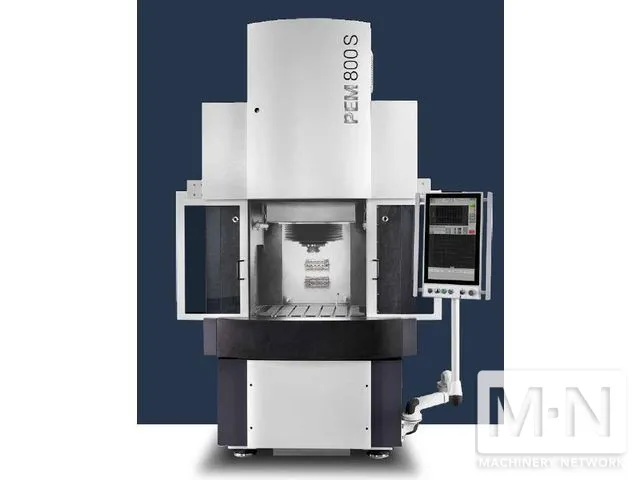

The PEM 800 machine produces high precision metal parts that are absolutely burr-free without thermal or mechanical stresses, microcracks, white layers or electrode wear. The non-contact machining process delivers surface finishes down to (and better than
** MACHINE IS IN STORAGE AND HAS LESS THAN 100 HOURS**
REPLACEMENT COST: APPROXIMATELY $800K
STRUCTURE: Exceptionally rigid natural granite frame on vibration-isolating feet. Stationary machining table with integrated stainless steel T-slots.
TABLE DIMENSIONS: 17.7” x 17.7” (W x D).
Worktable height: 37.2”
FOOTPRINT: 213.9” x 85.04”, including PEMAQUA 2,000 L electrolyte preparation
VERTICAL FEED: Air bearing maintenance-free precision direct drive axis. OSCILLATION RANGE: Choose at time of order: 0.4mm or 0.2mm MEASURING SYSTEM: High resolution absolute linear digital glass scales FIXTURE CLAMPING: 4 T-Slots (M12) in table
OPERATION: Ambient temperature: 60°F to 95°F (15°C to 35°C).
The highest precision reached at a constant temperature of 68°F (20°C).
Relative Humidity Max: 75% at 68°F (20°C)
GENERATOR: Water-cooled modular generator w/ precision pulse power — monitoring voltage, current and pulse length in the µ-second range. Choice of 1,200 to 9,600 A output (available in increments of 1200 A)
ELECTROLYTE PREPARATION: Environmentally-friendly PEMAqua electrolyte conditioning system w/ multi-chamber tank & overflow protection.
INSTALLATION: No special machine foundation or footing required. WEIGHT: 4629 lbs (2100 kg) approx.
AXES: A- and C-axis optional for added versatility
CONTROL: PEMControl w/ HMI PC keyboard and 17” touchscreen.
