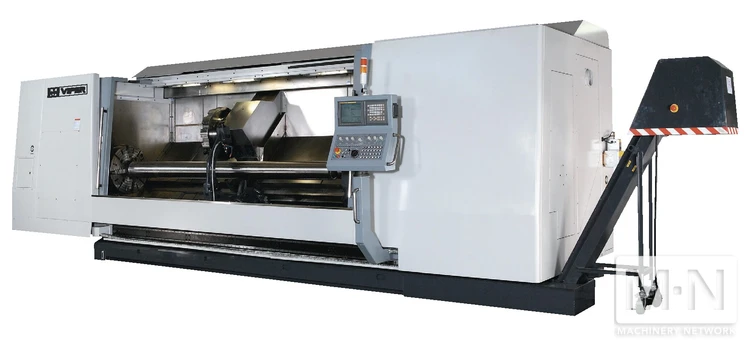

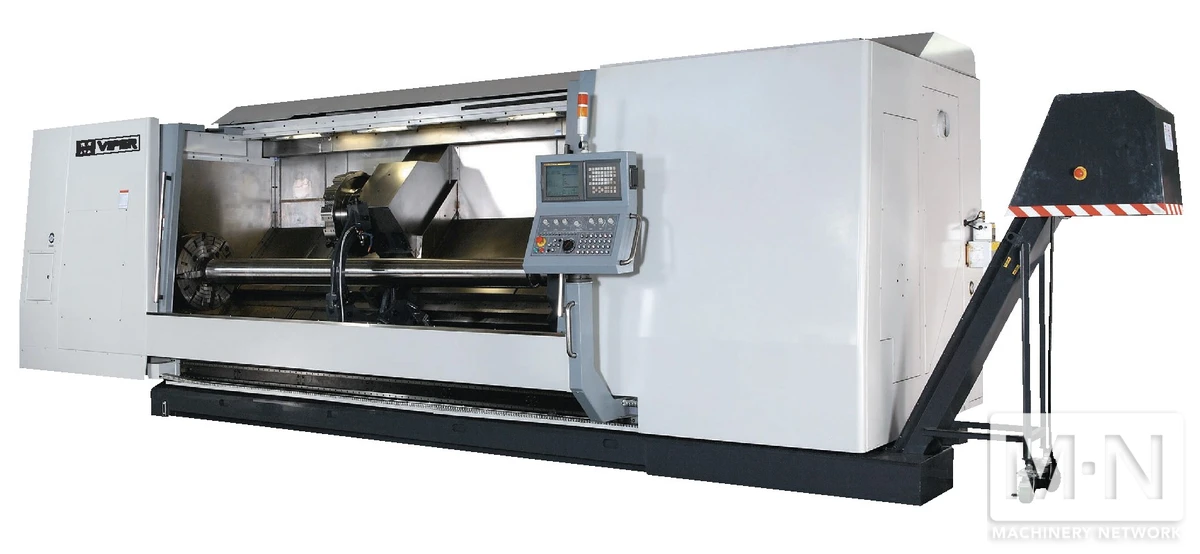

Mighty Viper VT-40BM x2000 High-Precision CNC Turning Machine
ConditionUsed
1 available
31.29" max turning diameter, 77.17 max turning length, 9.4" bar capacity, two-step gearbox, Star Type VDI-60 live turret, Mitsubishi M70L CNC control, Samchully 24" 3-jaw hydraulic chuck, manual tool presetter, Heidenheim C-axis encoder, programmable tailstock, link-type chip conveyor, coolant system, heat exchanger
Turning Dia: 31.3"
Star Type VDI-60 live turret
Samchully 24" 3-jaw hydraulic chuck
Manual tool presetter
Heidenheim C-axis encoder
Programmable tailstock
Link-type chip conveyor
Coolant system
Heat exchanger
31.29" max turning diameter, 77.17 max turning length, 9.4" bar capacity, two-step gearbox, Star Type VDI-60 live turret, Mitsubishi M70L CNC control, Samchully 24" 3-jaw hydraulic chuck, manual tool presetter, Heidenheim C-axis encoder, programmable tailstock, link-type chip conveyor, coolant system, heat exchanger
Imperial
| Swing | 39.37" |
| Machining Length | 77.2" |
| Chuck Size | 24" |
| Bar Capacity | 7" |
| Power | 50 hp |
| Max RPM | 1,500 RPM |
| Tailstock | Yes |
| Live Tooling | Yes |
| Sub Spindle | No |
| Control | CNC (Mitsubishi M70L CNC control) |
Turning Dia: 31.3"
Star Type VDI-60 live turret
Samchully 24" 3-jaw hydraulic chuck
Manual tool presetter
Heidenheim C-axis encoder
Programmable tailstock
Link-type chip conveyor
Coolant system
Heat exchanger
