2012 MESSER HI DEF PLATEMASTER DUAL 400 AMP PLASMA CUTTER

Table Size: 8' x 20'
Cutting Width/Length: ~96" x 240"
Machine Type: CNC gantry plasma cutting system
Rail System: Heavy-duty floor-mounted rails
Drive System: Dual-side drives (rack & pinion)
Rapid Traverse: ~1,000 IPM
Cutting Speed: ~170 IPM (material dependent)
Positioning Accuracy: ±0.010"
Repeatability: ±0.010"

🧠 Control System
Control: Messer Global CNC Control (PC-based)
Interface: Color touchscreen operator console
Software: OmniWin / OmniFab (typical Messer platform)

⚡ Plasma System (Hi-Def)
Typical configuration for your machine:
Power Source: (2) Hypertherm HPR400XD (400 amp each)
Total Capacity: Equivalent to ~800 amp system (dual gantry capability)
Technology: HyDefinition / True Hole

🔥 Cutting Capacity (HPR400XD)
Mild Steel (production pierce): ~2"
Mild Steel (max cut): up to 3.2"
Stainless Steel: up to ~3"
Aluminum: up to ~3"
Dross-free cut quality: ~1–1.5" mild steel

🔩 Cutting Features
True Hole® technology (improved hole roundness)
Auto gas console (Hypertherm)
Torch height control (THC): automatic sensing
Multi-torch capability: supports dual plasma + oxy-fuel

🔥 Oxy-Fuel (if equipped)
Auto ignition + height control
Thick plate cutting (up to 6"+ depending on setup)

🌬️ Table & Dust Collection

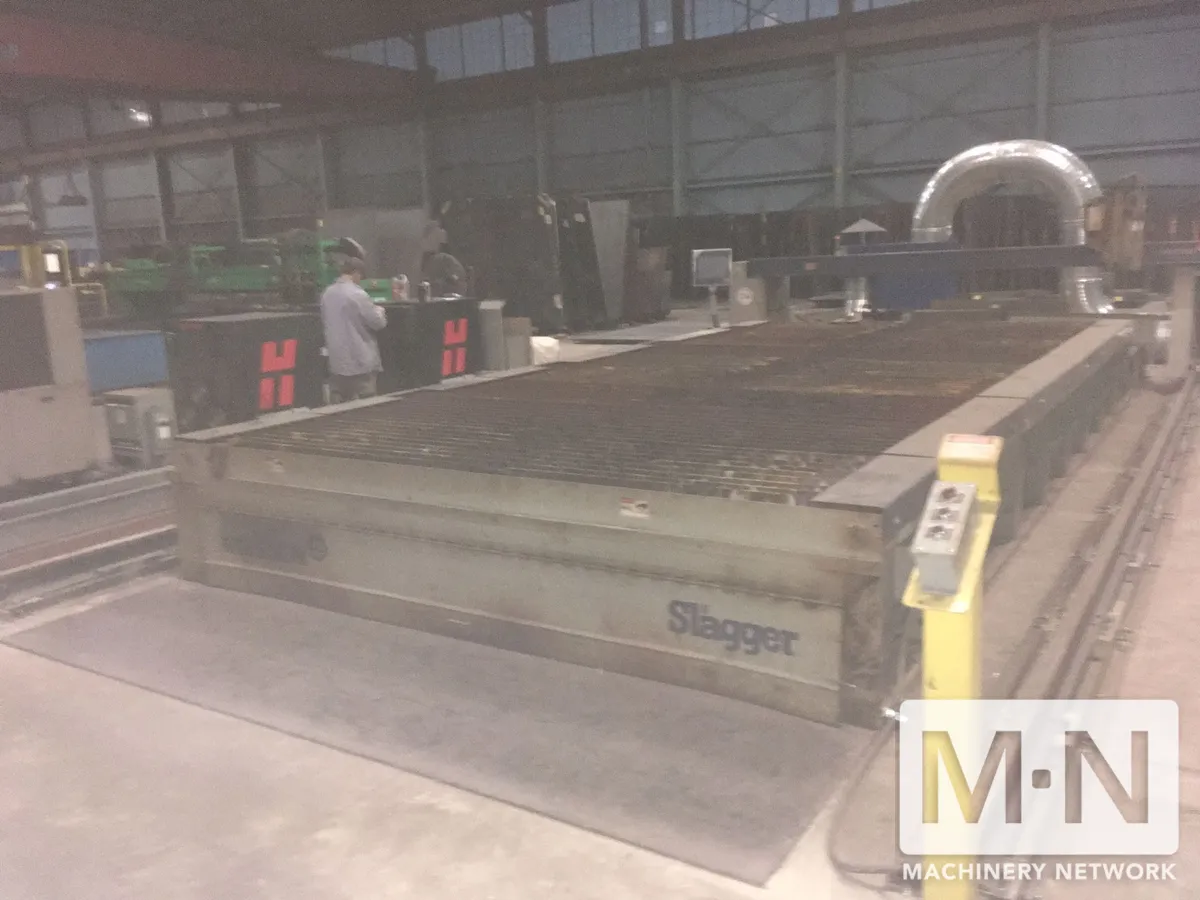

Table Type: Messer Slagger downdraft table

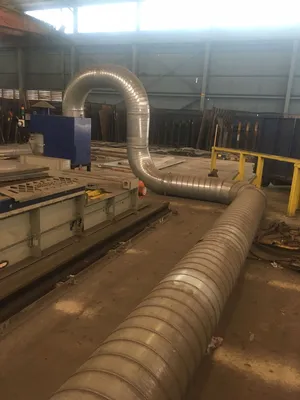

Zoned extraction: improves fume removal

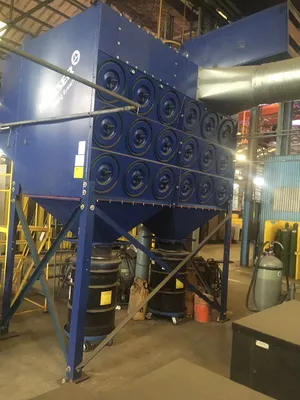

Dust Collector: Typically Torit Downflo system
Slag Removal: Mechanical slagger system with trays/buckets

⚙️ Electrical / Physical
Power Requirement: ~480V, 3-phase
Operating Temp: 32–131°F
Approx Weight: ~10,000 lbs (machine only, varies with options)

🏭 Materials & Capabilities
Mild steel, stainless steel, aluminum
Fine-feature cutting + production plate cutting

Capable of:
Nested parts production
Structural plate work
Heavy fab components

A 2012 PlateMaster with dual 400 amps is:
Production-level system (not entry-level)
Comparable to modern mid-tier plasma tables (but older controls)
Best performance range:
1/4" to 1.5" steel (high productivity)
Up to 3"+ when needed
