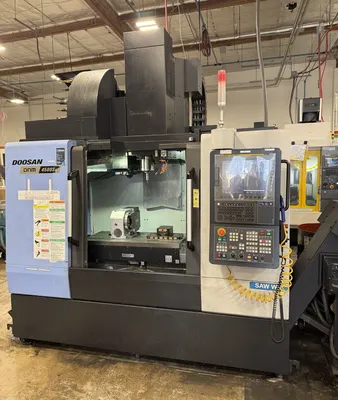

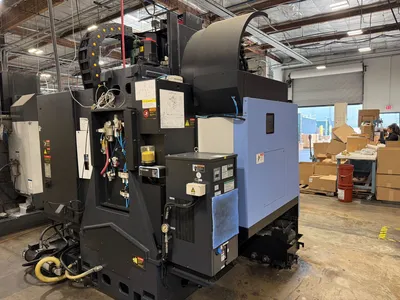

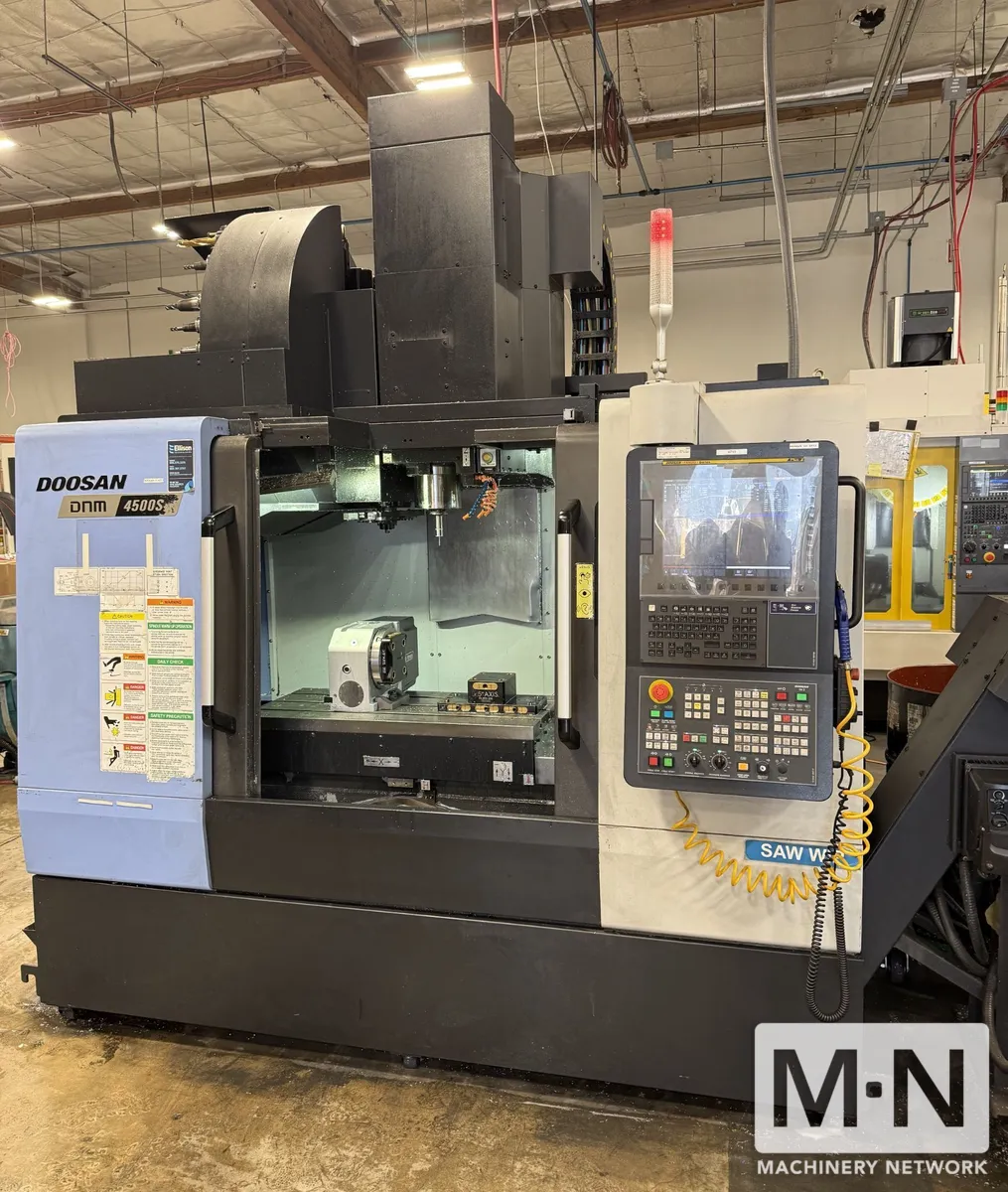

Doosan DNM 4500S CNC Vertical Machining Center, 2020

Doosan DNM 4500S CNC Vertical Machining Center, 2020

Sell Your DOOSAN DNM 4500S
+ 1 (818) 465-6700
info@machinerynetwork.com
ConditionUsed
1 available
Sell Your DOOSAN DNM 4500S

Overview

Type:
Vertical Machining Centers
Manufacturer:
DOOSAN
Model:
DNM 4500S
Year:
2020
Stock #:
53120
Status:
For Sale

Description

Doosan DNM 4500S CNC Vertical Machining Center, 2020 model with robust specifications: 31" x-axis, 18" y-axis, 20" z-axis travel. Features Fanuc i CNC, Detron 4th Axis, and more. Excellent for high-speed operations with a 25 hp spindle motor at 15,000 RPM.

X Axis Travel31"787.4 mm
Y Axis Travel18"457.2 mm
Z Axis Travel20"508 mm
Rapid Traverse X1,654 in/min.4,201.2 cm/min.
Rapid Traverse Y1,654 in/sec.252,069.6 cm/min.
Rapid Traverse Z1,417 in/min.3,599.2 cm/min.
Spindle Motor25 hp18.6 kW
Spindle Speed15,000 RPM15,000 RPM
# Axis44
Table-W18"457.2 mm
Table-L39"990.6 mm
Max. Table Load1,323 Lbs1,323 Lbs
Dimensions85" x 103" x 118"85" x 103" x 118"
Weight11,023 Lbs11,023 Lbs

Fanuc i CNC Control

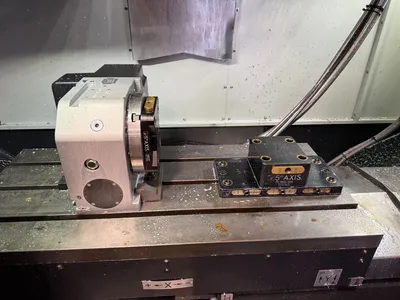

4th Axis Detron GXA-210S Rotary Table
Through Spindle Coolant
LNS Belt Chip Conveyor
15k Spindle
Renshaw Probe & Tool Setter
