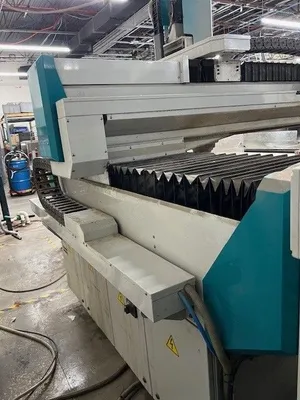

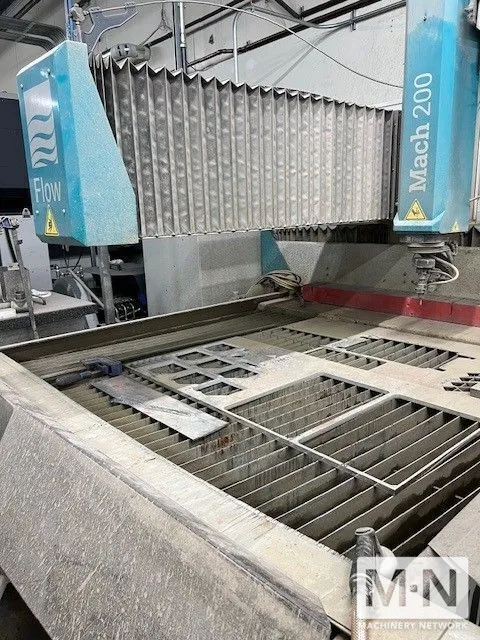

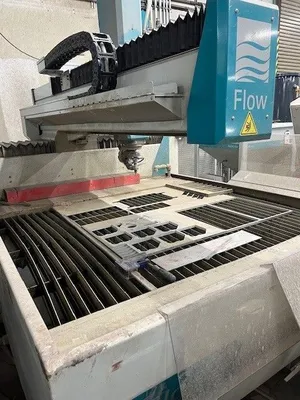

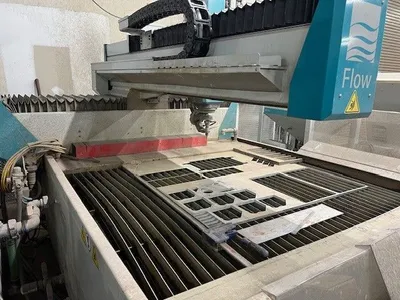

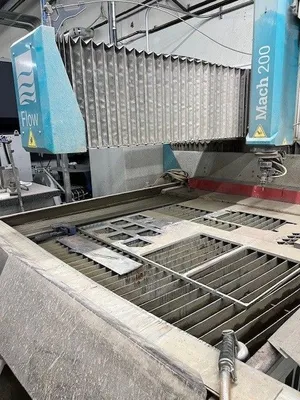

FLOW MACH 200 1313 PIVOT 5-AXIS CNC WATERJET, 2019

Flow Mach 200 1313 Pivot — Specifications
📐 Work Envelope & Table
Cutting area (1313): 4′-3″ × 4′-3″ (1.3 m × 1.3 m)
Table type: Open gantry, 3-sided access for loading
Typical footprint: Compact shop footprint (exact depends on options)
⚙️ Motion System
Rapid traverse speed: up to 400 in/min (10.16 m/min)
Acceleration: ~0.05 g
Z-axis travel: 8 in (203 mm)
Accuracy
Linear positional accuracy: ±0.002 in (±0.051 mm)
Repeatability: ±0.001 in (±0.025 mm)
Ballbar circularity: ±0.005 in (±0.127 mm)

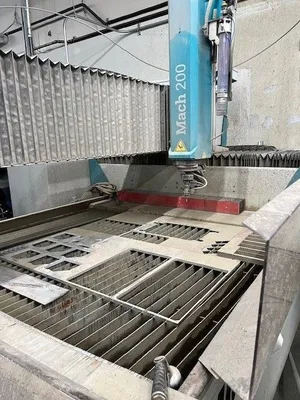

💧 Cutting System (Pivot+ Head)
Type: 5-axis abrasive waterjet (bevel cutting + taper compensation)
Angular motion: up to ±60° bevel capability
Wrist speed: up to 120 RPM
Protection rating: IP67 (industrial sealed)
Capabilities
True 5-axis cutting
Taper compensation for straight walls
Complex bevels (weld prep, countersinks, 3D edges)

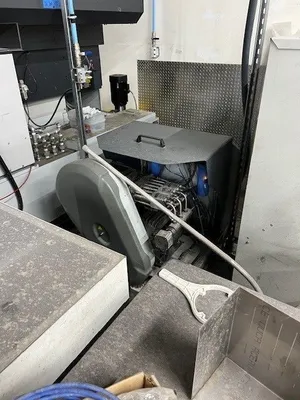

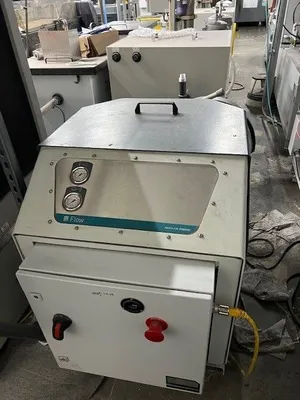

🔧 Pump / Pressure Options

(Varies by configuration)

Operating pressure: up to 60,000 psi (4,150 bar)
Pump options:
HyPlex® Prime (direct drive)
