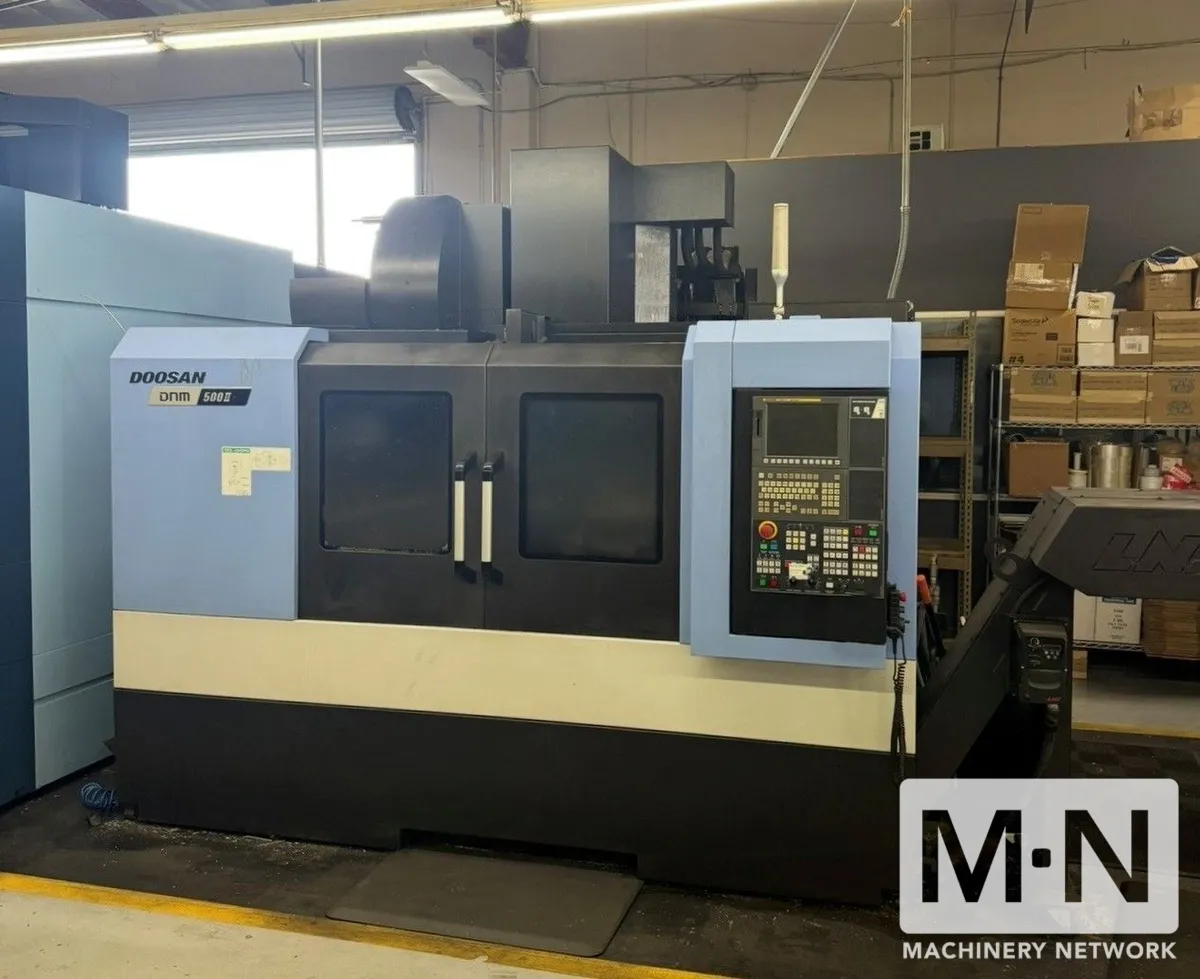

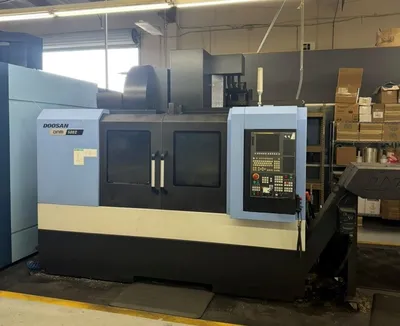

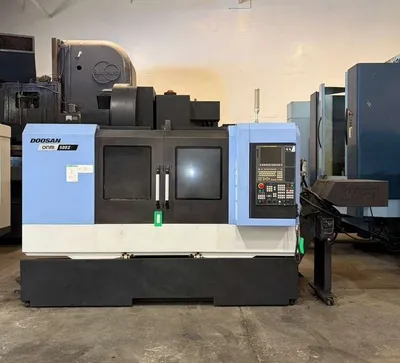

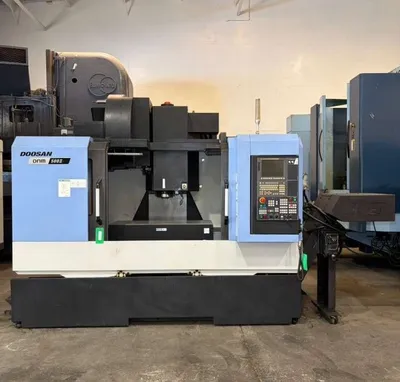

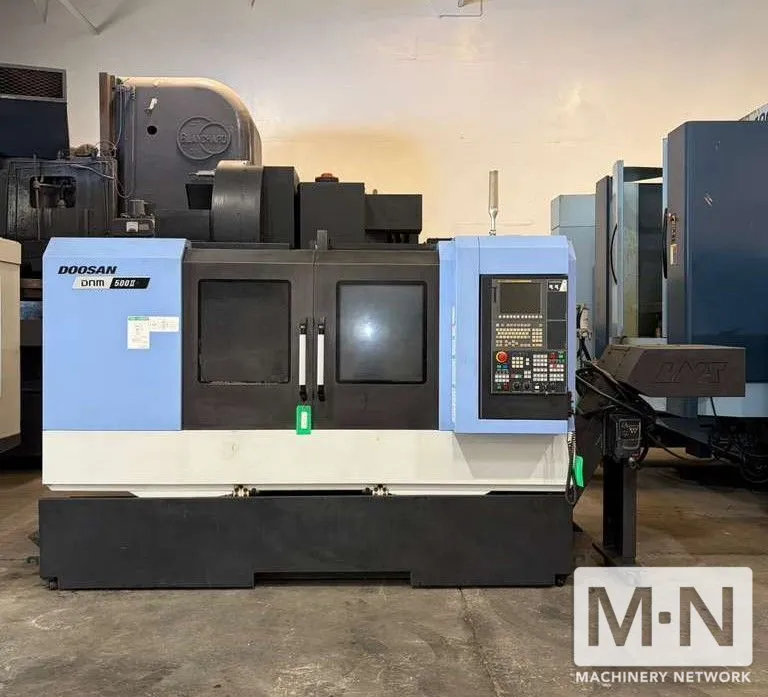

Doosan DNM 500 II CNC Vertical Machining Center, 2015

Doosan DNM 500 II CNC Vertical Machining Center, 2015

Sell Your DOOSAN DNM 500II
+ 1 (818) 465-6700
info@machinerynetwork.com
ConditionUsed
1 available
Sell Your DOOSAN DNM 500II

Overview

Type:
Vertical Machining Centers
Manufacturer:
DOOSAN
Model:
DNM 500II
Year:
2015
Stock #:
53087
Status:
For Sale
X Axis Travel40.2"1,021.1 mm
Y Axis Travel21.3"541.02 mm
Z Axis Travel20.1"510.54 mm
Cutting Feed Rate590 IPM590 IPM
Rapid Traverse X1,417 in/min.3,599.2 cm/min.
Rapid Traverse Y1,417 in/sec.215,950.8 cm/min.
Rapid Traverse Z1,181 in/min.2,999.7 cm/min.
Distance From Spindle To Column5.9″ – 26"5.9″ – 26"
Spindle Motor12 hp8.9 kW

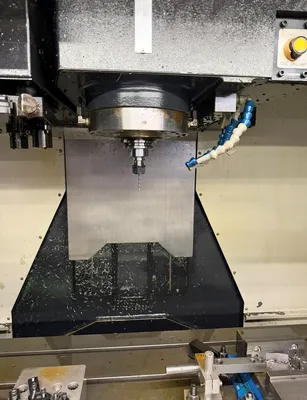

Spindle Speed8,000 RPM8,000 RPM

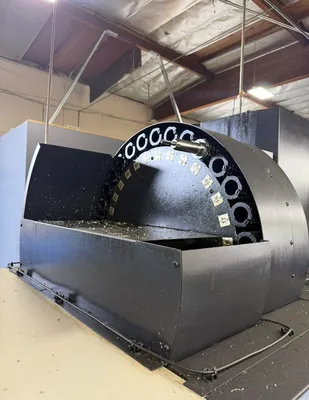

ATC Capacity3030
Spindle TaperCAT40CAT40
# Axis33
Cut Hours4,127 hr.4,127 hr.

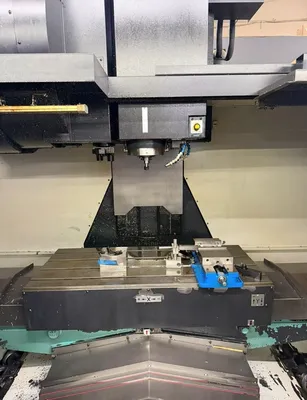

Table-W21.3"541.02 mm
Table-L47.2"1,198.9 mm
Max. Table Load1764 Lbs1764 Lbs
Dimensions116″ x 96″ x 107″ High116″ x 96″ x 107″ High
Weight14,330 Lbs14,330 Lbs

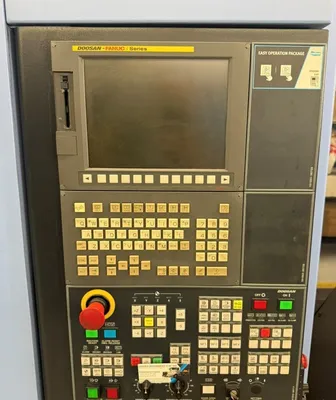

FANUC i CNC Control
Thru Spindle Coolant
Renishaw Receiver Installed
USB Drive
PCMCIA Card Slot & RS-232 Port
MPG Hand Wheel Control
Automatic Lubrication System
Rigid Tapping
Coolant System

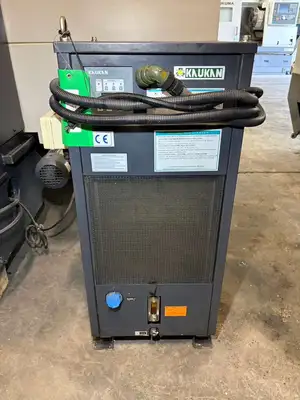

Spindle Chiller Unit

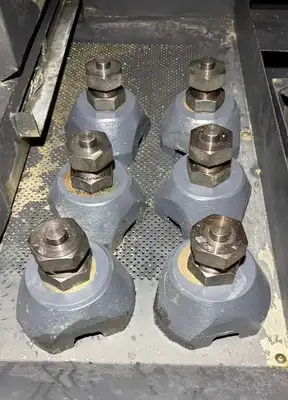

Levelling Pads

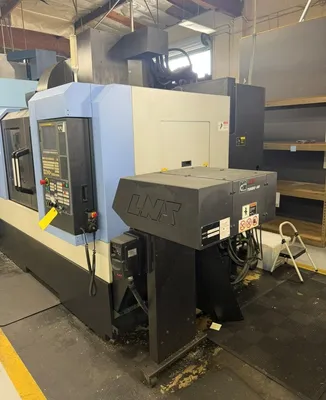

LNS Chip Conveyor
