Core Cutting Capacities
Rectangular capacity: 0–22" W × 0–30" H
Square capacity: 0–22"
Round capacity: 0–22" diameter
Miter capacities (from Saw Systems):
22" W × 20" @ 45° left
22" W × 20" @ 45° right
22" W × 13.5" @ 60° left
22" W × 13" @ 60° right
Blade & Feed System
Blade size: 20' 0" L × 1.5" H × 0.050" thick
Blade type: Bandsaw
Blade speed: Variable (with readout on touchscreen)
Bar‑feed stroke: 0–48" hydraulic (standard), optional 0–120" servo twin‑ball‑screw feed with 3rd vise
Power & Drive
Main motor: 10 HP
Hydraulic motor: 5 HP
Power requirement: 220V/3PH or 440V/3PH (not dual‑voltage)
Operation: Fully automatic hydraulic system

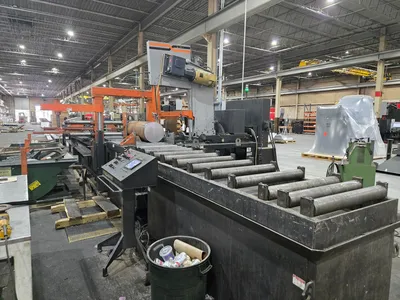

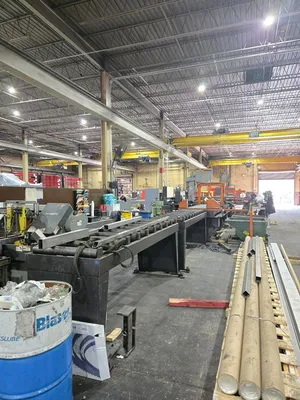

128" Ball Screw Roller Table
Pedestal Control
Swing Away Top Clamp
