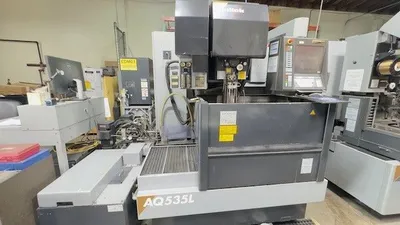

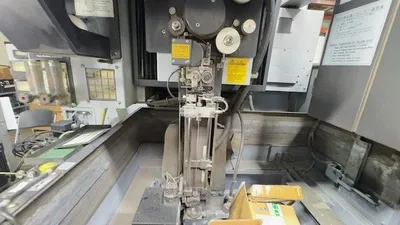

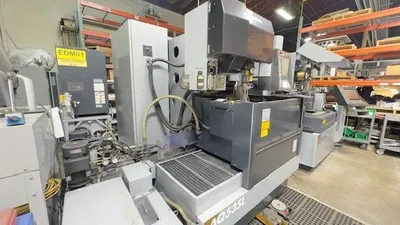

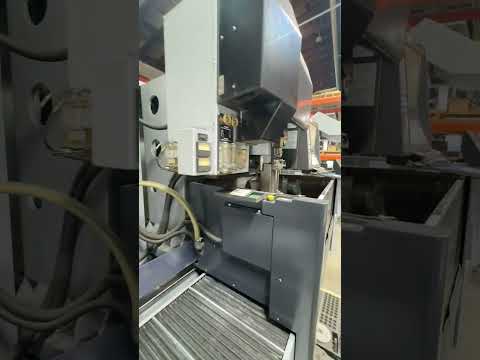

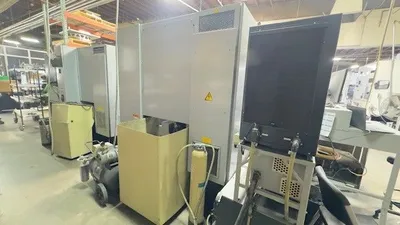

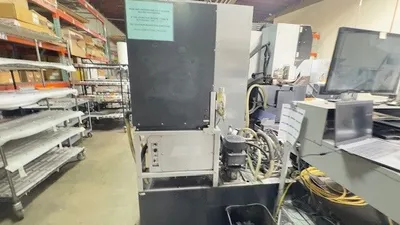

Sodick AQ535L Wire EDM, 2004
ConditionUsed
1 available
LQ1W ctrl, 21.6" x 13.7" x 11.8", chiller, New 2004
Travels - X axis .......... 21.6"
- Y axis .......... 13.7"
- Z axis .......... 11.8"
- U/V axis ........ 3.1"
Max workpiece weight ...... 1760 lbs
Work tank dimensions ...... 43.3" x 28.3"
Work table ................ 31.1" x 19.6"
Rapid traverse ............ 35 IPM
Wire diameter ............. 0.006" - .012"
Approximate size .......... 78" x 96" x 93"
Approximate weight ........ 9,000 lbs
