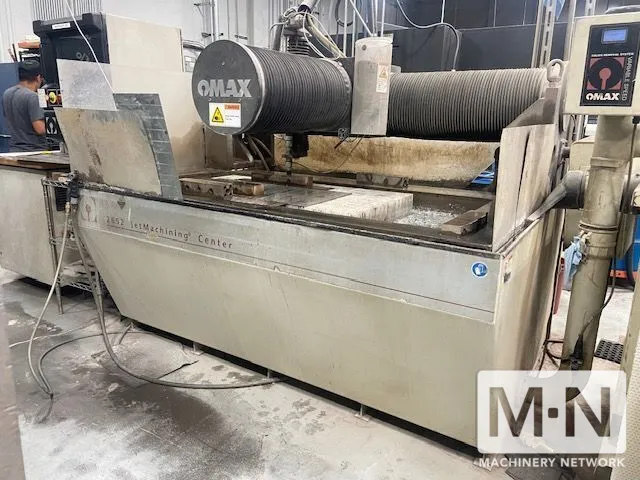

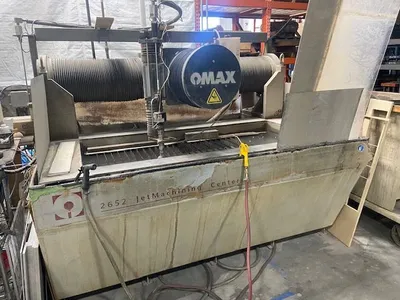

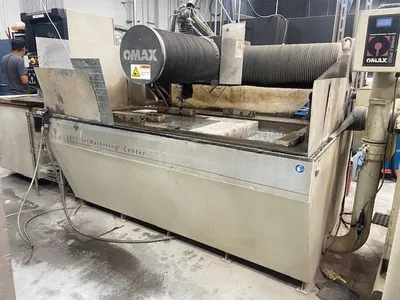

2007 OMAX 2652 CNC WATERJET

Table size 69″ x 30″
Cutting envelope of 4′ – 4″ x 2′ – 2″

Material:
Load – maximum 400 Lbs./Sq. Ft.
Support slats 4″ x 1/8″

Travels:
X-Axis 52″
Y-Axis 26″
Z-Axis 8″
Speed 180 IPM

Accuracy:
Linear positional +/-0.001″
Repeatability +/-0.001″
Ballbar circularity +/-0.0025″

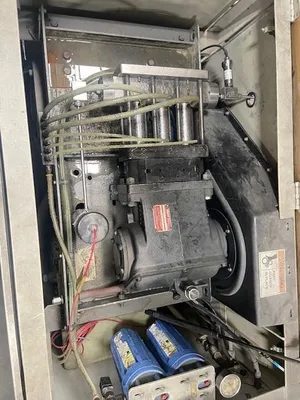

EnduroMAX Pump:
Motor 30 HP
Jet Power – maximum 42.5 HP
Output pressure 60,000 PSI
Orifice 0.016″
Flow rate 1.2 GPM
Electrics 380V – 480V/3PH/50Hz – 60 Hz
Footprint: 11′ 7″ (L-R) x 5′ 7″ (F-B)

Machine Weight:
Tank empty 3,320 Lbs.
Tank full 9,150 Lbs.
