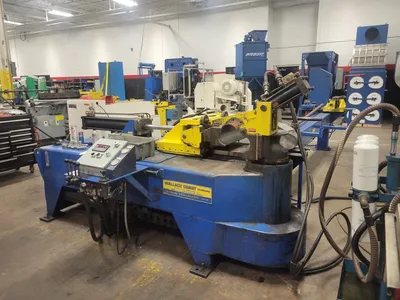

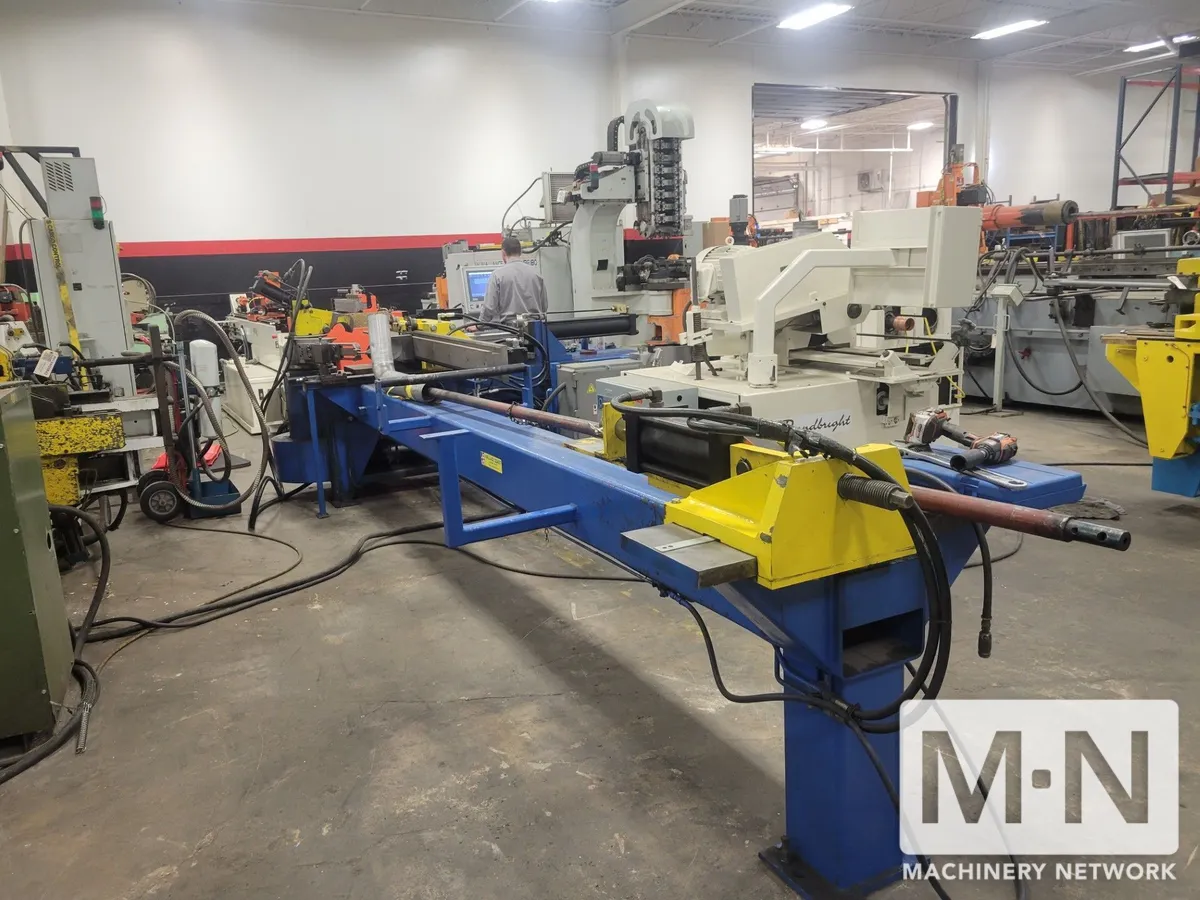

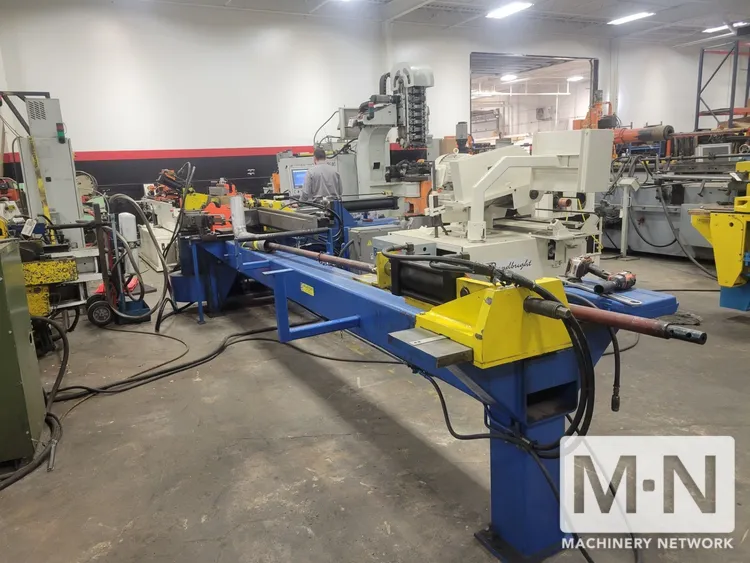

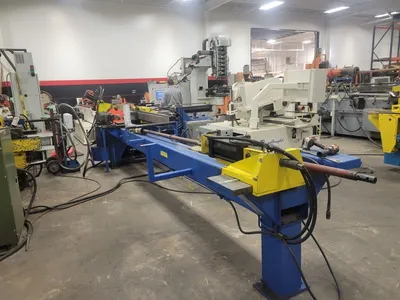

WALLACE COAST 6RD/1004 HYDRAULIC PIPE & TUBE BENDER
ConditionUsed
1 available
Maximum pipe diameter: 4” (100mm) Schedule
80
Maximum tube diameter: 5"OD x .1875"WT
Maximum degree of bend: 180° + springback
Maximum tube length over mandrel: 20’ (approx.)
Bending Rotation: Left-hand (counter-clockwise)
Maximum CLR - 30" approx
Machine mounted operator controls
Hydraulic clamp die
Hydraulic bend die & action
Hydraulic pressure die
Hydraulic boost clamp
Hydraulic mandrel extractor
Digital degree of bend readout
Pressure die assist (boost)
Mandrel Extractor
Top mounted Hydraulic clamp
3".065 Dies 3" & 4" Centerline
4".065 Dies 4' Centerline
