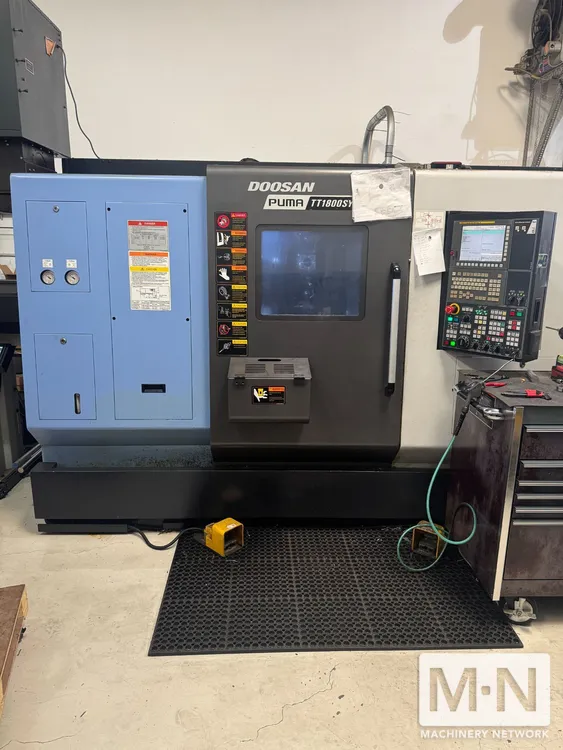

Doosan Puma TT1800SY CNC Lathe, 2016 - Twin Turret & Live Tooling

Doosan Puma TT1800SY CNC Lathe, 2016 - Twin Turret & Live Tooling

Sell Your DOOSAN PUMA TT1800SY
+ 1 (818) 465-6700
info@machinerynetwork.com
ConditionUsed
1 available
Sell Your DOOSAN PUMA TT1800SY

Overview

Type:
CNC Lathes
Manufacturer:
DOOSAN
Model:
PUMA TT1800SY
Year:
2016
Stock #:
52738
Status:
For Sale

Description

2016 Doosan Puma TT1800SY CNC Lathe available. Twin turret, 9.1" swing, 27.6" Z-axis, and dual 8" chucks with 2.65 bar capacity. Features Fanuc 31i-B CNC control, sub spindle, chip conveyor, 30 hp, and 5000 RPM max.

Swing9.1"231.14 mm
Max. Turning Diameter9.1"231.14 mm
X-Axis6.5"165.1 mm
Y-Axis3.9"3.9"
Z-Axis27.6"701.04 mm
Chuck Size8"203.2 mm
Chuck Size Right88
Bar Capacity Left Head2.652.65
Bar Capacity Right Head2.652.65
Spindle NoseA2-6A2-6
Power30 hp22.4 kW
Max RPM5,000 RPM5,000 RPM
Live ToolingYesYes
Sub SpindleYesYes
Dimensions154" x 82" x 82"154" x 82" x 82"
Weight17,196 LBS17,196 LBS

Fanuc 31i-B CNC Control
LNS Bar Feeder
High Pressure Coolant
Mist Collector
Twin Turret
Chip Conveyor
Includes 6 Live Tools (3 Right Angle, 3 Straight)
