2022 MAVERICK CNC 612 85 AMP PLASMA CUTTER

Z-axis Clearance: ……………. 5.5”
Z-axis Travel: ………………….6”
Repeatability: …………………+/- .001”
Cutting Speed: ………………..800 ipm
Rapid Traverse: ………………1200 ipm
Drive System X, Y, Z Axis:…..Rack & Pinion
Standard Work Surface: ……Steel Slat

Compact unitized construction, custom forklift pockets
Fully-welded frame, heavy-duty material support configured for both downdraft or water

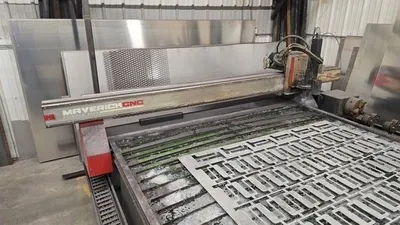

6″ x 6″ precision machined aluminum gantry engineered for maximum stiffness
6″ clearance under gantry
Oversized self-cleaning dual V-groove bearings riding on harden machined V-guide rails
Dual linear bearings on Z axis for smooth motion
Powerful 940 oz-in Nema 34 motors with zero backlash drive system
Automatic torch height controller with magnetic breakaway system
Arc voltage sampling to follow variations in material
MaverickCNC Touchscreen CNC Controller
Integrated Hypertherm Pronest LT CAD/CAM/CNC software designed to be user friendly for the novice or the experienced operator
Complete integration with Hypertherm
Laser cut slat brackets with offset slat pattern for increased table rigidity
Dual side drives with fully enclosed z axis motors and custom end trucks, all axis cable tracks
