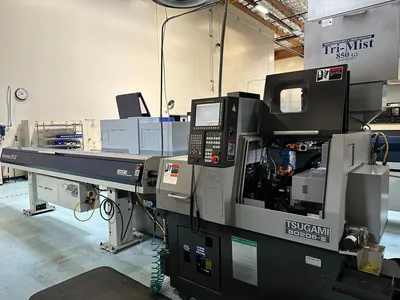

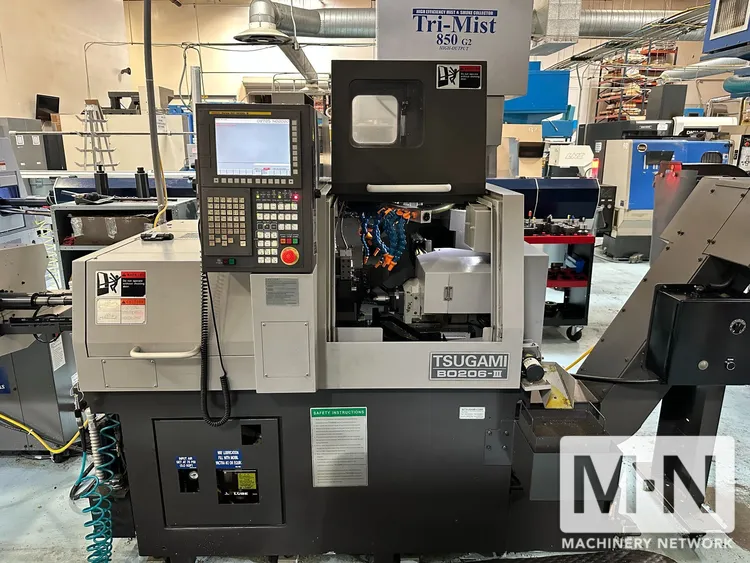

Tsugami BO206-III CNC Swiss Lathe, 2016

Spindle Hole Dia.:...............................0.79"
# Axis:..........................................6
Max Length: with Guide Bushing".................8.26"
Max Length: w/o Guide Bushing....................1.77"
# Tool Positions (std / max):....................25 (std)
# Live Tool Positions (std / max):...............2 (optional)
Main Spindle Speed:..............................200 - 10,000 rpm
Sub Spindle Speed:...............................200 - 12,000 rpm
Rotary Axis:.................................... Main Spindle Full "C"
Back Spindle 1 degree
Live Tool Speed:.................................8,000 rpm
Axis.............................................0.5 kW (X1,X2,Y1,Y2,Z1,Z2)
Cross Drill:.....................................0.75 kW (option)
Coolant Pump:................................... 0.25 kW
Lubricating Oil Pump: ...........................3 W
