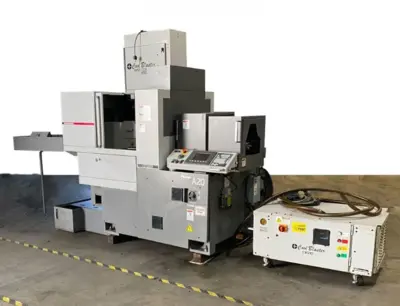

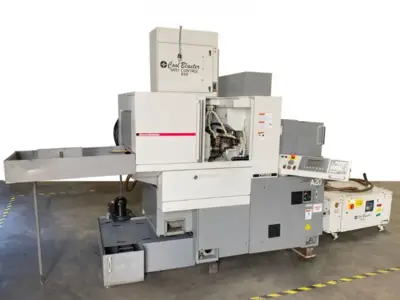

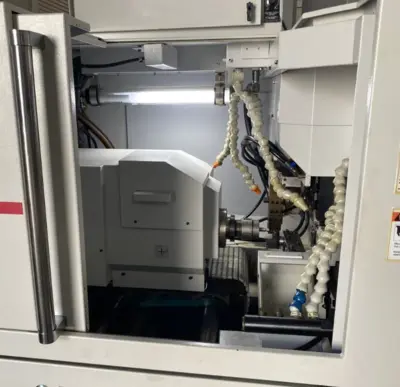

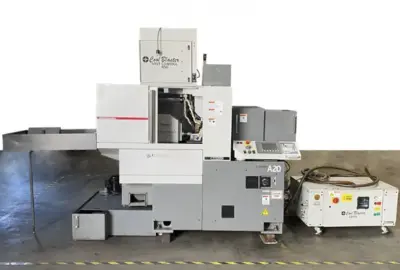

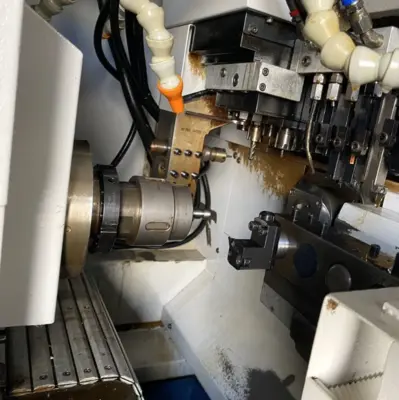

Citizen A20VIIPL CNC Automatic Screw Machine, 2014

Capacity:
Max Turning Diameter: 25/32″
Max Turning Length: 7.87″
Max Protrusion Length of the Back Spindle Workpiece: 1.96″
Max Bar Capacity: 0.79″
Tool Capacity: 21

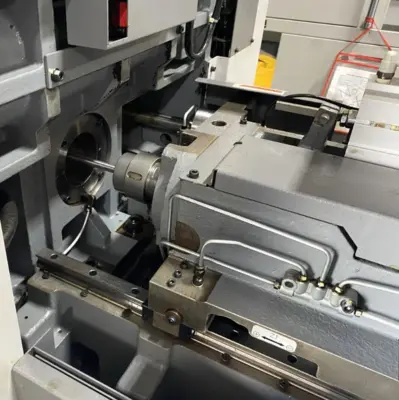

Spindle:
Main Spindle Index: 0.001 Degree (C-axis control)
Main Spindle Bore: 1.02″ (26 mm)
Main Spindle Speed: 10,000 RPM
Main Spindle Motor: 5 HP

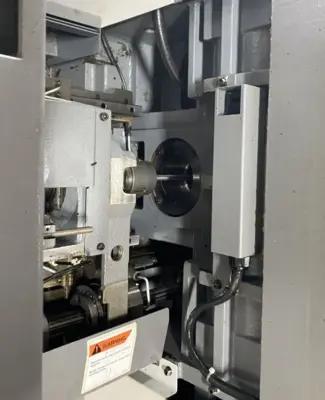

Back Spindle Index: 0.01 Degree (C-axis control)
Back Spindle Speed: 8,000 RPM
Back Spindle Motor: 2 HP

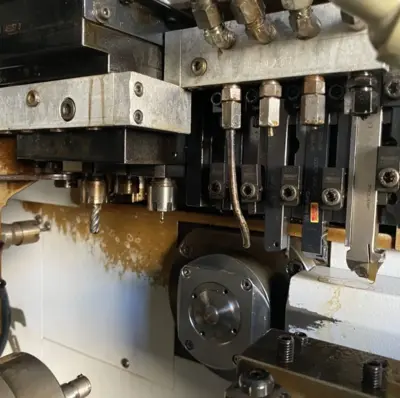

Standard Tools:
Turning Tools: 5
Front Endworking Tools: 5 Static
Back Endworking Tools: 8 Static on 2 Blocks
Max Drilling Capability: 25/64″
Max Tapping Capability: M8 X P1.25
Die Cutting Capability: M8 X P1.25

Power Driven Tools Attachment:
Front Working Power Driven Tools: 4
Max Front Drilling: 25/64″
Max Front Milling: 25/64″
Max Front Tapping: M8 x P1.25
Driven Tool Speed: 6000 RPM
Driven Tool Motor: 1 HP

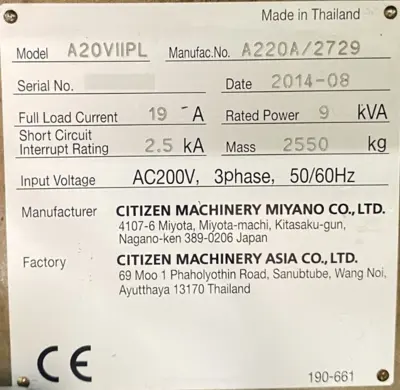

General:
Power Source: AC 220 V/ Three Phase/ 60 Hz
Overall Dimensions: 84″ x 44″ x 74″ High
Weight: 5,621 lbs Approx.
