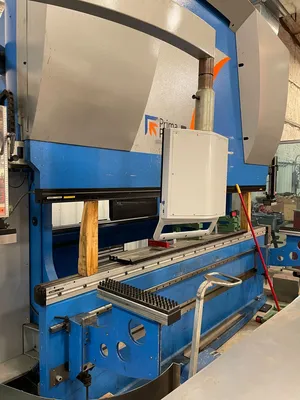

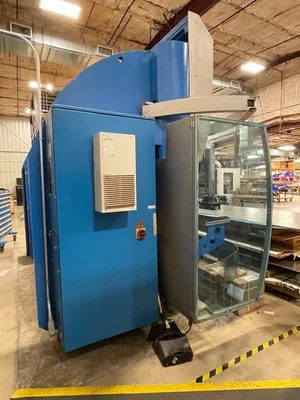

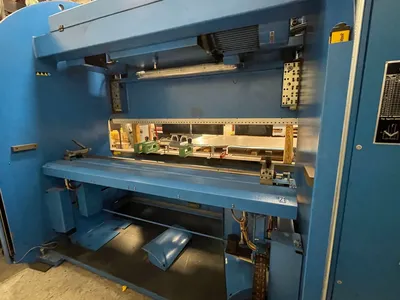

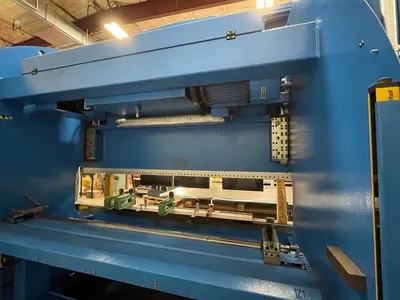

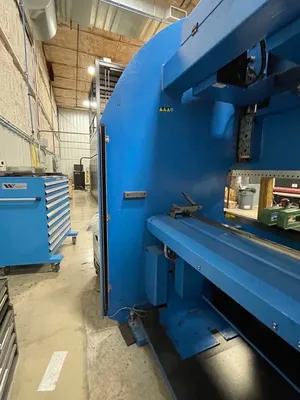

Adira PA 22030 Press Brake, 2011

Capacity: 225 Tons

Max. Working Length: 118.11”
Distance Between Housings: 100.39”
Max Stroke: 10.23”
Max. Open Height w/o Tools: 19.68”
Throat Depth: 15.74”
Tool Type: American
Motor Power: 20 HP
Approach Speed: 5.118 IPS
Working Speed: .314 IPS
Return Speed: 4.724 IPS
Stroke of Axis X: 24.60”
Speed of Axis X: 31.49 IPS
Stroke of Axis R: 7.874
Speed of Axis R: 7.874 IPS
Stroke of Axes Z – Z1/Z2: 3.54” – 84.64”
Speed of Axes Z – Z1/Z2: 47.24 IPS
Stroke of Axis X1: ±3.937
Speed of Axis X1: 3.937 IPS
Electrical: 480 Volts / 3 Phase / 60 Hz
Dimensions: L 148.42” x W 72.83” x H 116.33”
Weight: 21,000 Lbs.
