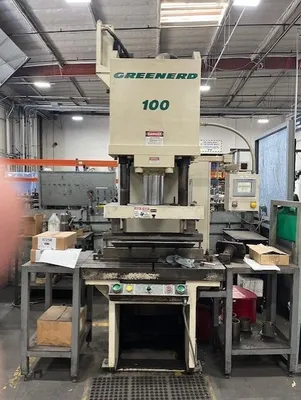

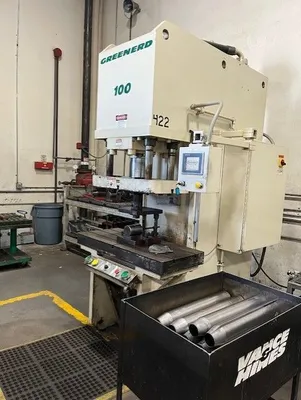

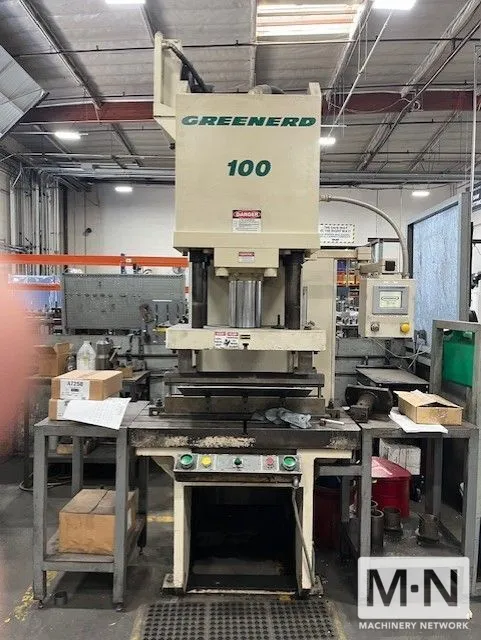

2007 GREENARD HCA-100 75R7 HYDRAULIC C-FRAME PRESS
ConditionUsed
1 available
TONS OF RAM FORCE ADJUSTABLE FROM 20 TO 100
TABLE DIMENSIONS 46" L-R X 20" F-B
THROAT 13"
DAYLIGHT 24"
STROKE ADJUSTABLE FROM 1" TO MAXIMUM 18"
FLOOR TO TABLE 38"
CLEARANCE BETWEEN RIBS UNDER PRESS BOLSTER 9"
PRESS SIZE 56" L-R x 78" F-B x 129" TALL
GUIDING SYSTEM 4 GUIDE POSTS
UPPER TOOLING PLATE 32" L-R x 18" F-B
HOLE PATTERN IN UPPER TOOLING PLATE (4) 25/32" hOLES, 9' x 16" PATTERN
PUMP CAPACITY 75 GPM & 7 GPM
CYLINDER BORE 10"
RAM DIAMETER 7"
RAM SPEED CLOSE 492 IPM
RAM SPEED PRESS 21 IPM
RAM SPEED OPEN 473 IPM
MAX. SYSTEM PRESSURE 2546
MOTOR 20 HP 1,800 RPM
WEIGHT APPROX, 15,000 LBS
MECHANICAL DUAL HAND CONTROLS
EMERGENCY STOP
KEYED SECTOR SWITCH FOR RUN OR JOG MODES
SOLID STATE PROGRAMMAVLE LOGIC CONTROLLER
STROKE CONTROL
DISTANCE REVERSAL
PRESSURE REVERSAL
PRE-SLOW DOWN CIRCUIT
AIR-COOLED HEAT EXCHANGER
