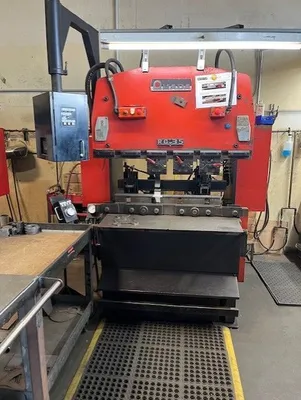

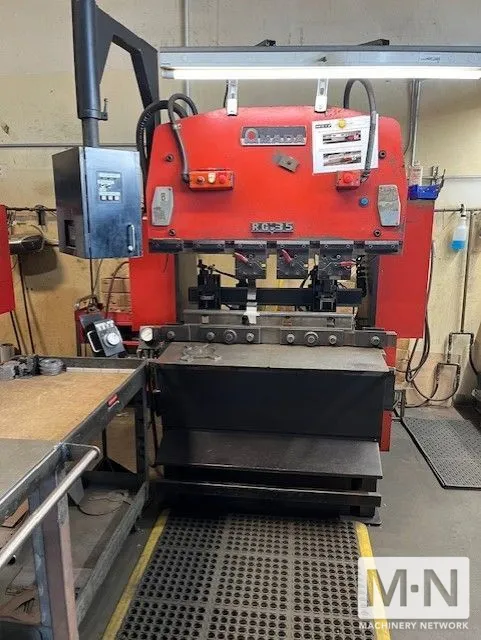

1997 AMADA RG-35S CNC HYDRAULIC PRESS BRAKE
ConditionUsed
1 available

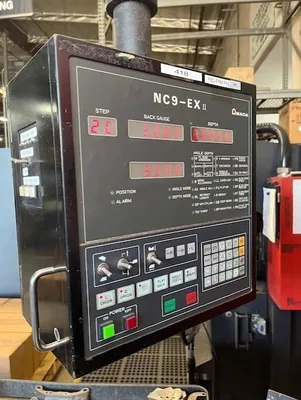

NC-9EX II 3-AXIS BACK GAUGE
…Capacity 35 tons -US Tons 38
Max. bending length 49.3"
Table length 47.3"
Distance between uprights 40.2"
Throat depth 7.88"
Length of stroke 3.94"
Open height 14.58"
Ram repeatability +/- .0004"
Back gauge travel 19.6"
Approach speed 106 ipm
Bend speed 2-19 ipm
Return speed 122 ipm
Main motor 3 HP
Input power 460 V 3PH
Hydraulic reservoir capacity 6.86 gallons
Machine dimensions 72"L x 46"D x 76"H
Machine weight 3,700 lbs
