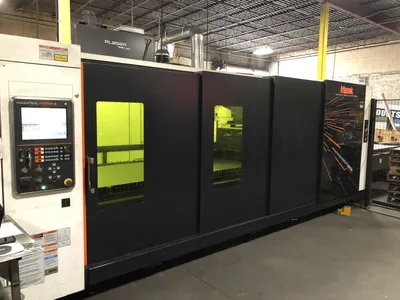

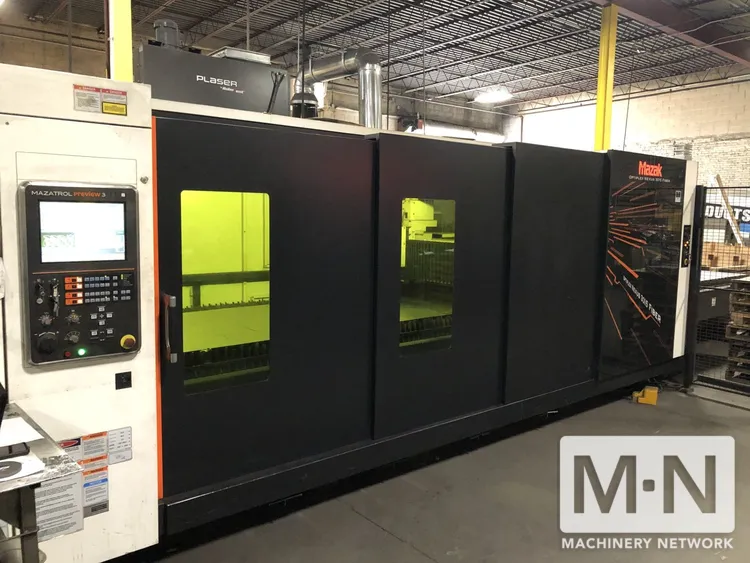

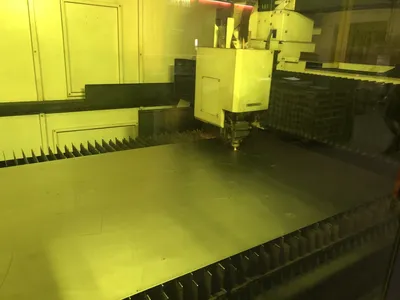

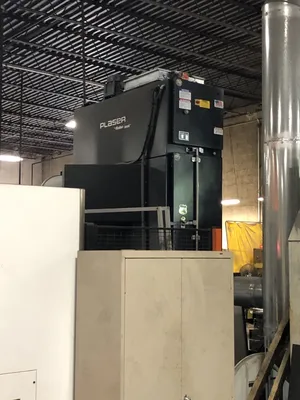

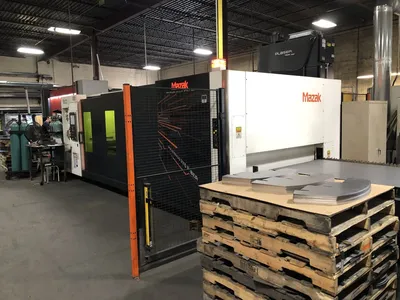

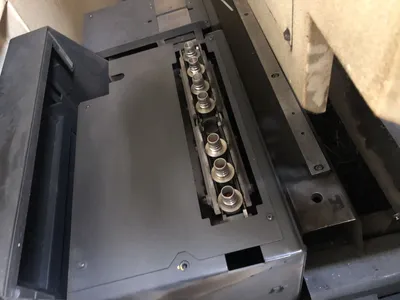

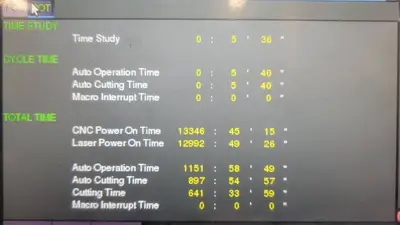

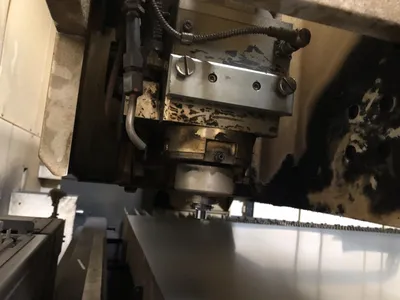

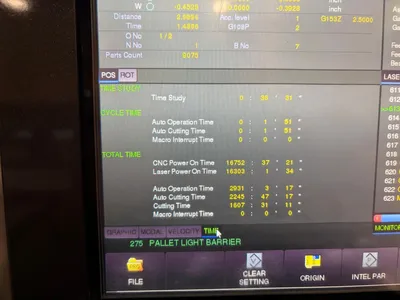

2017 MAZAK OPTIPLEX II 3000 WATT FIBER LASER

Axis processing movement Stationary table with X-Y-Z Movement
(Flying Optics)
Design Bridge Gantry Style
Axis Drive System X1/X2 - Y Helical rack & pinion
Axis Travel X-Y-Z 122.046" x 62.20"x5.91"
Positional accuracy X-Y +/- 0.002"/19.68"
Positional accuracy Z +/-0.0004"/3.94"
Repeatability X-Y-Z +/-0.0012"
Axis acceleration X-Y-Z X-Y 0.6G, Z 0.6G
Rapid traverse rate X-Y 2,362 linear ipm linear
(3,340 ipm 45° vector)
Axis Drive System Z Digital Servo Drive, Ball screw
Position System Encoder - Semi-closed loop
Positional accuracy Z +/-0.0004"/3.94"
Rapid traverse rate Z 2,362 ipm
Z axis to table clearance 5.91"
Z Axis Profiler Non-contact type/ Capacitance
