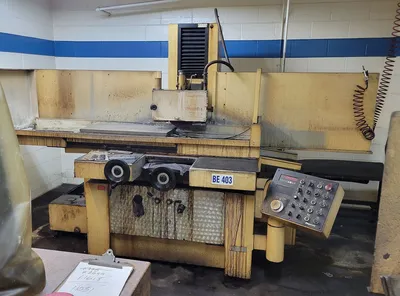

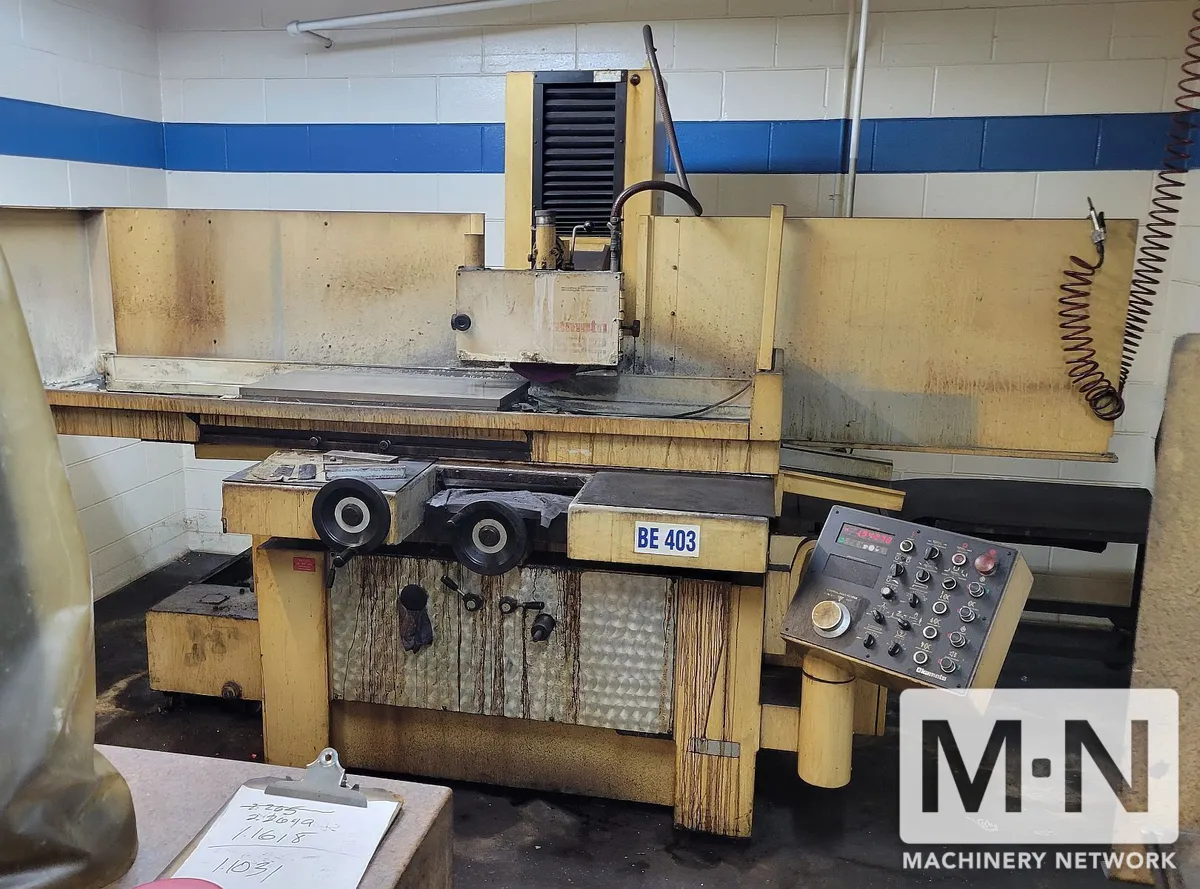

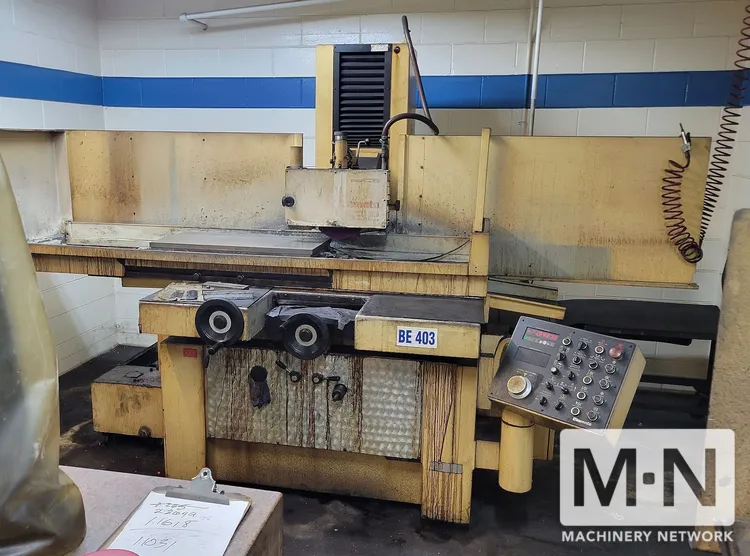

Okamoto ACC-1632DX Surface Grinder

Sell Your OKAMOTO ACC-1632DX
+ 1 (818) 465-6700
info@machinerynetwork.com
ConditionUsed
1 available
Sell Your OKAMOTO ACC-1632DX

Overview

Type:
GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)
Manufacturer:
OKAMOTO
Model:
ACC-1632DX
Stock #:
52219
Status:
For Sale
Table size16" x 32"16" x 32"
Table travel - longitudinal38"38"
Table travel - cross18"18"
Distance - spindle center to table8" - 18"8" - 18"
Max table load1,540 lb698.5 kg
Longitudinal table speeds1 - 82 FPM1 - 82 FPM
Cross feed - manual, per grad.0.001"0.001"
Cross feed - manual, per rev.0.25"0.25"
Cross feed - automatic0.02 - 0.8 IPM0.02 - 0.8 IPM
Down feed - manual, per grad0.00001"0.00001"
Down feed - manual, per rev.0.1"0.1"
Down feed - auto incremental0.00005 - 0.0015"0.00005 - 0.0015"
Power rapid elevation16 IPM16 IPM
Power5 hp3.7 kW
Grinding wheel dimensions12" x 1.5" x 5" bore12" x 1.5" x 5" bore
Grinding wheel speed1800 RPM1800 RPM
Dimensions108" x 87" x 70"108" x 87" x 70"
Weight9,000 LBS9,000 LBS

"DX" programmable electronic auto incremental downfeed
- Servo driven downfeed
- Auto incremental downfeed for both surface and plunge operations
- Dual rate auto downfeed with coarse & fine selections
- Digital display for vertical axis
- Sparkout passes (0 - 5) w/auto table park at end of grinding cycle
- Electronic handwheel for manual vertical movement with each grad. equivalent to .00001", .0001" or .001"
- Power rapid wheel positioning
16" x 32" Electro-magnetic chuck
Over the wheel dresser
Coolant system
