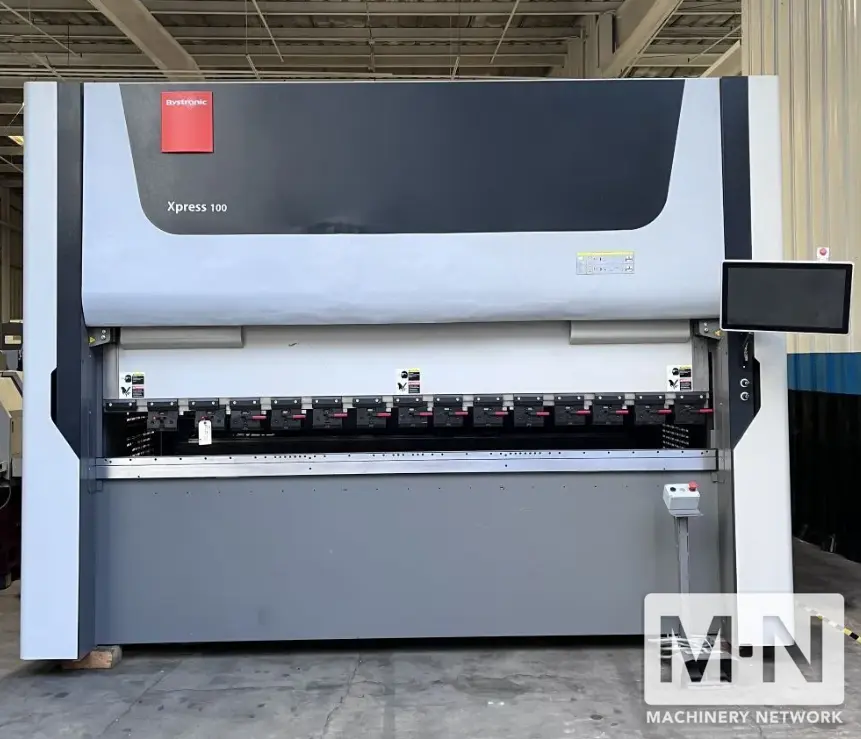

BYSTRONIC XPRESS 100/3100 CNC Press Brake, 2022

Capacity: 100 Ton
Maximum Bending Length: 122.04″
Distance Between Side Frames: 124.01″
Length of Stroke: 9.84″
Open Height: 21.65″
Max Back Gauge Range X-Axis: 31.49″
X-Axis Travel: 19.68″
X-Axis Speed: 15.74” Per Second
R-Axis Travel: 3.93”
R-Axis Speed: 3.93” Per Second
Z-Axis Travel: 90.55”
Z-Axis Speed: 23.62” Per Second
Y-Approach Speed (up to): 5.90” Per Second
Y-Working Speed (up to): 0.39” Per Second

General:
Power Source: AC 480 V, Three Phase, 60 Hz
Power Requirement: 11 KW
Overall Dimensions: 147.2″ X 72.83″ x 110.23″ High
Weight : 17,637 lbs. Approx
